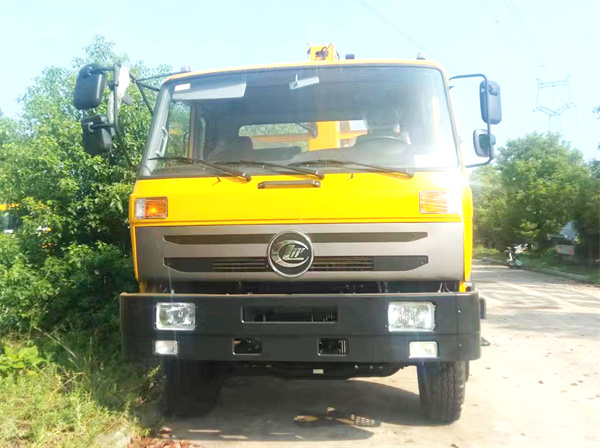

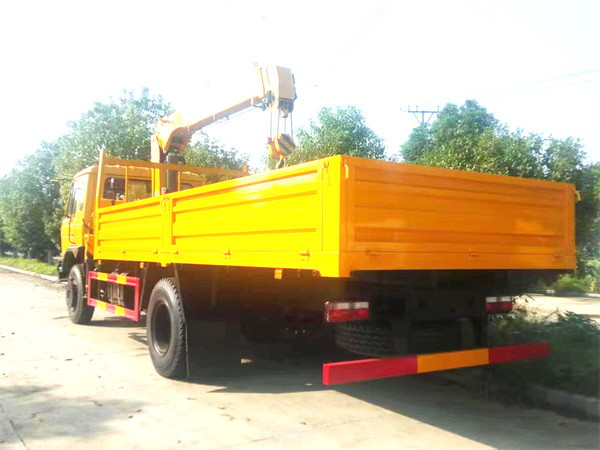

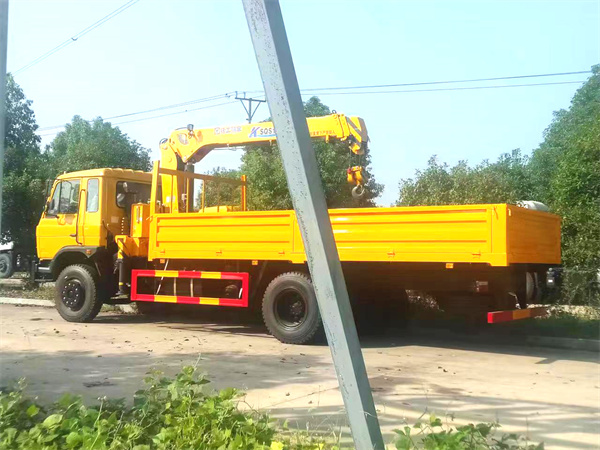

Dongfeng boom crane trucks-mounted crane-truck with crane 6.3~10 tons

Hydraulic arm crane for trucks is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

Dongfeng boom crane trucks-mounted crane-truck with crane 6.3~10 tons

Model: CLW5180

Curb weight: 12060Kg

Overall dimension: 9000*2550*3850mm

Dongfeng truck crane dfl1160bx Chassis Configuration: Dongfeng D9 4x2 chassis EQ1165, row half cab with left/right hand drive optional and A/C,3950~4500mm wheelbase,165~230HP Engine,6~8 speed gearbox with manual,front brige 3.9~4.5T/ rear brige 8~10T, tire 10.00R20..

8 ton truck crane Top Configuration:

1. Crane car: Equipped with 6.3~10 tons 3~4 section straight arm crane, 4.3~5m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. 10 ton crane truck:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. Crane lifting equipment truck crane: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

Cargo crane truck Optional Configuration: 1. 6.3~10 tons folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Engine lifter crane Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Truck with high up crane Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Lorry crane truckStraight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Loader with crane boom Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Fixed crane Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Remote control truck crane Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional truck-mounted crane manufacturer and can produce all kinds of dump truck mounted crane. You can customize 10 ton truck crane in korea, we can satisfy all your requirements of cargo truck 10tons straight mounted crane truck.Please feel free to contact me If you have any questions about truck crane 10 ton and want to have crane truck 10 t price (see left contact information).
