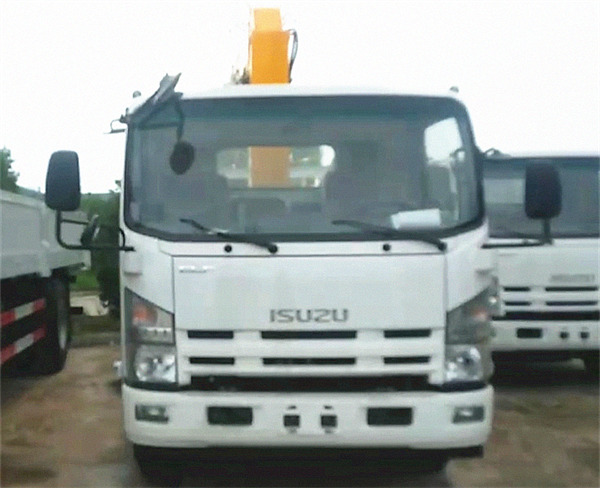

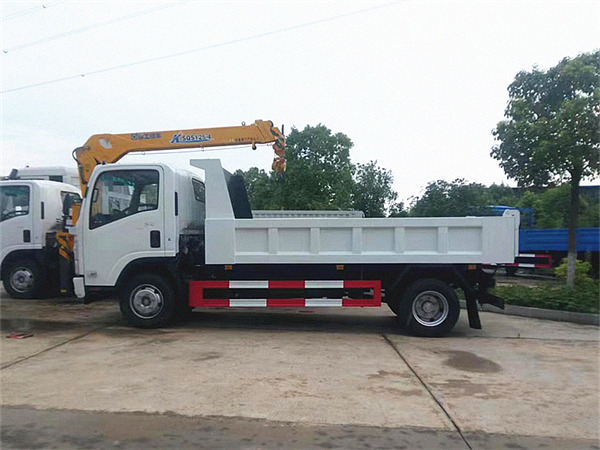

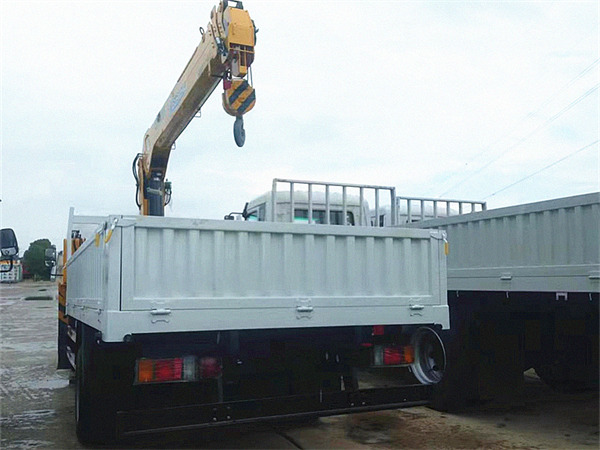

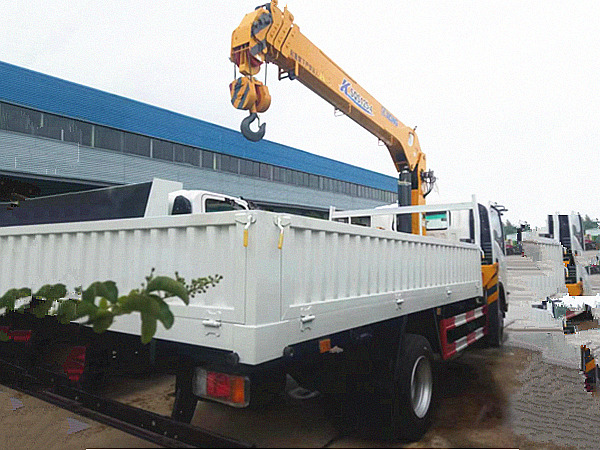

ISUZU 3.2ton crane truck-mini truck mounted crane-japanese crane machine

Rotate tightener truck crane is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

ISUZU 3.2ton crane truck-mini truck mounted crane-japanese crane machine

Model: CLW5040

Curb weight: 7030Kg

Overall dimension: 5995*2200*2965mm

Isuzu truck Chassis Configuration: ISUZU 4x2 chassis QL1040,single row cab with left/right hand drive optional and A/C,3.36m wheelbase,98HP Engine,5-speed gearbox with manual,front brige 2~2.5T/ rear brige 3~4.8T, 7.00R16 tire.

Isuzu track with crane Top Configuration:

1. supported car crane: Equipped with 3.2~5 ton 2~3 section straight arm crane, 3.2m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. haoy truck crane:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. crane with wheels: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

3 ton crane truck Optional Configuration: 1. 3.2~5 ton folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Crane lorry Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Crane boom for truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Car loader cranes Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Auto crane truck crane Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Mobile truck cranes Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Mini truck crane Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional chinese crane truck manufacturer and can produce all kinds of truck tipper with crane.You can customize wireless remote control truck crane, we can satisfy all your requirements of garbage tipper with crane dump truck for sale.Please feel free to contact me If you have any questions about wheel truck bed crane and want to have mini crane lifting price (see left contact information).
