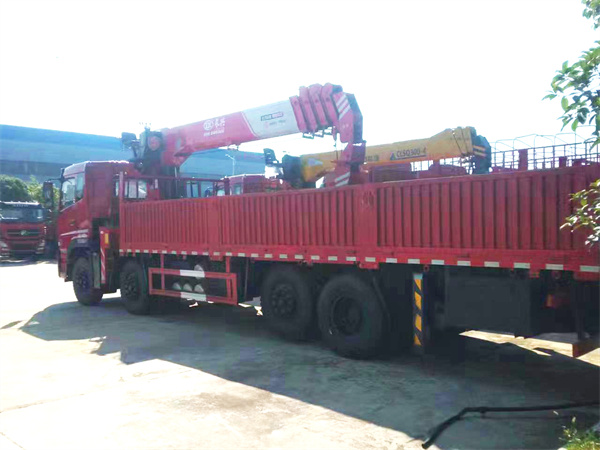

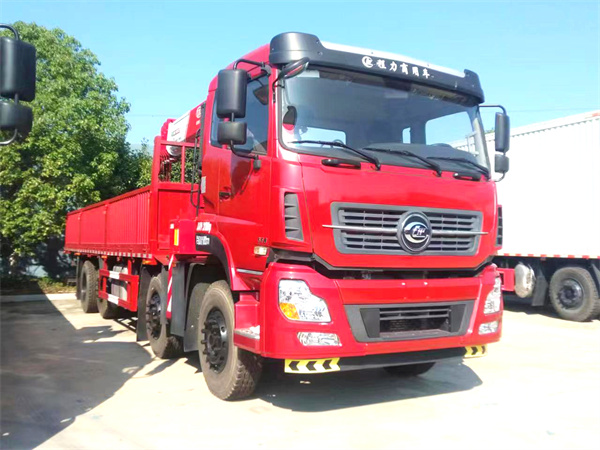

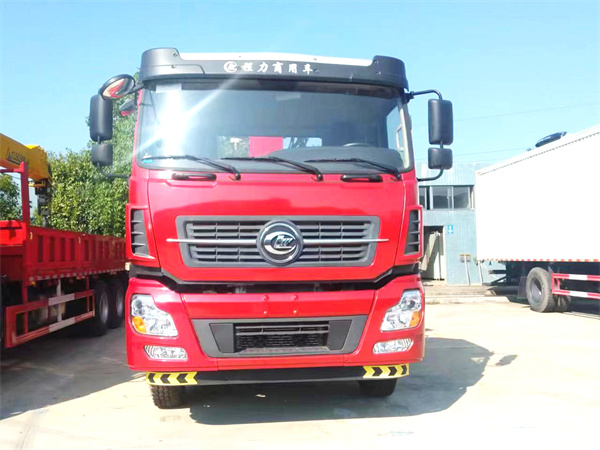

Dongfeng boom crane trucks-truck crane-crane mounted truck 10~20 tons

Car lifting crane is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

Dongfeng boom crane trucks-truck crane-crane mounted truck 10~20 tons

Model: CLW5315

Curb weight: 19600Kg

Overall dimension: 12000*2550*3990mm

16 ton truck crane Chassis Configuration: Dongfeng 8x4 chassis EQ1312, row half cab with left/right hand drive optional and A/C,2100+4400+1350mm wheelbase,350HP Engine,12 speed gearbox with manual,front brige 7T*2/ rear brige 13T*2, tire 12.00R20.

15 ton truck crane Top Configuration:

1.Engine crane long ram: Equipped with 10~20 tons 4~6 section straight arm crane, 8.3~8.5m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. 20 ton truck crane:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3.Roll on roll off truck with crane: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

20 ton hydraulic truck crane Optional Configuration: 1. 10~20 tons folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Vehicle mount crane Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Tipper truck crane Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Truck bed crane Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

35000lb hydraulic truck mounted crane Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Crane for car Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

12 ton truck crane Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional dumper with crane manufacturer and can produce all kinds of machine crane truck. You can customize remote operated truck crane, we can satisfy all your requirements of crane truck with dumper.Please feel free to contact me If you have any questions about service truck body with crane and want to have truck crane 15 ton price (see left contact information).
