FAW Boom Crane Truck-truck crane-crane mounted truck 6.3~10 tons

Crane truck is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

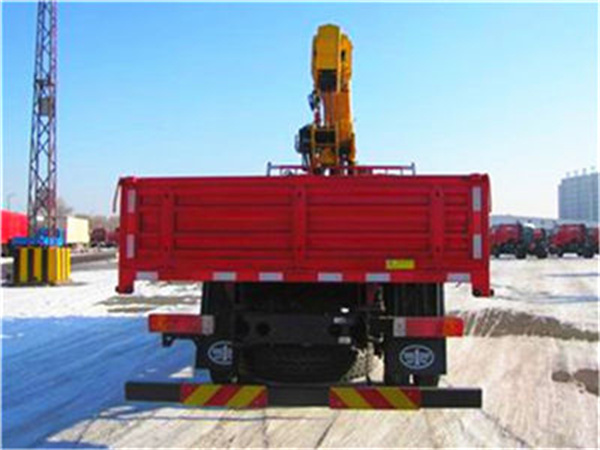

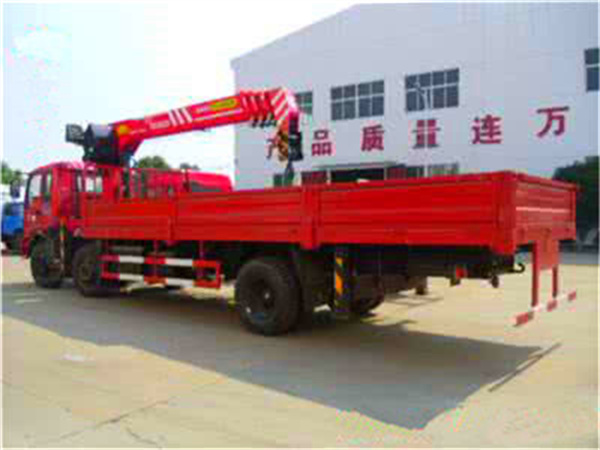

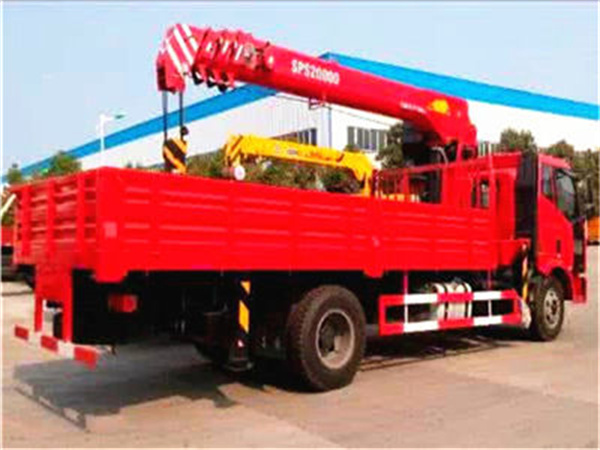

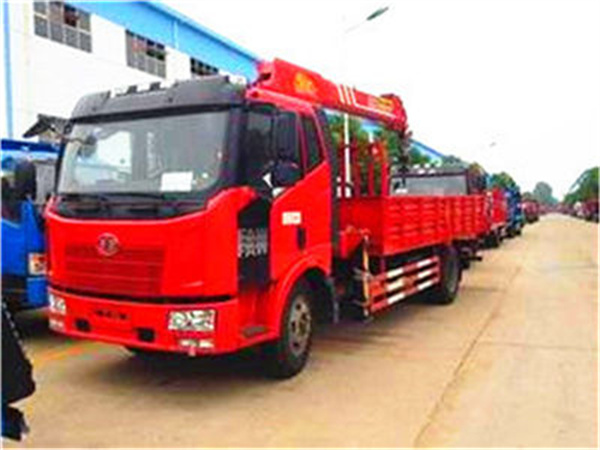

FAW Boom Crane Truck-truck crane-crane mounted truck 6.3~10 tons

Model: CLW5184

Curb weight: 12000Kg

Overall dimension: 9000*2550*3850mm

Knuckle boom crane truck mounted Chassis Configuration: FAW 4x2 chassis CA1180, row half cab with left/right hand drive optional and A/C, 4500mm wheelbase,180HP Engine,6 speed gearbox with manual, front brige 5T/ rear brige 11T, tire 825R16.

Dump truck with crane Top Configuration:

1. Rc crane truck: Equipped with 6.3~10 tons 3~4 section straight arm crane, 4.3~5m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. Car engine crane:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. 10 ton truck mounted crane: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

Car crane Optional Configuration: 1. 6.3~10 tons folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Boom truck mounted crane Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Dump truck crane Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Boom arm crane truck Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Crane truck for sale Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Truck chassis and crane Length of cargo box:  2.6M~13M

Crane for truck  brand:XCMG,CLW,Stone coal and etc.

Service truck cranes Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional truck mounted log crane manufacturer and can produce all kinds of national crane truck. You can customize knuckle boom crane truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have boom crane truck price(see left contact information).
