Dongfeng Boom Crane Truck-truck crane-truck mounted crane 6.3~10 tons

Knuckle boom crane truck mounted is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

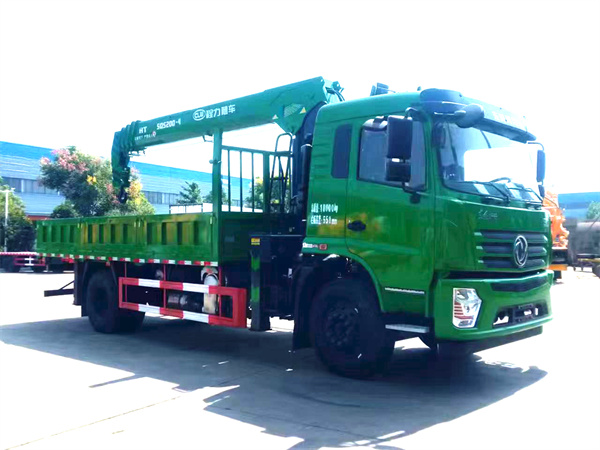

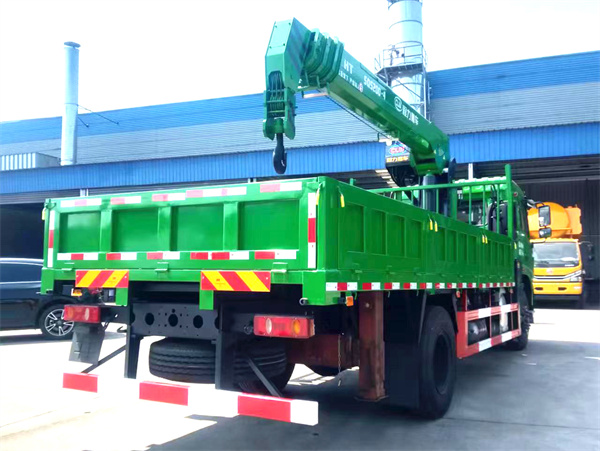

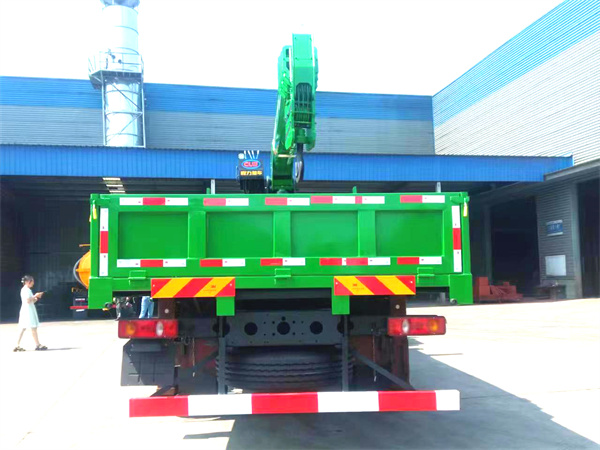

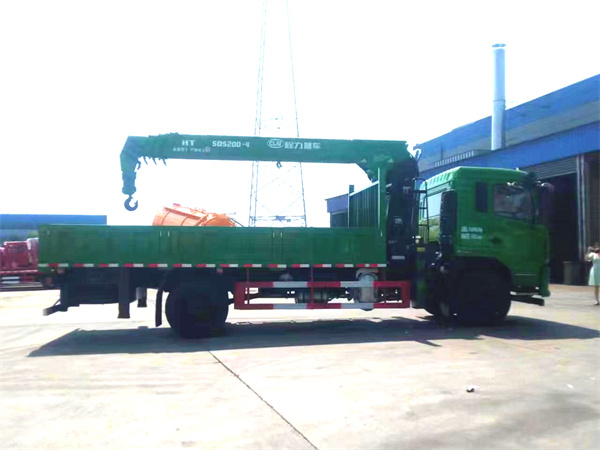

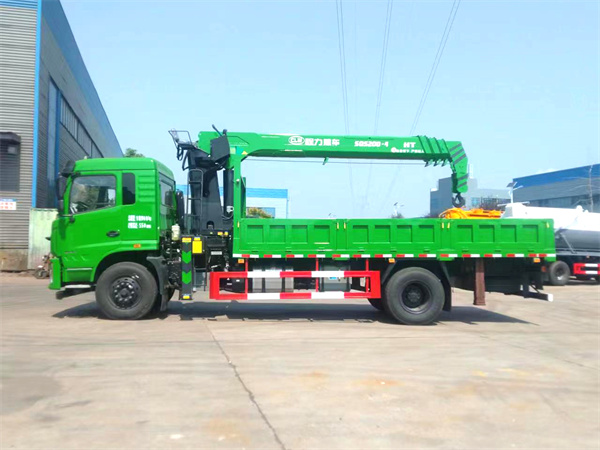

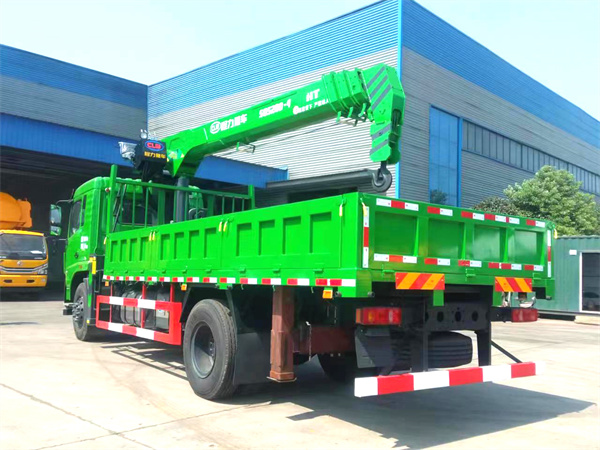

Dongfeng Boom Crane Truck-truck crane-truck mounted crane 6.3~10 tons

Model: CLW5181

Curb weight: 12060Kg

Overall dimension: 9000*2550*3850mm

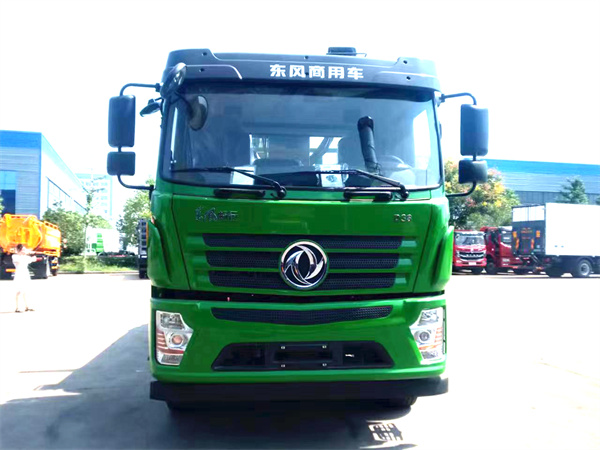

Dongfeng truck Chassis Configuration: Dongfeng 4x2 chassis DFH1180, row half cab with left/right hand drive optional and A/C, 4500mm wheelbase,190HP Engine,6 speed gearbox with manual, front brige 6T/ rear brige 10T, tire 10.00R20.

Knuckle boom crane truck mounted Top Configuration:

1. Right hand drive crane truck: Equipped with 6.3~10 tons 3~4 section straight arm crane, 4.3~5m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. Cummins crane engine:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. Crane truck telescopic boom: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

Boom arm crane truck Optional Configuration: 1. 6.3~10 tons folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Truck mounted crane knuckle boom Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Telescopic boom crane for trucks Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Boom arm crane truck Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

XCMG truck crane Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

360 degree rotation truck crane Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Dongfeng truck crane Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional heavy duty hydraulic truck crane manufacturer and can produce all kinds of left hand drive truck crane. You can customize knuckle boom crane control remote for trucks, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have dongfeng truck crane dfl price (see left contact information).
