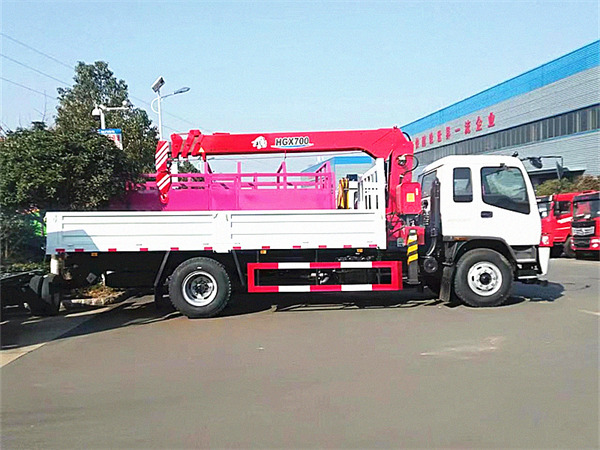

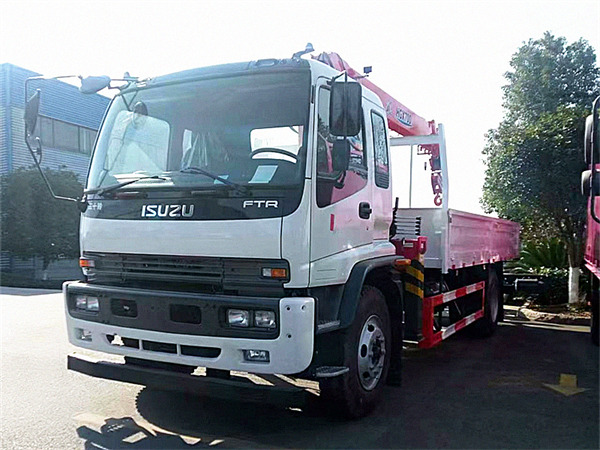

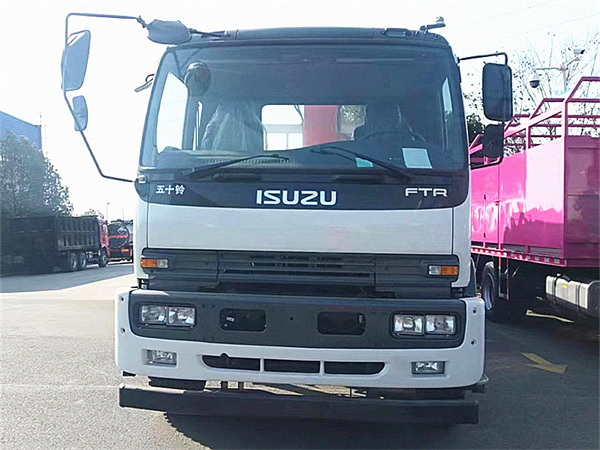

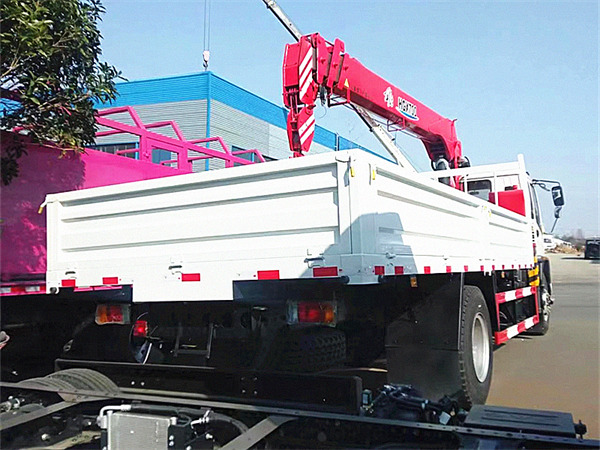

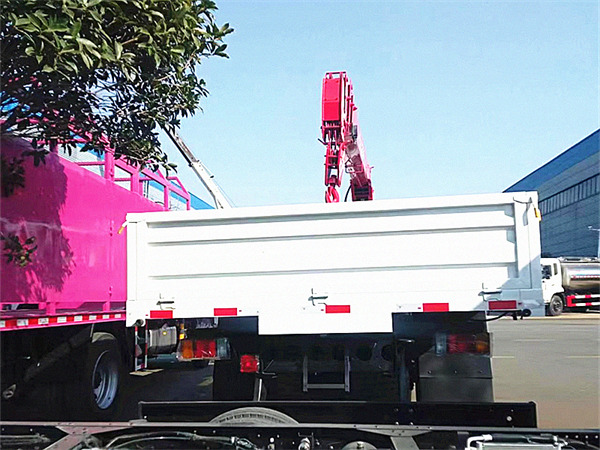

ISUZU crane truck-10 ton crane japon-crane tipper truck crane truck

Dump crane truck is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

ISUZU crane truck-10 ton crane japon-crane tipper truck crane truck

Model: CLW5181

Curb weight: 11280Kg

Overall dimension: 9000*2530*3700mm

Isuzu truck japan Chassis Configuration: ISUZU 4x2 chassis QL1180,row half cab with left/right hand drive optional and A/C,4500mm wheelbase,Isuzu 205HP Engine,6 speed gearbox with manual,front brige 6.3T/ rear brige 13T, tire 1100R20.

truck mounted crane 6 ton truck mounted crane Top Configuration:

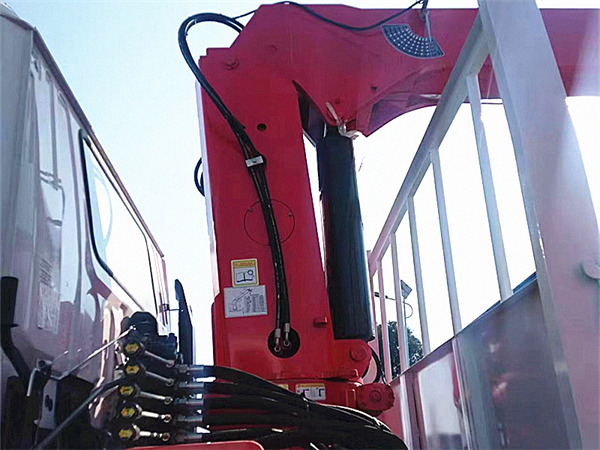

1. engine crane hoist lift: Equipped with 6.3~10 ton 3~4 section straight arm crane, 5~6m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2.engine crane 8ton:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. crane wireless remote control radio truck cranes: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

8 ton mobile truck crane Optional Configuration: 1. 6.3~10 ton folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Cargo truck with crane Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Supplihers crane truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

The crane truck Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Vehicle mounted jib crane Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Utilty crane trucks Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Crane truck 10ton Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional wireless remote control truck crane manufacturer and can produce all kinds of truck mounted hydraulic crane.You can customize 7 ton truck with crane, we can satisfy all your requirements of truck mounted crane 8 ton.Please feel free to contact me If you have any questions about truck crane remote and want to have truck crane 8 ton price(see left contact information).
