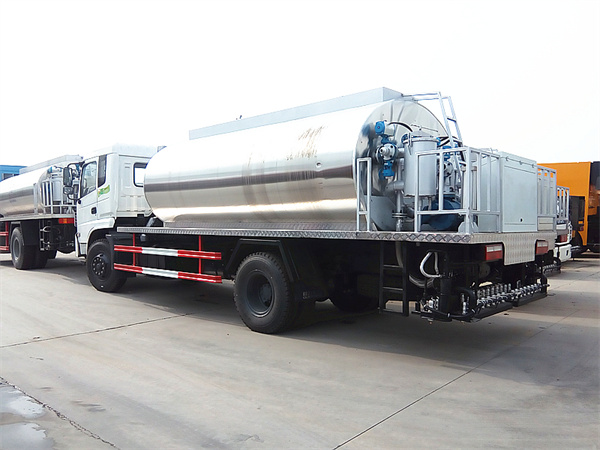

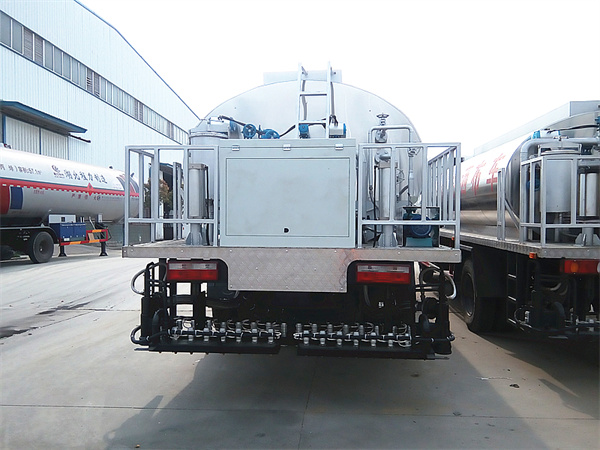

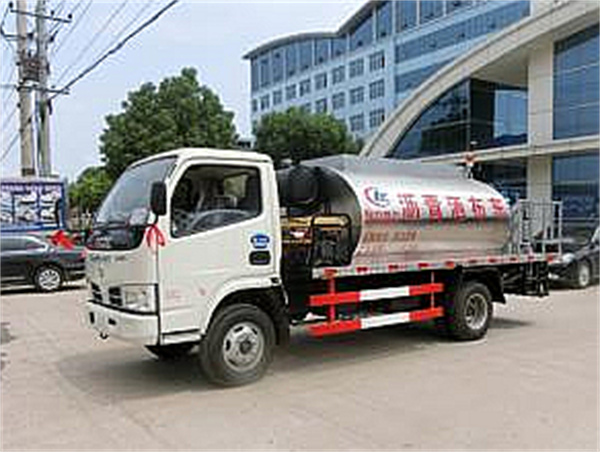

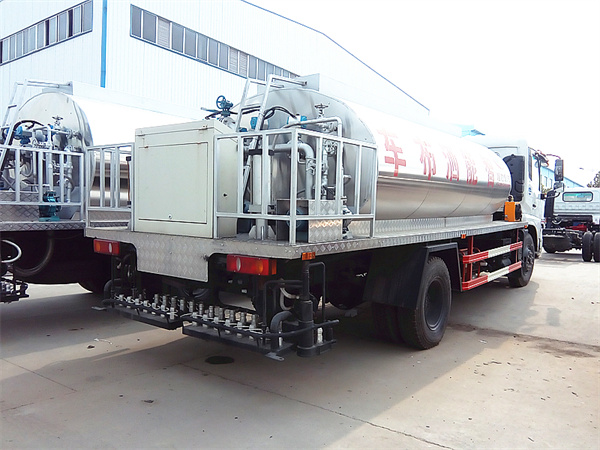

Dongfeng 4000 liters asphalt distributor truck

Asphalt primer truck is a kind of pavement construction machinery, asphalt bitumen distributor truck is the main equipment of highway, city roads, airports and ports construction.Our Intellectualized Asphalt Distribution Truck is used for spraying asphalt on the prime coat, the water-proof layer and tack coat in high-graded road construction.Asphalt pothole repair truck also can be used for bituminous pavement with the construction techniques of spreading in layers. It can spray hot asphalt, emulsified asphalt, modified asphalt and etc.

Dongfeng 4000 liters asphalt distributor truck

Model: CLW5070

Curb weight: 5150Kg

Overall dimension:   6300*2080*2400mm

Dongfeng asphalt distributor truck Chassis Configuration: Dongfeng 4x2 chassis EQ1075,single row cab with left/right hand drive optional and A/C,3.3m wheelbase,Yuchai 140HP Engine,5-speed gearbox with manual,front brige 2T/ rear brige 4T, 7.00R16 tire.

Buy asphalt distributor truck Top Configuration:

1.asphalt sprayer truck Tank valume:3~4T; ellipse asphalt tanker with 50mm thickness insulating layer.

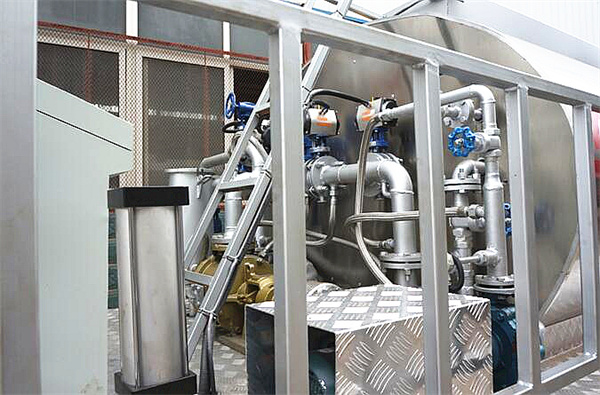

2.asphalt mixer truck Equipped with Asphalt tank,Asphalt pump,Hydraulic drive motor,Hydraulic pump,Hydraulic system,Spraying system,Heating system,Burner,Heat conduction oil pump,Pneumatic circuit,Auto control system and Operation panel etc..

Asphalt truck Optional Configuration:

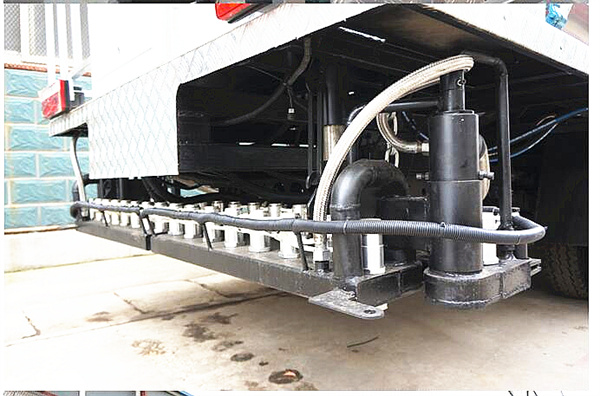

1. concrete standard asphalt or porous asphalt truck Standard Configuration: ①. Asphalt pump model: QGB950 (high viscosity asphalt pump, 950L/minute); ②. Asphalt pump hydraulic drive motor model 05-110 - BD31;  ③. Hydraulic pump model: CBQ563 - L;  ④. hydraulic system adopts Shanxi Yuci; Control mode: manual control one-control-two;  ⑤. Sprinkle width 4.5-6m; 48 asphalt intelligent nozzle;  ⑥. Heating method: heat conduction oil automatic temperature;  ⑦. Burner: Italian imported G20;  ⑧. Heat conduction oil pump: 40-25-160 (domestic)

2. buy asphalt distributor truck Intelligent configuration (domestic): ①. Asphalt pump model: QGB950 (high viscosity asphalt pump);  ②. Asphalt pump hydraulic drive motor model 05-130 - BD31; Hydraulic pump: CBQ563 -l; Hydraulic system: proportional valve (Taiwan EFBG - 03-160 - HF); Hydraulic system: Shanxi Yuci(reversing valve and relief valve); Radiator: Nison brand.  ③. Control mode: control system (German Siemens CLW-48-01), Computer intellectual control, 1 control 1;  ④. Sprinkle width 4.5-6m; 30~39 pcs asphalt intelligent nozzle;  ⑤. Heating method: heat conduction oil automatic temperature; Burner: G20 (Italy). Heat conduction oil pump adopts HeBei domestic,  ⑥. Gasoline engine: 5.5 kw.

3. mini asphalt truck Intelligent configuration (import): ①. Asphalt pump: Belgian TGGP - 185-125;  ②. Asphalt pump hydraulic drive motor model 05-90-BD31; Hydraulic pump: Germany rexroth; Hydraulic system:Taiwan proportional valve; Hydraulic system: Shanxi Yuci (reversing valve and relief valve); Radiator:Nison brand.  ③. Control mode: control system (German Siemens CLW-48-01); computer intellectual control, 1 control 1;  ④. Sprinkle width 4.5-6m; 30-39 pcs intelligent asphalt nozzle;

⑤. Hheating method:heat conduction oil automatic temperature;  Burner: G10 (Italy).  Heat conduction oil pump: HeBei domestic; ⑥. Gasoline engine: Honda 5.5 kw.

Asphalt mixing truck Series produced by our factory:Asphalt distribution truck, Road maintenance Truck, Macadam synchronous sealing layer truck and Slurry sealing layer truck.

Truck for asphalt road optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Asphalt distributor trucks cheap price Agitation tank capacity: 3-14 CBM

Asphalt spreader truck Advantage is that a person can be done indoors of Intelligent Asphalt Distribution Truck, operation is simple, you only need set up distributing parameter on the control panel,and then you can begin the work.

We are a professional asphalt road truck manufacturers and can produce all kinds of asphalt road repair truck .You can customize truck with asphalt box, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have asphalt distributor truck price(see left contact information).
