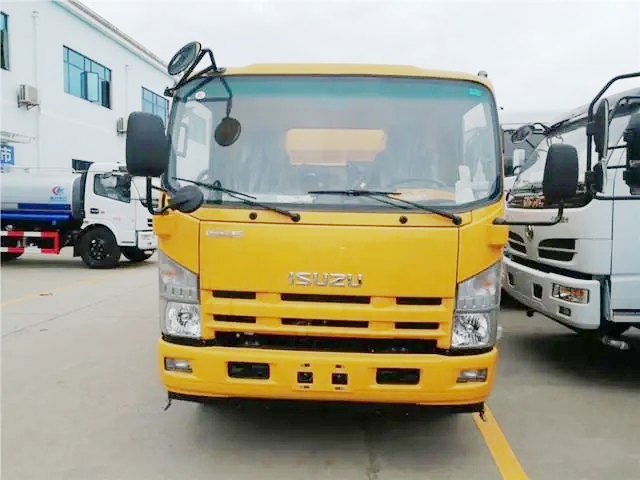

ISUZU Boom Crane Trucks-truck crane-truck mounted crane 6.3~8 tons

Boom Crane Truck is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

ISUZU Boom Crane Trucks-truck crane-truck mounted crane 6.3~8 tons

Model: CLW5080

Curb weight: 4990Kg

Overall dimension: 7030*2400*3200mm

Isuzu knuckle boom crane truck mounted Chassis Configuration: Isuzu 4x2 chassis QL1110, single row with left/right hand drive optional and A/C,3.815m wheelbase,190/205HP Engine,6-speed gearbox with manual, front bridge 4T/ rear bridge 7T, 235/75R17.5/825R20 tire.

Knuckle boom crane truck Top Configuration:

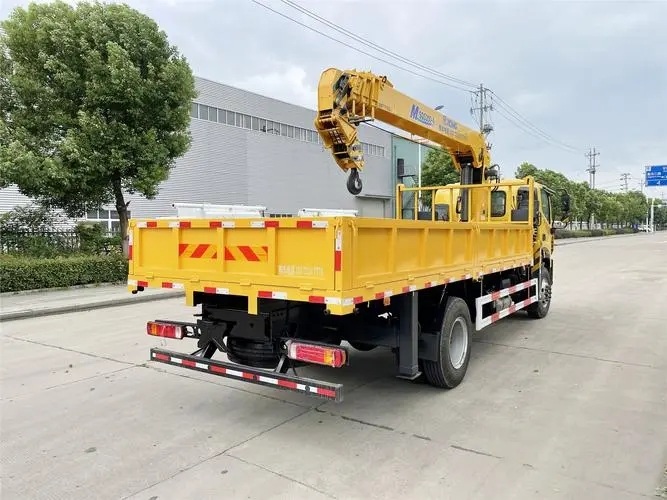

1. Crane truck telescopic boom: Equipped with 6.3~8 ton 3~4 section straight arm crane, 4.3m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. Boom arm crane truck:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. X cmg truck-mounted crane: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

Truck mounted crane knuckle boom Optional Configuration: 1. 6.3~8 ton folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Telescopic boom crane for trucks Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Knuckle boom crane control remote for trucks Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

360 degree rotation truck crane Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Left hand drive truck crane Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Xc mg truck crane Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Right hand drive crane truck Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional china truck manufacturer and can produce all kinds of Boom Crane Truck.You can customize truck mounted crane folded, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have folding arm crane trucks price and cheap foldable engine crane(see left contact information).
