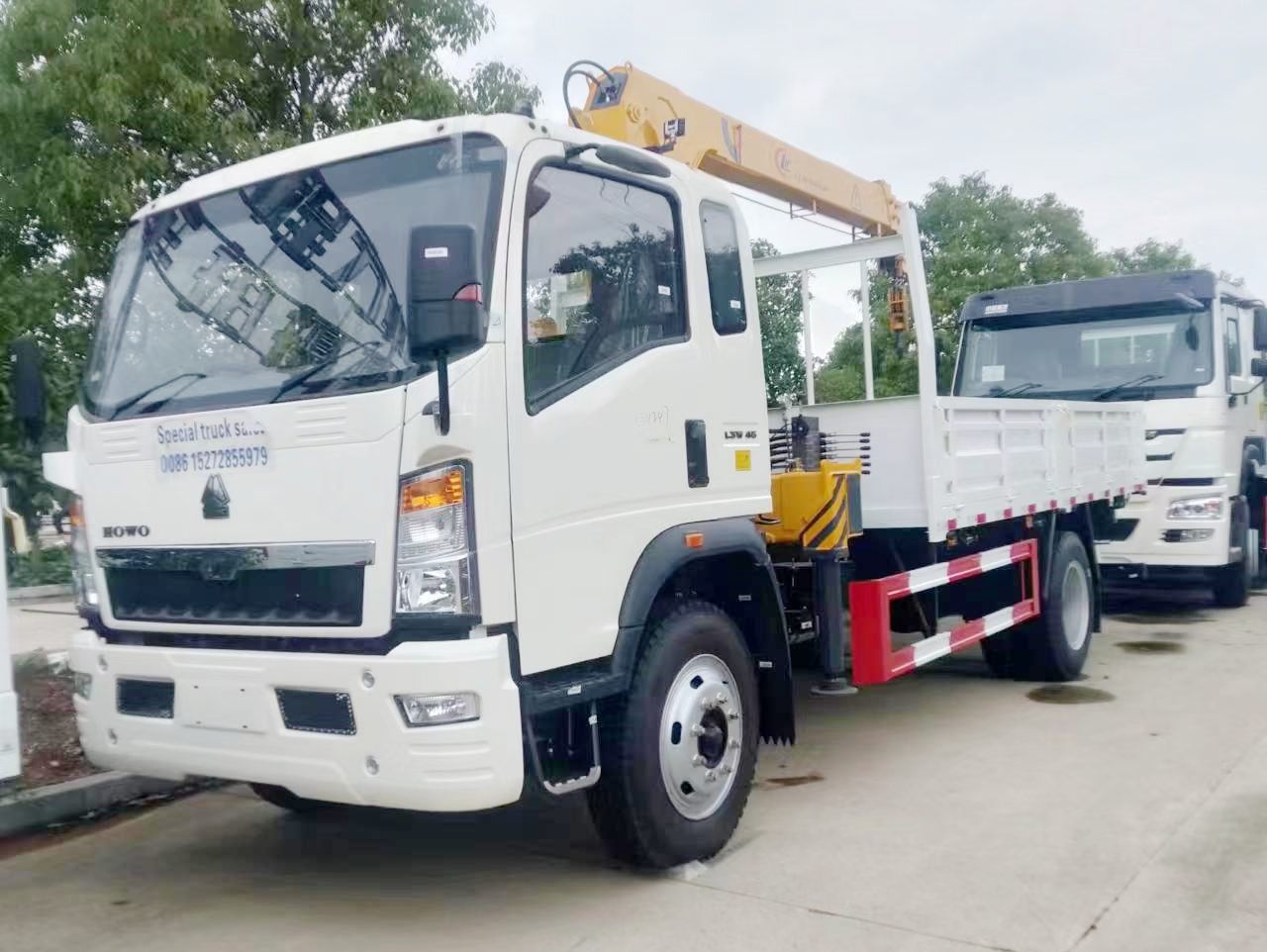

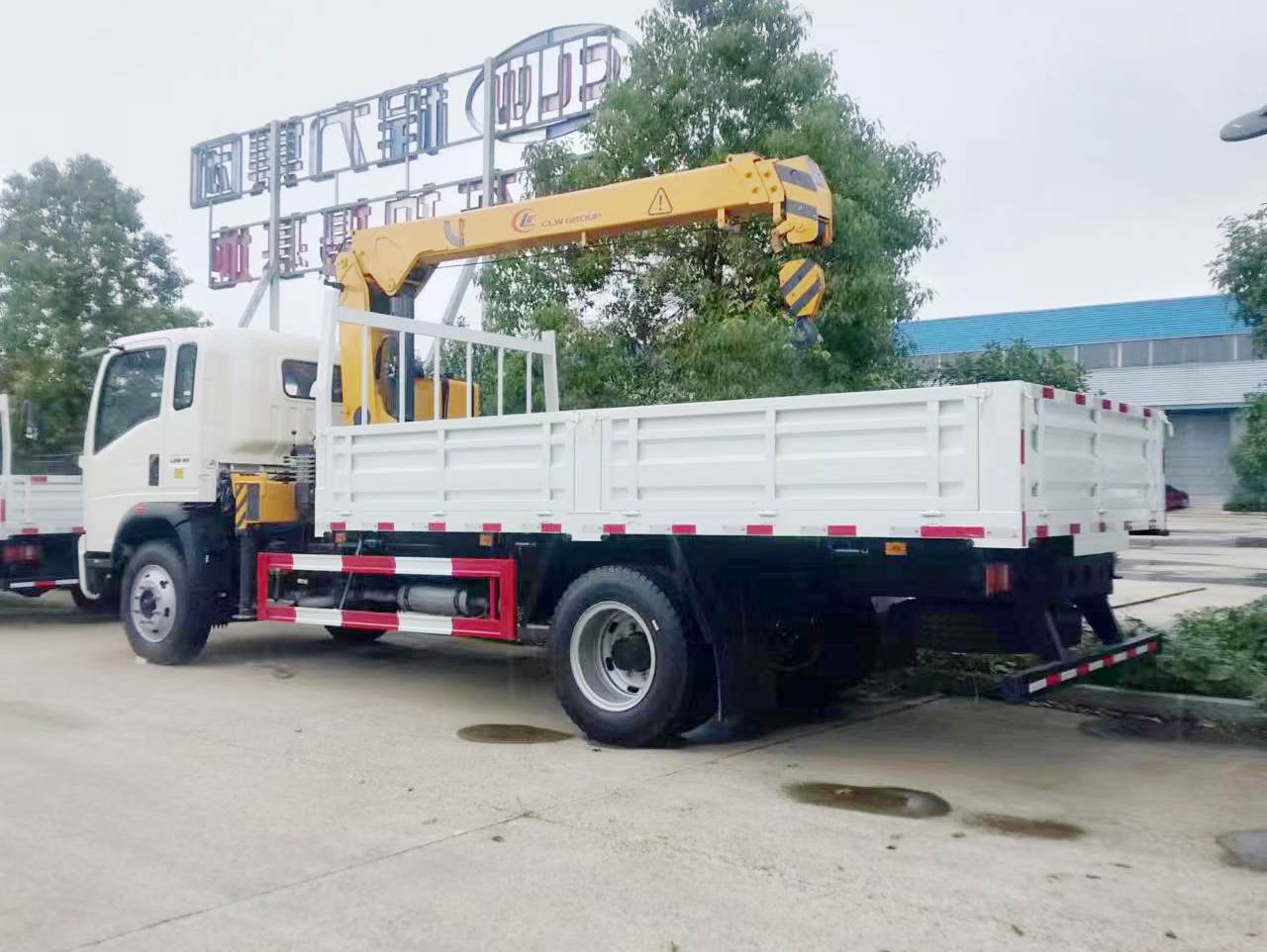

HOWO Boom Crane Truck-truck crane-crane mounted truck 6.3~10 tons

Knuckle boom crane truck mounted is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

HOWO Boom Crane Truck-truck crane-crane mounted truck 6.3~10 tons

Model: CLW5189

Curb weight: 12090Kg

Overall dimension: 9000*2550*3850mm

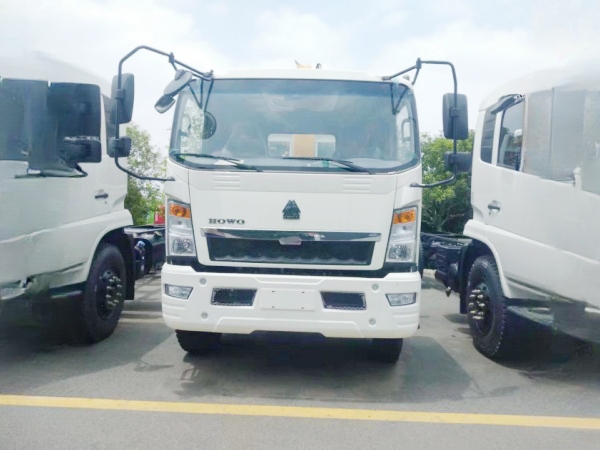

Sinotruk HOWO knuckle boom crane truck mounted Chassis Configuration: Sinotruk HOWO 4x2 chassis ZZ1187, row half cab with left/right hand drive optional and A/C,4.5m wheelbase,154/168HP Engine,6-speed gearbox with manual, front bridge 2.7~3.2T/ rear bridge 7.2~8T, 8.25R20/8.25R20 tire.

Crane truck telescopic boom Top Configuration:

1. Right hand drive crane truck: Equipped with 6.3~10 ton 3~4 section straight arm crane, 4.3~5m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

2. Boom arm crane truck:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

3. Truck mounted crane knuckle boom: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

Truck mounted crane knuckle boom Optional Configuration: 1. 6.3~10 ton folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Xc mg truck crane Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

X cmg truck-mounted crane Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Boom arm crane truck Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Telescopic boom crane for trucks Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

360 degree rotation truck crane Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Left hand drive truck crane Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional china truck crane manufacturer and can produce all kinds of Heavy duty hydraulic truck crane. You can customize crane trucks, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have truck mounted crane price and cheap crane mounted truck(see left contact information).
