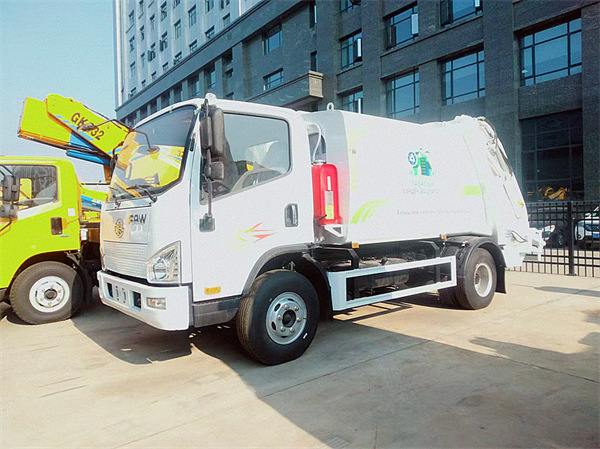

FAW garbage truck small garbage truck 6m3 mini compactor garbage truck

Garbage truck is also called garbage collecting truck, garbage transport truck. Garbage truck tank is mainly used for the sanitation department of municipal and large-scale factories and mines.7cbm waste collection compactor garbage body truck can transport a variety of garbages and bulk building materials(such as:ash , sand , stone and soil), ore and coal in mines and coal mine.Garbage truck 5 ton is especially suitable for transport household garbage in residential area.

FAW garbage truck-small garbage truck 6m3-mini compactor garbage truck

Model: CLW5070

Curb weight: 5800Kg

Overall dimension: 6590*2050*2570mm

Faw garbage truck new Chassis Configuration: FAW 4x2 chassis, row half cab with left/right hand drive optional and A/C, 3300mm wheelbase,130HP Engine,6 speed gearbox with manual,front brige 2.8T/ rear brige 6T, tire 7.00Ｒ16.

5 cubic meter garbage truck Top Configuration:

1.4x4 garbage truck Dustbin volume:4~8cbm, it is made of carbon steel plate.

2.4 ton compactor garbage truckEquipped with front push back pressure,vice press plate,sewage box, electric control operation.Compressed dustbin is couplet body type,external power source work,overturn feedstock, compression push board in dustbin, rear lock door and tipping bucket, hydraulic electric system and etc.

3.mini garbage truck in nigeria adopt machine,electricity,liquid linkage control system, computer control and manual operation system, realize rubbish into,crush or press flat through loading device and push shovel,and then squeeze garbage into the dustbin,compaction and push unloading.

4.4 ton garbage truck is constructed with 12# low alloy steel and 5mm,4mm,10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed .All the waste water can go directly into the sewage tank,so as not to corrode the body and the chassis.Morever,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.The garbage tank compacts the waste by a hydraulically powered mechanism,which employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall.

5.6 wheeler garbage compactor trucks Equipped with two sets of hydraulic operation systems.Types of collect garbage: barrel collecting,bucket collecting,box collecting.

Mini garbage compactor Optional Configuration: 1.Rear turnover mechanism; 2.Back swing arm mechanism; 3.Hopper; 4.Side compression with draw bar hoisting mechanism,rear hydraulic door,with compression function in dustbin; 5.Compressor;6.Rear cover.

Waste disposal truck Series produced by our factory(garbage truck is divided into the following categories according to loading and unloading type): Garbage compactor truck, Hook arm garbage truck, Hanging bucket garbage truck, Sealed garbage truck, Swing arm garbage truck, Compactor and Docking garbage truck, Kitchen garbage collecting vehicle,mobile compression bin, Rubbish compressing station and so on.

Waste truck Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Waste collection truck Selective Capacities:3CBM~20 CBM.

4 2 small garbage truck Advantage is collection way of 8 cubic meter compactor garbage truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable.

We are a professional garbage truck 5cbm supplier and can produce all kinds of small trash can garbage transfer truck.You can customize 4m3 garbage truck compactor, we can satisfy all your requirements of 5ton garbage truck.Please feel free to contact me If you have any questions and want to have garbage collection mini truck price(see left contact information).
