Dongfeng truck-garbage compactor truck clw brand-16 ton garbage truck

Garbage disposal truck is also called garbage collecting truck, garbage transport truck. Recycling bin garbage truck is mainly used for the sanitation department of municipal and large-scale factories and mines.Rear load garbage truck sale can transport a variety of garbages and bulk building materials(such as:ash , sand , stone and soil), ore and coal in mines and coal mine.Rear load garbage truck sale is especially suitable for transport household garbage in residential area.

Dongfeng truck-garbage compactor truck clw brand-16 ton garbage truck

Model: CLW5180

Curb weight: 10300Kg

Overall dimension: 9250*2500*3120mm

Dong feng cummins garbage truck Chassis Configuration: Dongfeng Tianjin 4x2 chassis DFH1180, row half cab with left/right hand drive optional and A/C,4500mm wheelbase,190HP Engine,6 speed gearbox with manual,front brige 6T/ rear brige 10T, tire 10.00R20.

15 m3 garbage truck Top Configuration:

1.garbage truck in veitanm Dustbin volume:4~8cbm, it is made of carbon steel plate.

2.yuchai garbage truck Equipped with front push back pressure,vice press plate,sewage box, electric control operation.Compressed dustbin is couplet body type,external power source work,overturn feedstock, compression push board in dustbin, rear lock door and tipping bucket, hydraulic electric system and etc.

3.garbage collector truck in uganda selling point adopt machine,electricity,liquid linkage control system, computer control and manual operation system, realize rubbish into,crush or press flat through loading device and push shovel,and then squeeze garbage into the dustbin,compaction and push unloading.

4.12tn garbage compactor truck. is constructed with 12# low alloy steel and 5mm,4mm,10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed .All the waste water can go directly into the sewage tank,so as not to corrode the body and the chassis.Morever,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.The garbage tank compacts the waste by a hydraulically powered mechanism,which employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall.

5.garbage truck bed Equipped with two sets of hydraulic operation systems.Types of collect garbage: barrel collecting,bucket collecting,box collecting.

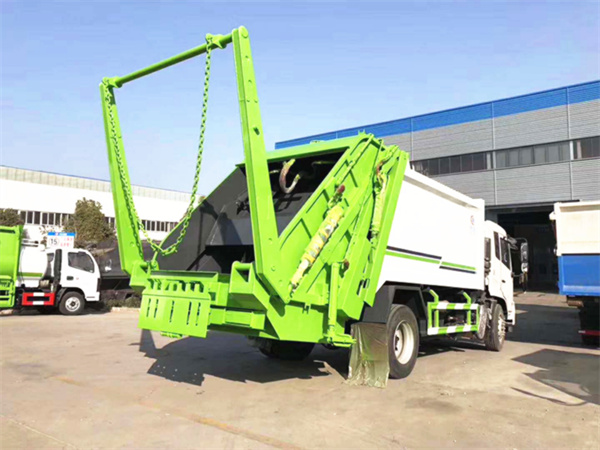

Garbage truck pictures Optional Configuration: 1.Rear turnover mechanism; 2.Back swing arm mechanism; 3.Hopper; 4.Side compression with draw bar hoisting mechanism,rear hydraulic door,with compression function in dustbin; 5.Compressor;6.Rear cover.

Diesel fuel garbage truck Series produced by our factory(garbage truck is divided into the following categories according to loading and unloading type): Garbage compactor truck, Hook arm garbage truck, Hanging bucket garbage truck, Sealed garbage truck, Swing arm garbage truck, Compactor and Docking garbage truck, Kitchen garbage collecting vehicle,mobile compression bin, Rubbish compressing station and so on.

Buy a garbage truck Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Black vehicle garbage bags car Selective Capacities:3CBM~20 CBM.

Rear loader 14cbm compressed garbage truck Advantage is collection way of 8 cubic meter compactor garbage truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable.

We are a professional garbage truck manufactuerer and can produce all kinds of china-garbage-truck.You can customize 12 cubic meters compactor garbage truck for sale, we can satisfy all your requirements of 12 cubic meter compactor garbage truck.Please feel free to contact me If you have any questions and want to have garbage compactor truck price(see left contact information).
