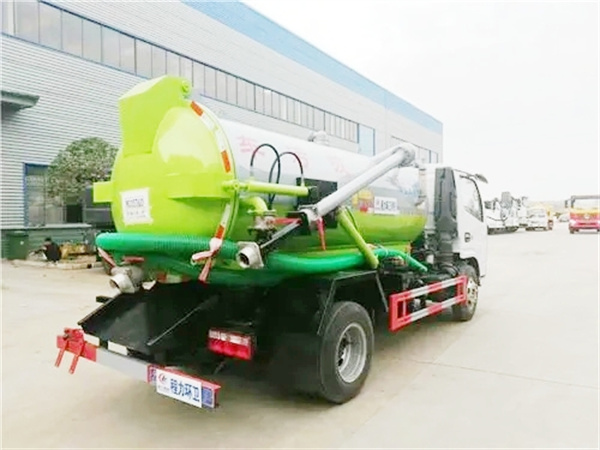

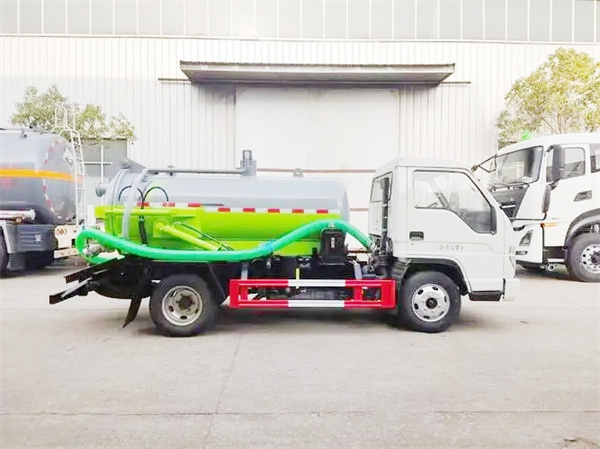

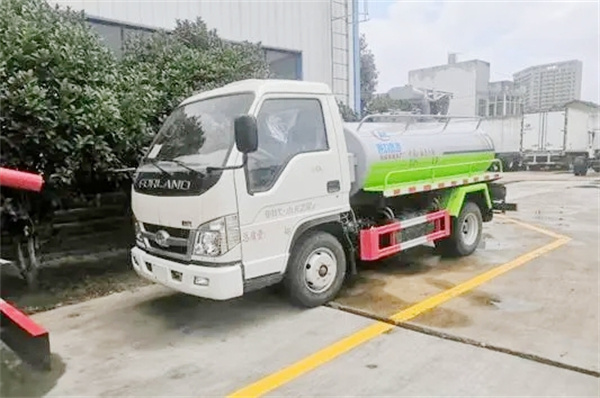

Foton sewage suction truck-3 cubic meter vacuum sewage suction truck

Sewage suction tanker truck is used for sucking fecal,sewage,mud,liquid mixed with tiny granules,sewer sediments(such as: silt, stones, bricks and other big objects) and urban water wells. Sewage sucking vehicle is widely used in large, medium and small towns sanitation, municipal, agricultural and chemical industry, factories and mines enterprises, property management community,especially apply to transport household waste in residential area.

Foton sewage suction truck-3 cubic meter vacuum sewage suction truck

Model: CLW5040

Curb weight: 2925Kg

Overall dimension: 5450*1980*2230mm

Foton sewage suction tanker truck Chassis Configuration: Foton 4x2 chassis BJ1030,flat cab with left/right hand drive optional and A/C.2.85m wheelbase,68~115HP Engine,5-speed gearbox, front brige 1.5T/ rear brige 2.5T,185R14 tire.

Sewage truck 3cbmTop Configuration:

1. sewage conbination truck Tank volume: 11~15m³, round tank is made by 5-6mm special steel plate

2. sewage disposal vehicle: Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise,Time for full suction<5min.),sewage pipes,self-draining valve,liquid level tube for view window, vacuum pressure gage,overflow valve, PTO,transmission shaft, moisture separator,oil-gas separator,multiple directional control valve,cleaning equipment, pipe network system, high quality hydraulic system and so on.

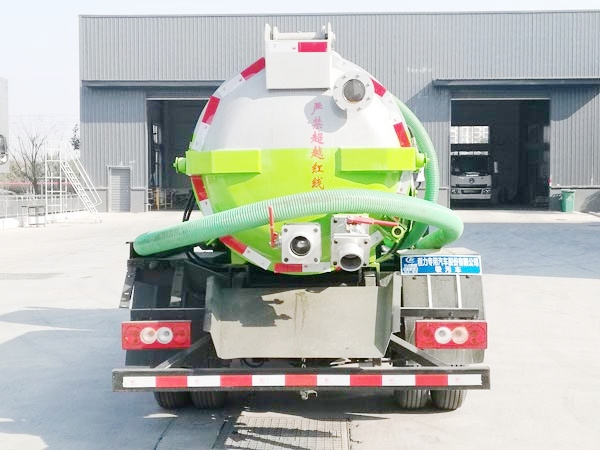

3. sewage conbination truck stailey steel tank can be lifted  up  45° by  double hydraulic cylinder, and the rear lid also can be opened, so the truck can dump the sewage directly through the rear lid out of the tank.

Small sewage trucks Optional Configuration: 1.The tank can be made by corrosion resistant plate or done professional anti-corrosion.2.We can use the brand of vacuum pump you specified..3.Cleaning function.

Chengli sewage truck Series produced by our factory: Sewage Suction Truck and Sewage Suction Cleaning Truck,Fecal  Suction Truck and Fecal  Suction Cleaning Truck.Sewage Trailer.

Sewage suction tanker truck for sale Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Sewage dump truck  Tank capacity: 3-20CBM

CLW sewage truck Advantage is Equipped with high efficiency pump and self-priming and self-draining system.

We are a professional sewage jet truck: manufacturer and can produce all kinds of dubai sewage trucks.You can customize man diesel sewage suction trucks, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have ssewage pumping car price (see left contact information).
