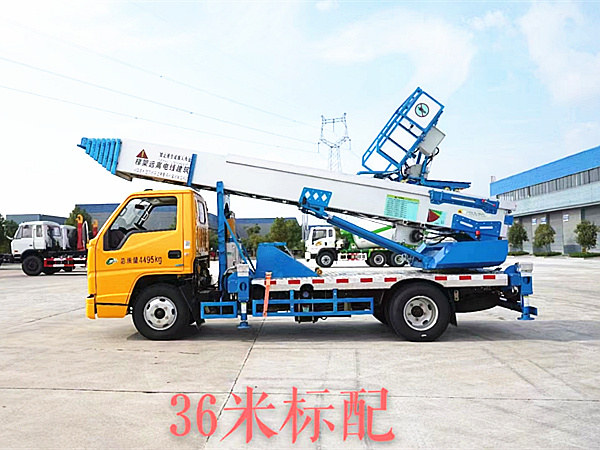

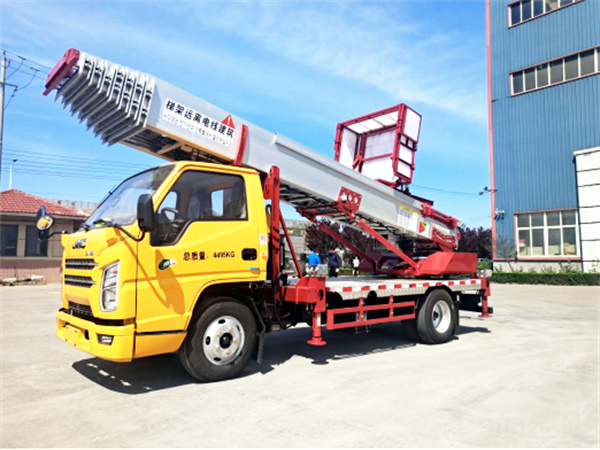

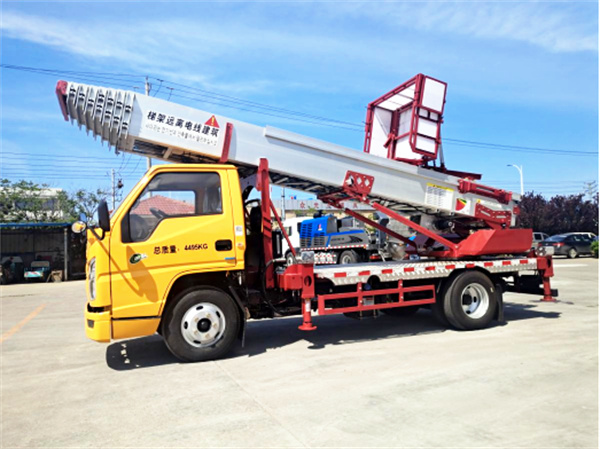

JMC ariel ladder lift truck-ladder truck-ladder vehicle 36m

Ladder truck is also called ladder carry truck, aerial transport vehicle, ladder load material truck, ladder moving house truck, ladder truck is to achieve the full range of operations of the ladder arm, ladder system is the movement track of the lift trolley, which is the operation platform of the ladder,it is the carrier of transport goods.

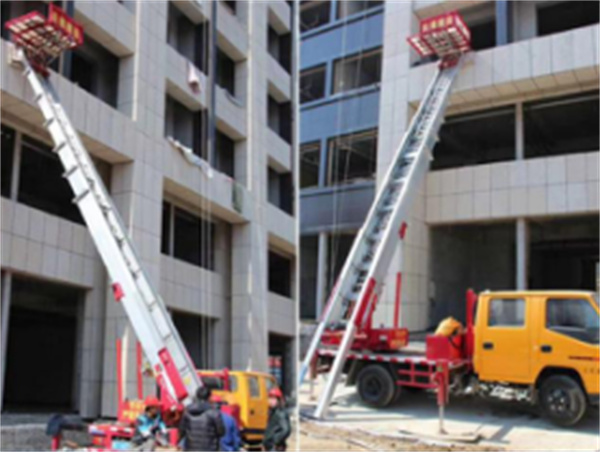

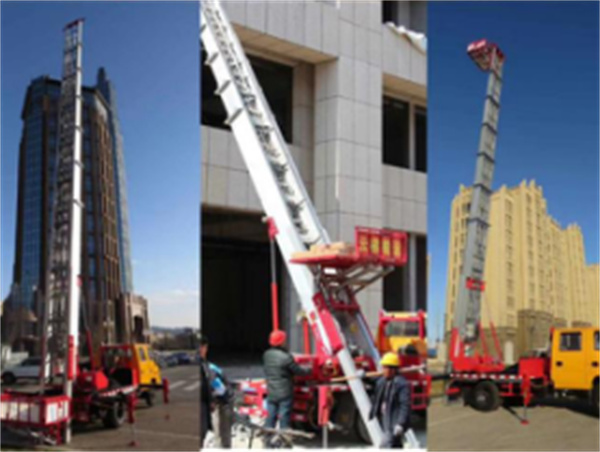

ladder trucks for sale are versatile, Mainly used for moving companies, engineering leasing, waterproof material upstairs, solar installation, advertising high gun, power maintenance, air conditioning installation, cement handling, sand handling, building materials upstairs, construction waste handling, ship maintenance, road and bridge repair, monitoring installation, street lamp installation and maintenance, plate tile upstairs, floor waterproof, insulation maintenance, external wall waterproof, large goods upstairs, etc.

JMC ariel ladder lift truck-ladder truck-ladder vehicle 36m

Model: CLW5041

Curb weight: 4365Kg

Overall dimension: 5995*1890*2900mm

JMC Rescue Ladder Truck Chassis Configuration: JMC 4x2 chassis JX1041,single row cab with left/right hand drive optional and A/C,3.36m wheelbase,115HP Engine,5-speed gearbox with manual,front brige 2.5T/ rear brige 3.5T, 700R16 tire.

Rescue Vehicles for Kids Top Configuration:

1.The maximum working height of ladder truck vs engine is 36 meters, the rated load of the 1. The maximum working height is 36 meters, the rated load of the working platform is 400KG, and the leg span is 1100mm.

2.ladder truck fire Equipped with H type leg, hydraulic radiator, hydraulic fuel tank, wireless remote control, automatic operation, leg expansion, force extractor, positioning system, control valve, cylinder balance valve, ladder arm hydraulic motor, lifting hydraulic motor, lifting brake, ladder arm auxiliary wheel, ladder arm anti-wear device, hopper delivery aid wheel, dump bucket, wire rope, ladder arm, eight-section synchronous telescopic boom form.

3.The ladder truck rack is mainly composed of frame assembly, ladder assembly, trolley assembly, turntable assembly, hoist assembly, hydraulic system assembly, electrical system assembly and so on. When transferring the goods,4 pcs hydraulic supports are extended to enhance the stability of the whole machine.

Ladder vehicle Optional Configuration: 1.Electronic control.2.Emergency power.3.Homework bucket lined with insulation.4 .Remote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.

Hight altitude operation truck Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Operation truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Truck body lifts Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Ladder overhang on vehicles Advantage is listed below:

1. Full hydraulic, horizontal and vertical hydraulic legs. (Improve vehicle stability)

2. Add remote control ladder lifting function

3. The two-level trolley structure can reduce the shelf height from the ground to 45CM, and the ground clearance is 12-15cm lower than the traditional one, making the feeding easier.

4. New hopper, simple and convenient, cleaner discharge, automatic return (no increase in manpower).

5. Single row cab, 8 section arms synchronous telescopic, vehicle length close to 32 meters, not more than 6 meters.

6. Aluminum alloy hydraulic tank, long service life, there is no tank rust problem, there is a stuck valve phenomenon.

7. The blue brand is the highest in the industry, and the working height can reach 13 floors.

8. Imported ladder arm, imported valve group (core components are imported with original).

We are a professional tactical ladder vehicle manufacturer and can produce all kinds of lifting pallet truck.You can customize step ladder vehicle, we can satisfy all your requirements of turntalbe ladder vehicle.Please feel free to contact me If you have any questions about vehicle ladder rack and want to have Ladder Fire Truck price(see left contact information).
