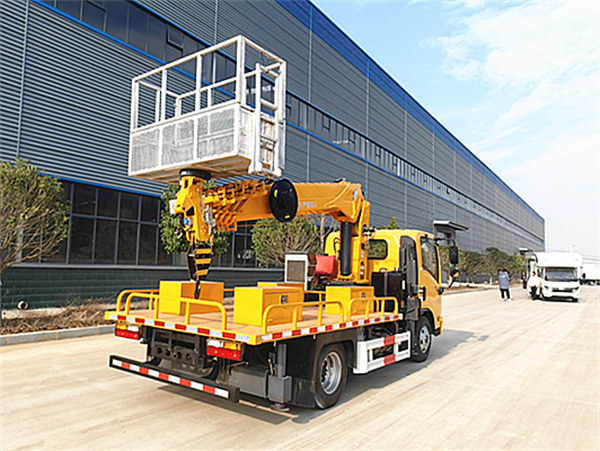

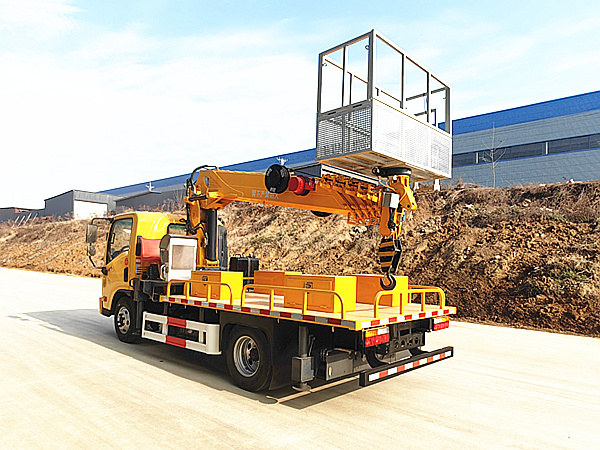

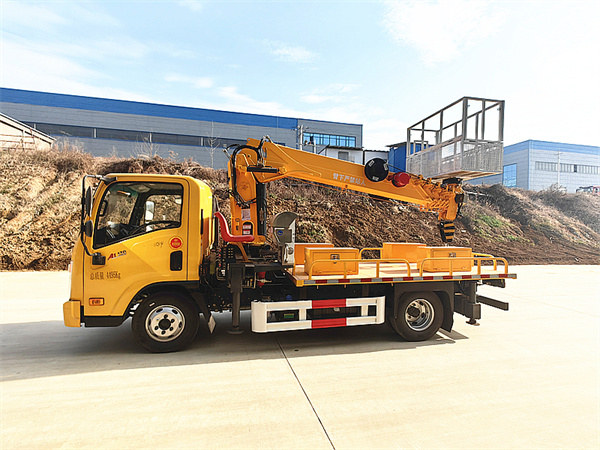

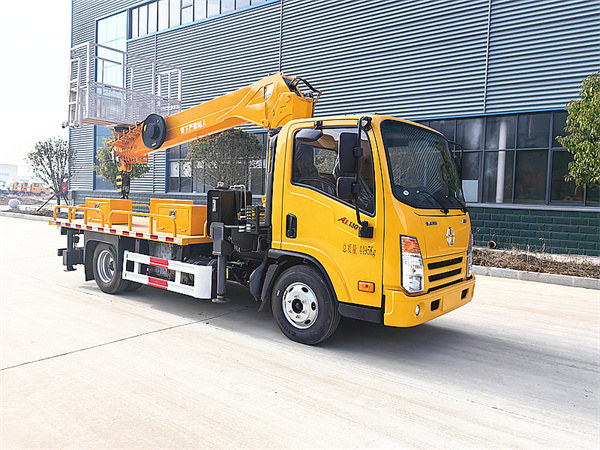

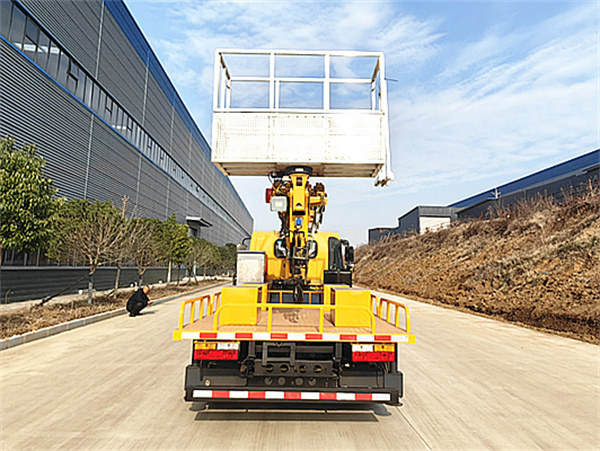

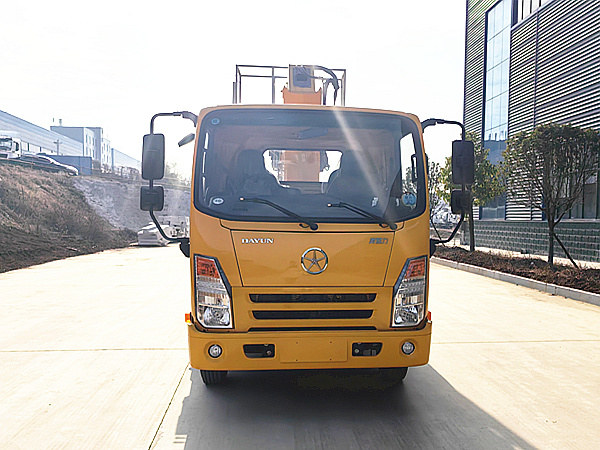

Dayun multifunction truck bed hydraulic lift-high altitude work vehicle 20m

1500kg high lift pallet truck has Four functions in one :① aerial work.② cargo lifting.③ road rescue.④ moving operations. Hydraulic tail lifts for trucks is A truck multi-purpose, installation, lifting, rescue, moving, hauling, everything.

Dayun multifunction truck bed hydraulic lift-high altitude work vehicle 20m

Model: CLW5042

Curb weight: 4365Kg

Overall dimension: 5998*2050*3450mm

Dayun lift vehicle Chassis Configuration: Dayun 4x2 chassis CGC1041,single row cab with left/right hand drive optional and A/C,3.3m wheelbase,125HP Engine,5-speed gearbox with manual,front brige 1.79T/ rear brige 2.7T, 700R16 tire.

Sky lift truck Top Configuration:

1.moving truck with lift Top: GK20 aerial work vehicle

Maximum operating height: 20 meters

Maximum working range: 14.8 meters

Maximum lifting weight: 5000kg

Platform load rating: 200KG

Rotation structure: 360 degrees arbitrary rotation

Platform rotation range: ±180°

Power pump: Single pump

Operation mode: medium operation, remote control operation

Platform size: 1600mm*700mm*1000mm

Plate size: 3300mm*2100mm

2. hydraulic tail lift truck Big arm: 6 sections of rope walking big arm, 5 sections of synchronous telescopic, wire rope arm with spare wire rope, even if the main wire rope disconnected, can also put people down smoothly

Operating system: domestic well-known electronic control system, equipped with wireless remote control, three-way operation.

Hydraulic system: electro-hydraulic proportional valve, can be stepless speed regulation, with emergency power source

Hydraulic legs: H-type legs, 4 telescopic legs, individually adjustable.

Safety device: on and off interlock, soft leg protection (optional), two-way hydraulic balance valve

Platform truck with rubber table Optional Configuration: 1.Electronic control.2.Emergency power.3.Hook arm stretched out within 1 meter.4.The front hydraulic leg juts out for 14 meters below.5.Homework bucket lined with insulation.6 .Remote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.

Hight altitude operation truck Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Operation truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Truck body lifts Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Hidraulic lift platform for truck Advantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;energy save;flexible motion.

We are a professional hydraulic mobile truck loading platform manufacturer and can produce all kinds of lifting pallet truck.You can customize hydraulic platform for trucks, we can satisfy all your requirements of metal platform truck.Please feel free to contact me If you have any questions about pallet lift truck and want to have truck bed wheel lift price(see left contact information).
