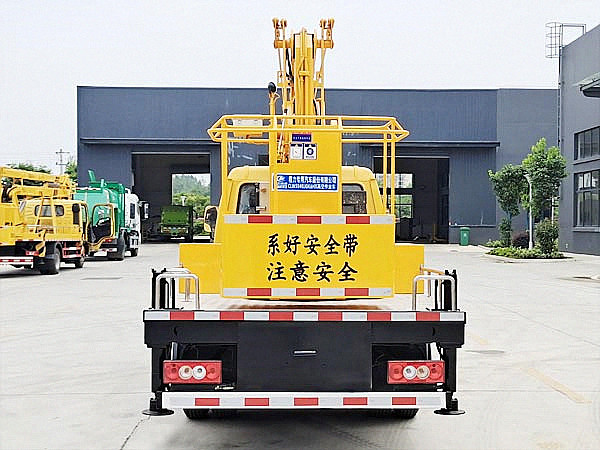

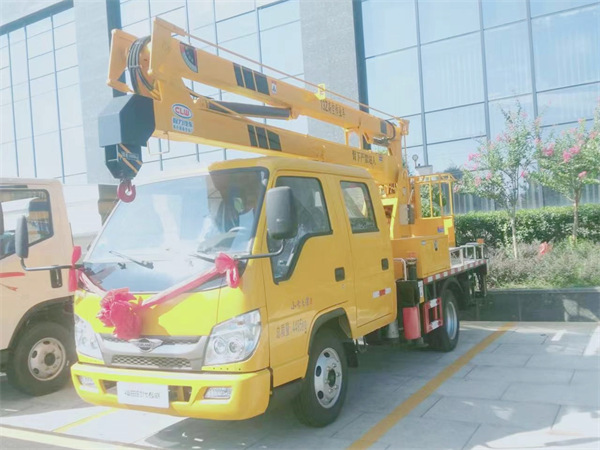

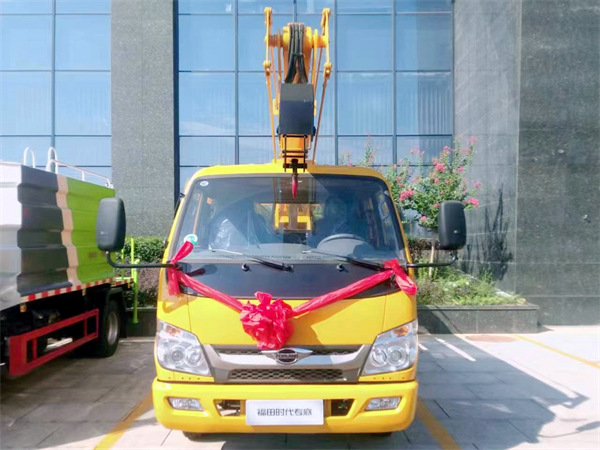

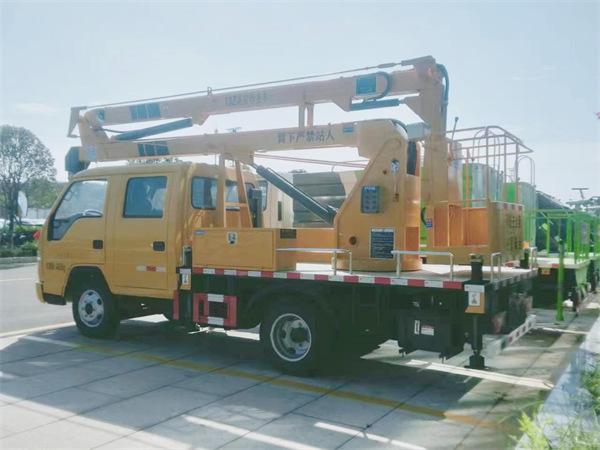

FOTON aerial working truck-truck lift hydraulic-truck mounted crank arm lift 14m

Truck with boom lift is mailly used for maintenance , installation , cleaning , photography , shipbuilding , chemical industry , electric power, pruning, replacement of street lamps, engineering repair homework and other high-altitude operation.Work aerial vehicles is suitable for narrow road and street alley job,municipal administration,gardens,transportation.

FOTON aerial working truck-truck lift hydraulic-truck mounted crank arm lift 14m

Model: CLW5040

Curb weight: 41705Kg

Overall dimension: 5980*2000*2950mm

Foton truck with small boom lift Chassis Configuration:Foton 4x2 chassis BJ1045,double row cab with left/right hand drive optional and A/C.2.85m wheelbase,68~115HP Engine,5-speed gearbox, front brige 1.5T/ rear brige 2.5T,185R14 tire

Truck hydraulic lift Top Configuration:

1.truck loading platform sheet Working Hight:14m,working arm:3 section foled; left,right 360°continous rotation;(electricity) hydraulic control,could be operated on the ground or in the carriage, passenger allowed in cab:2~3 person, could be equipped with auxiliary drop hanger loaded 1 ton.

2. truck loading electric lift Equipped with single hydraulic cylinder lifting,two-way balancing valve; adjustable landing leg with hydraulic lock and four hydraulic cylinders (the front leg cannot extend outward for 14 meters below, leg for manual operation, can control alone.)

Working lift on back of truck Optional Configuration: 1.Electronic control.2.Emergency power.3.Hook arm stretched out within 1 meter.4.The front hydraulic leg juts out for 14 meters below.5.Homework bucket lined with insulation.6 .Remote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.

Truck mounted elevated work platform Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Truck mounted hydraulic lift Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Truck hoist lift Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Truck mounted aerial work platform 14 meter Advantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;energy save;flexible motion.

We are a professional truck loading lift manufacturer and can produce all kinds of truck for work at a large height above level.You can customize truck lift remote control, we can satisfy all your requirements of truck lift for garage.Please feel free to contact me If you have any questions and want to have truck for sale with tail lift price(see left contact information).
