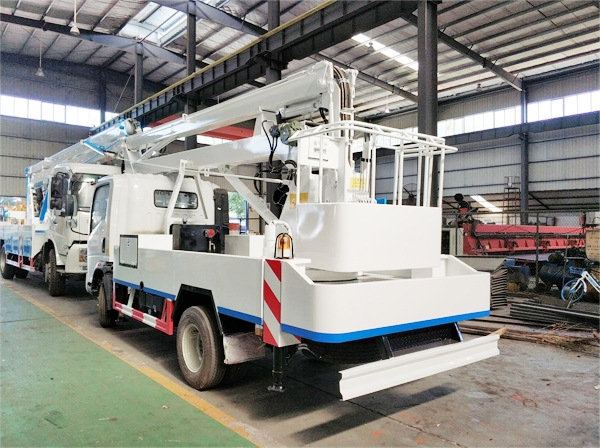

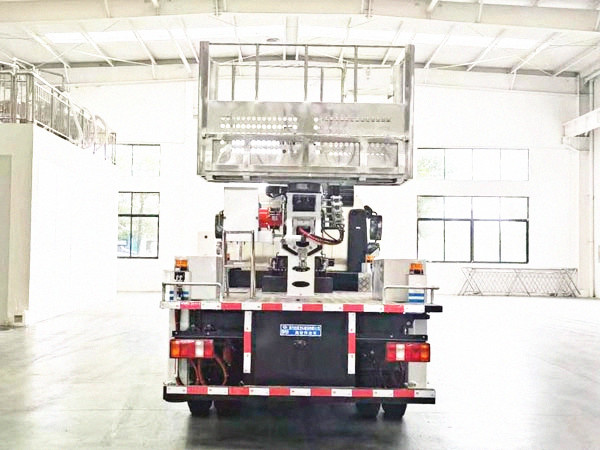

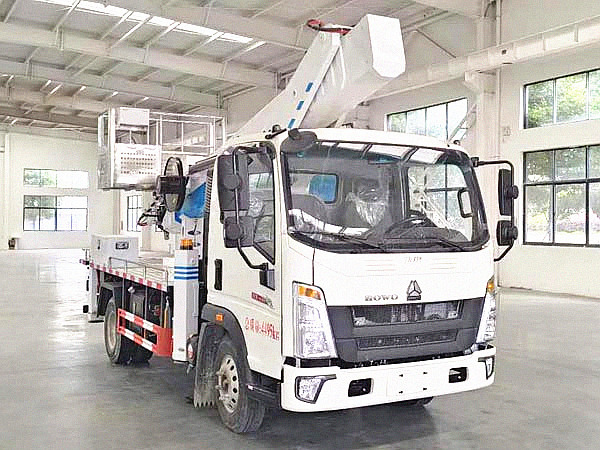

HOWO aerial working truck-high-altitude operation trucks 14~16m

Aerial working truck is mailly used for maintenance , installation , cleaning , photography , shipbuilding , chemical industry , electric power,

pruning, replacement of street lamps, engineering repair homework and other high-altitude operation.High-altitude operation trucks is suitable for narrow

road and street alley job,municipal administration,gardens,transportation.

HOWO aerial working truck-high-altitude operation trucks 14~16m

Model: CLW5040

Curb weight: 43655Kg

Overall dimension: 5998*2100*3100mm

Sinotruk HOWO high altitude operation truck Chassis Configuration: Sinotruk Howo 4x2 chassis ZZ1047,single row with left/right hand drive optional and

A/C.3.36m wheelbase,116~129HP Engine,6-speed gearbox with manual, front brige 2.4T/ rear brige 7.2T, 8.25R16 tire.

Street light crane Top Configuration:

1.Aerial lift trucks Working Hight:14~16m,working arm:3 section foled; left,right 360°continous rotation;(electricity) hydraulic

control,could be operated on the ground or in the carriage, passenger allowed in cab:2~3 person, could be equipped with auxiliary drop hanger

loaded 1 ton.

2. Bucket trucks Equipped with single hydraulic cylinder lifting,two-way balancing valve; adjustable landing leg with hydraulic lock and

four hydraulic cylinders (the front leg cannot extend outward for 14 meters below, leg for manual operation, can control alone.)

Aerial work platform truck Optional Configuration: 1.Electronic control.2.Emergency power.3.Hook arm stretched out within 1 meter.4.The front

hydraulic leg juts out for 14 meters below.5.Homework bucket lined with insulation.6 .Remote control system is optional, that could control the

truck engine start/stop, to save energy when the truck fixed-point working.

Aerial work platform truck Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high

altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Vehicle mounted aerial work platform Optional Chassis Brands:

ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Bucket truck aerial working platform Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Truck lift platform Advantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;

energy save;flexible motion.

We are a professional truck mounted aerial work platform air condition manufacturer and can produce all kinds of truck mounted aerial work platform.You

 can customize truck mounted aerial platform, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have

self-propelled manned aerial work platform price and cheap aerial working platform truck(see left contact information).
