ISUZU aerial work platform truck-working lift on back of truck-high up truck 18m

Working lift on back of truck is mailly used for maintenance , installation , cleaning , photography , shipbuilding , chemical industry , electric power, pruning, replacement of street lamps, engineering repair homework and other high-altitude operation.Work aerial vehicles is suitable for narrow road and street alley job,municipal administration,gardens,transportation.

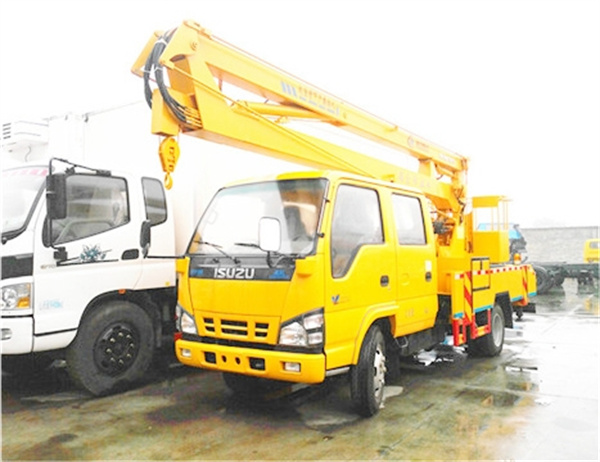

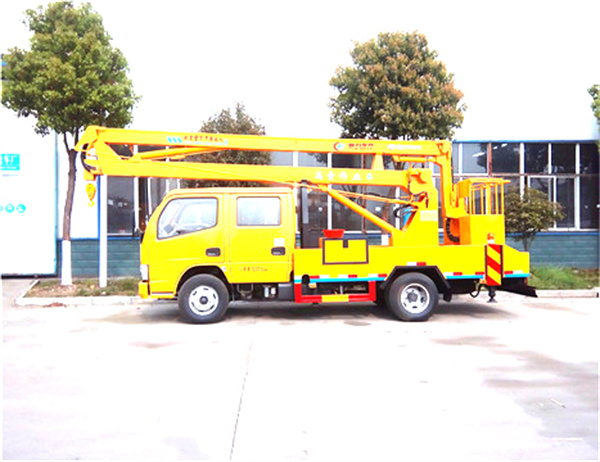

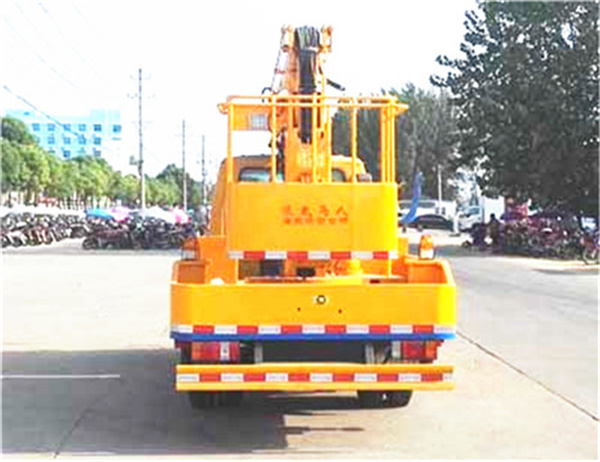

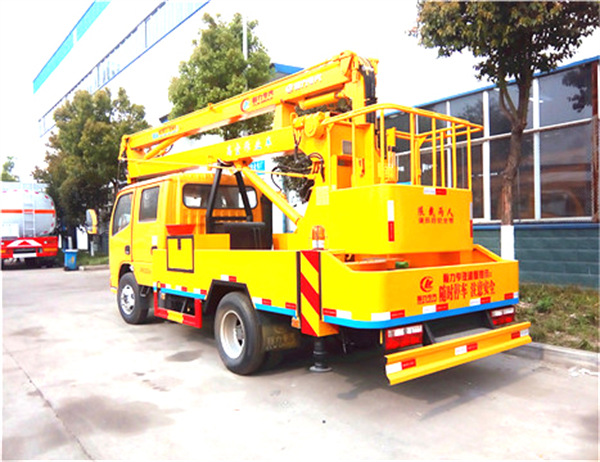

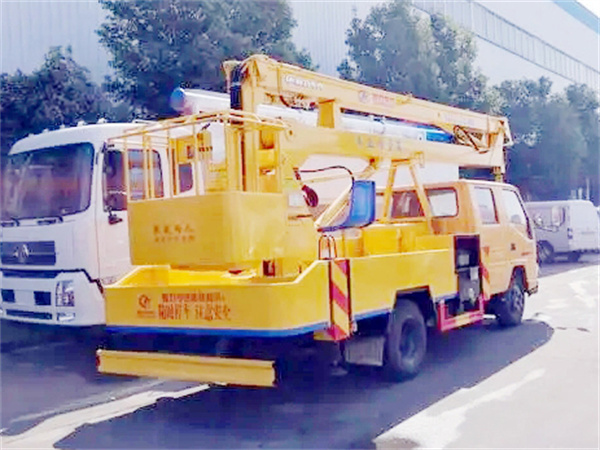

ISUZU aerial work platform truck-working lift on back of truck-high up truck 18m

Model: CLW5070

Curb weight: 6695Kg

Overall dimension: 8600*2050*3200mm

Isuzu vehicle-mounted aerial work vehicle Chassis Configuration: ISUZU 4x2 chassis QL1110, double row with left/right hand drive optional and A/C,3.815m wheelbase,190/205HP Engine,6-speed gearbox with manual,front bridge 4T/ rear bridge 7T,235/75R17.5 tire.

Truck-mounted electric hydraulic liftTop Configuration:

1.truck with small boom lift:18m,working arm:3 section foled; left,right 360°continous rotation;(electricity) hydraulic control,could be operated on the ground or in the carriage, passenger allowed in cab:2+3 person, could be equipped with auxiliary drop hanger loaded 1 ton.

2. truck with tail lift Equipped with single hydraulic cylinder lifting,two-way balancing valve; adjustable landing leg with hydraulic lock and four hydraulic cylinders (the front leg cannot extend outward for 14 meters below, leg for manual operation, can control alone.)

Vehicle mounted boom lift Optional Configuration: 1.Electronic control.2.Emergency power.3.Hook arm stretched out within 1 meter.4.The front hydraulic leg juts out for 14 meters below.5.Homework bucket lined with insulation.6 .Remote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.

Vehicle mounted aerial work platform Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Trucks with hydraulic lifts Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Trucks that are lifted Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Truck with lifting armAdvantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;energy save;flexible motion.

We are a professional truck with boom lift manufacturer and can produce all kinds of truck with air lift platform.You can customize truck with manipulator crane and loading platform, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have truck top air platform price(see left contact information).
