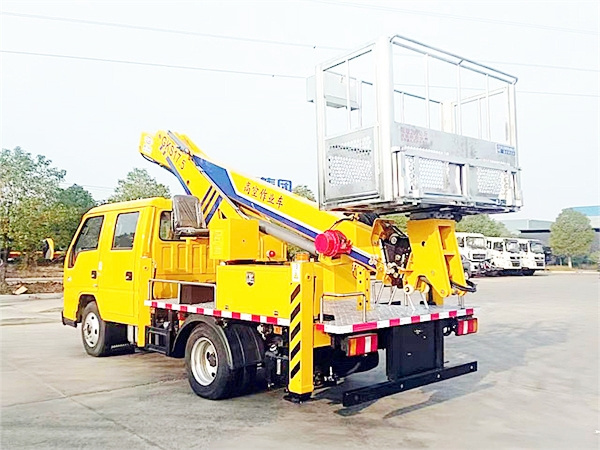

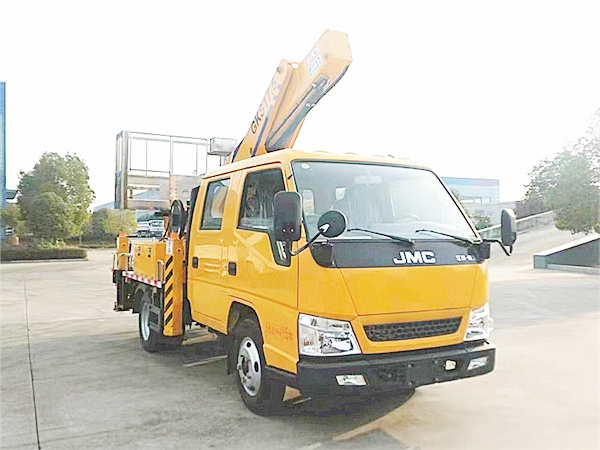

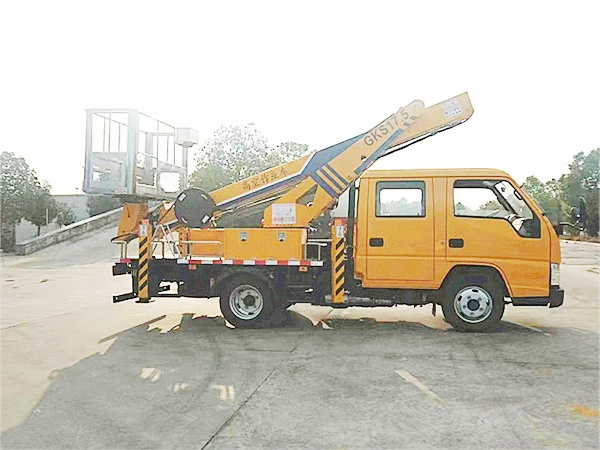

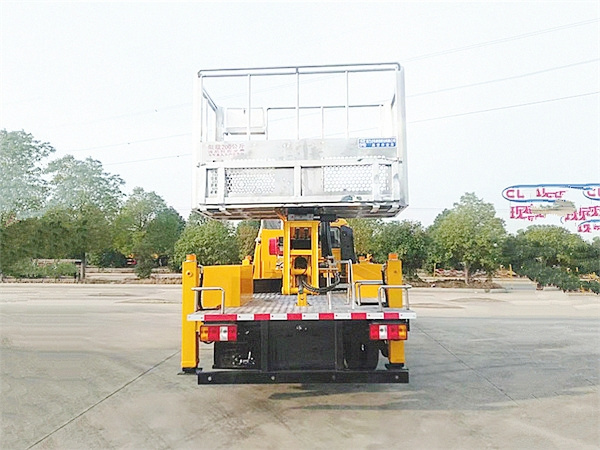

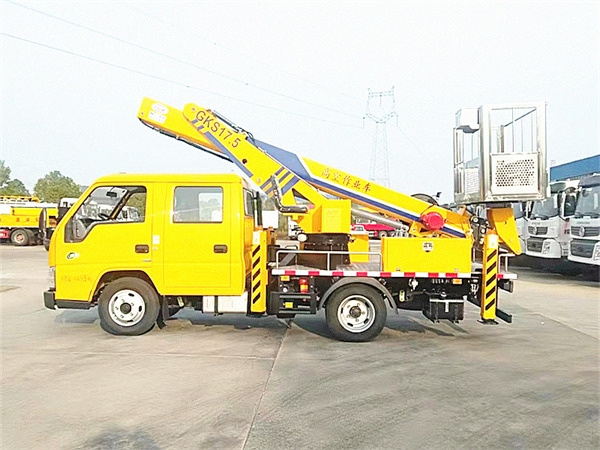

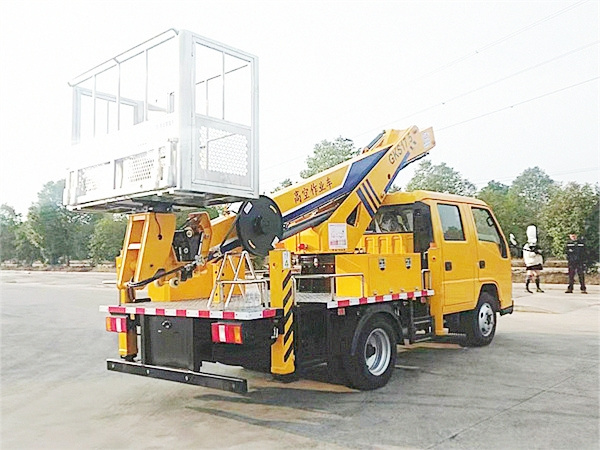

JMC hydraulic aerial bucket truck-telescopic aerial working platform truck 17.5~23m

Work aerial vehicles mailly used for maintenance , installation , cleaning , photography , shipbuilding , chemical industry , electric power, pruning, replacement of street lamps, engineering repair homework and other high-altitude operation.Vehicle-mounted aerial work vehicle is suitable for narrow road and street alley job,municipal administration,gardens,transportation.

JMC hydraulic aerial bucket truck-telescopic aerial working platform truck 17.5~23m

Model: CLW5040

Curb weight: 4170Kg

Overall dimension: 5998*2050*3050mm

Street lights maintenance truck Chassis Configuration:JMC 4x2 chassis JX4D30,double row with left/right hand drive optional and A/C,2.8m wheelbase,115HP Engine,5-speed gearbox with manual,front brige 2T/ rear brige 3.5T, 700R16 tire.

Telescopic aerial platform truck Top Configuration:

1.aerial work platform truck:The rated load of working bucket for telescopic arm aerial working truck is 200KG.The maximum working height is 17.5~23 meters.The maximum working range is 23 meters.The working range is 5m for maximum working height.The working height is 5M for maximum working range.Leg span is 4.2M transverse and 4M longitudinal..

2. aerial working platform truck:Stainless steel fence and anti-slip platform; PTO is mechanical operation; High strength stainless steel working bucket size is 1500X700X1000mm;Three-section hexagon type working arm synchronous telescopic; 360-degree continuous rotating device;Front V rear H type legs can be individually controlled; Electronic control operation and manual emergency operation; CAN control system; Wireless remote control for stepless speed regulation; Hydrostatic automatic leveling.

3.bucket truck aerial working platform:Safety configuration: automatic interlock device, manual emergency pump, emergency stop device of working platform, automatic limit working range, "false ground" limit work, night safety warning device, engine ignition and shutdown, "forced" operation function.

Vehicle mounted aerial work platform Optional Configuration: 1.emergency power.2.homework bucket lined with insulation.3.Remote control system could control truck engine starting/stopping, save energy when the truck fixed-point working.

High-altitude operation trucks Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

high aerial platform truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Working height of aerial truck:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Telescopic aerial working platform truck Advantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;energy save;flexible motion.

We are a professional aerial platform truck manufacturer and can produce all kinds of aerial lift trucks.You can customize 21m 23m 25m 29m 38m 45m aerial work platform truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have aerial work platform price(see left contact information).
