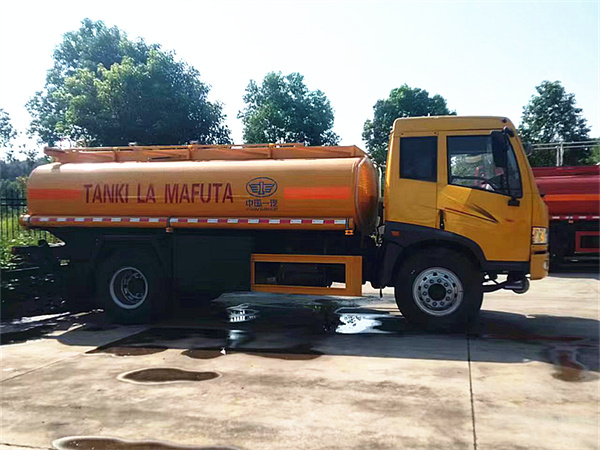

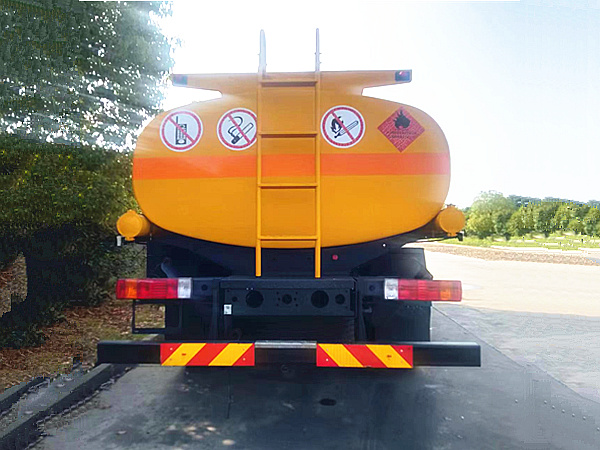

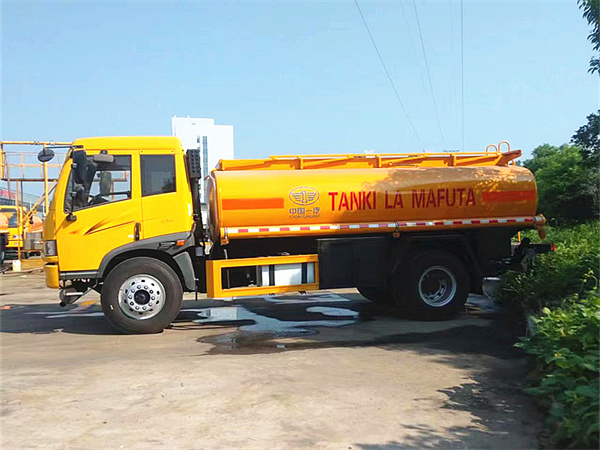

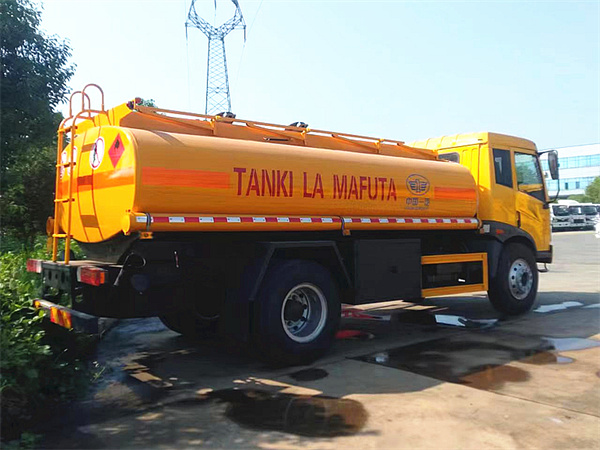

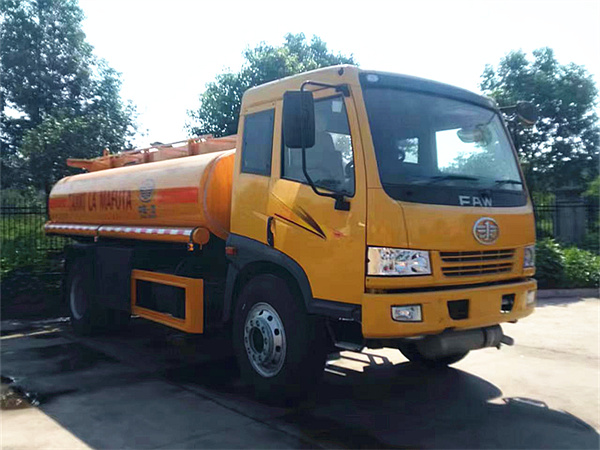

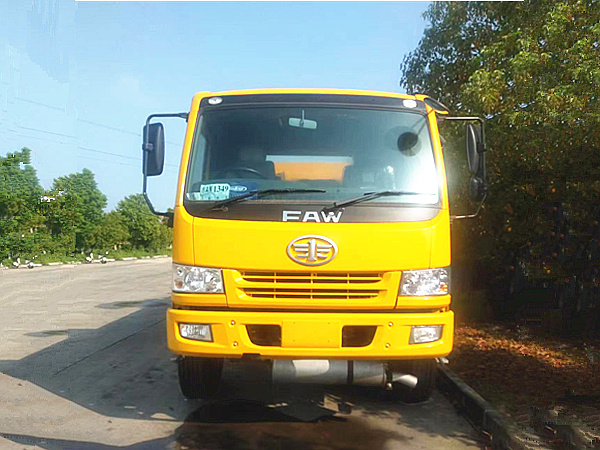

Faw truck fuel tank-mini fuel tank truck 10000 litre

Diesel fuel tank truck is mainly used for all kinds of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil) transportation and storage. Fuel tank truck with 6 wheels has a variety of refuel or oil transport function according to different purpose and use of the environment.

Faw truck fuel tank-mini fuel tank truck 10000 litre

Model: CLW5122

Curb weight: 5070Kg

Overall dimension: 6950*2270*2800mm

Faw fuel tank truck Chassis Configuration: FAW 4x2 chassis CA1120,row half cab with left/right hand drive optional and A/C,3.9m wheelbase,160HP Engine,6-speed gearbox with manual, front brige 4T/ rear brige 7T, 7.5R16 tire..

Faw 8 cbm fuel refueling tank truck Top Configuration:

1. small fuel tank truck Tank valume: 8~10CBM;round or square;tanker material:4-6mm carbon steel.

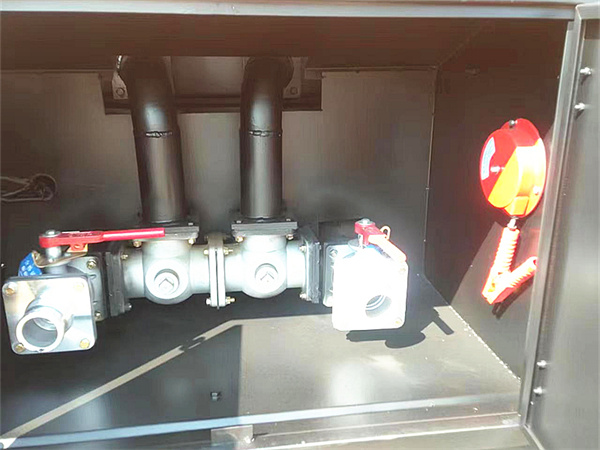

2. truck fuel tank 7000l Equipped with sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,Safety valve and so on.

3.truck aluminum fuel tank 4":Built-in type oiling machine, separate parts for different oils,out and in through pump,self-flow.

Faw 8cbm fuel tank truck Optional Configuration: 1.Tanker material: stainless steel,aluminium alloy and carbon steel. 2.Pump:centrifugal pump,gear pump,copper core gear pump,stainless steel pump,Aluminium alloy pump. 3.Measurement:Mechanical flowmeter or vehicular tax-controlled computer oiling machine. 4.Under installation oil gas recycling. 5.Emergency shutdown valve. 6.Multichannel wave plate in tank. 7.GPS. 8.Electromagnetic valve. 9.Pneumatic valve. 10.Visual operating system. 11.External power. 12.Movable rail on top of tank. 13.15m TLJP(self-return). 14.ABS,the front dish and rear drum,the speed limit device. 15.Overflow prevention alarm. 16.Breathing valve. 17.Manhole cover QTY and heightening and locking. 18.API valve. 19.Liquid level gauge. 20.Refueling gun.

Cooking oil tank truck Series produced by our factory: Refueling truck,transporting oil truck and Oil transported semi-trailer.

Oil tank truck oil 8000 lite oil Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Oil tank truck companies Selective Capacities:5CBM~60 CBM.

10000l fuel tank truck Advantage is tank high strength,stable center of gravity,transporting safety.Three kinds of oil can be transported.

We are a professional oil refueling tank truck manufacturer and can produce all kinds of 1/50 alloy oil tank truck.You can customize 10000 liters oil tank truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have 10 ton capacity fuel tank truck price(see left contact information).
