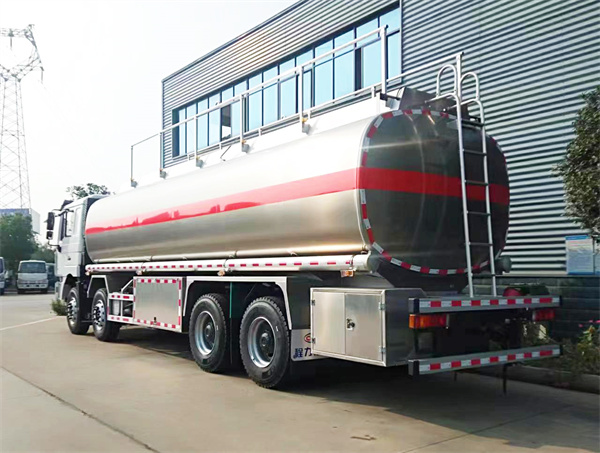

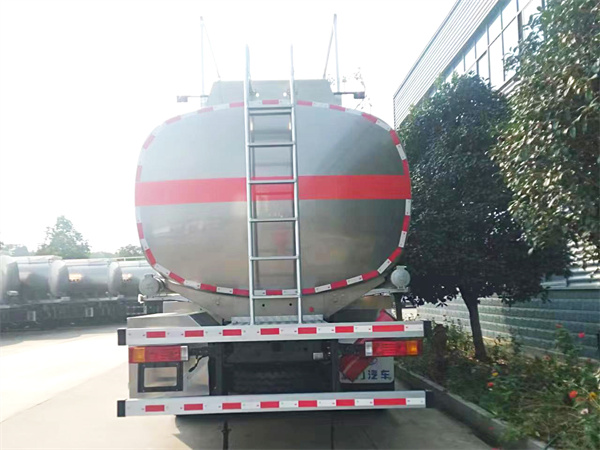

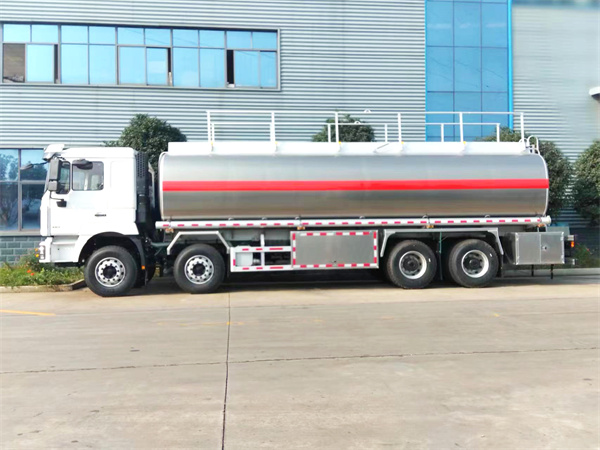

Shacman 8X4 heavy duty truck fuel tanks-truck aluminum fuel tanks 30000 litres

Truck bed fuel tank is mainly used for all kinds of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil) transportation and storage.Man truck fuel tank has a variety of refuel or oil transport function according to different purpose and use of the environment.

Shacman 8X4 heavy duty truck fuel tanks-truck aluminum fuel tanks 30000 litres

Model: CLW5320

Curb weight: 13600Kg

Overall dimension: 11730*2550*3450mm

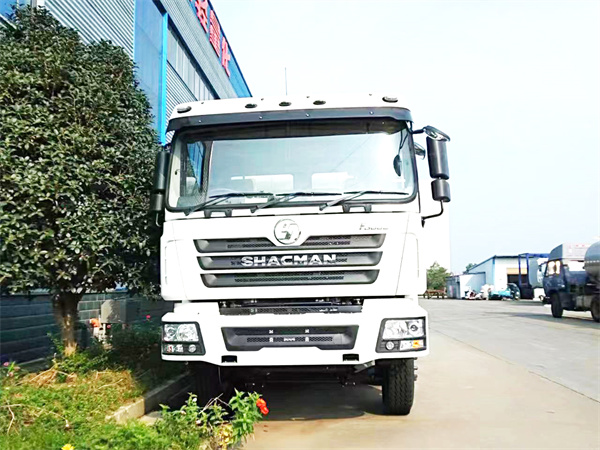

Shacman 8x4 oil tank truck Chassis Configuration: Shacman 8x4 chassis SX541, row half cab with left/right hand drive optional and A/C;1800+4575+1400m wheelbase,380HP Engine,10-speed gearbox with manual,front bridge 7.5T/ rear bridge 13T, 12.00R20 tire.

8x4 fuel tank truck Top Configuration:

1.truck dump truck fuel tank Tank valume:25~35CBM;round or square;tanker material:4-6mm carbon steel.

2.oil tank capacity fuel tank truck Equipped with sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,Safety valve and so on.

3.jet fuel tank truck with air brake:Built-in type oiling machine, separate parts for different oils,out and in through pump,self-flow.

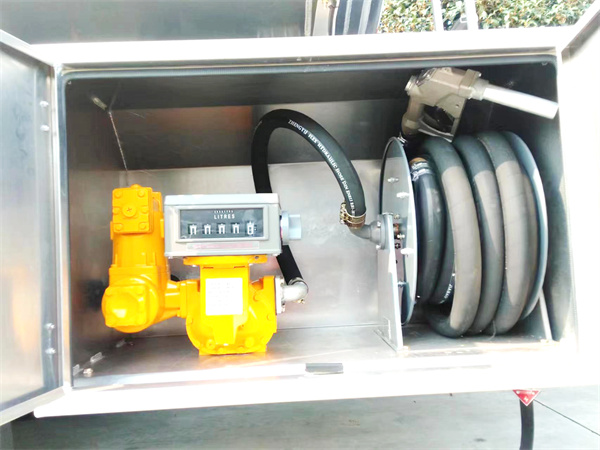

25000 liters fuel tank truck Optional Configuration: 1.Tanker material: stainless steel,aluminium alloy and carbon steel. 2.Pump:centrifugal pump,gear pump,copper core gear pump,stainless steel pump,Aluminium alloy pump. 3.Measurement:Mechanical flowmeter or vehicular tax-controlled computer oiling machine. 4.Under installation oil gas recycling. 5.Emergency shutdown valve. 6.Multichannel wave plate in tank. 7.GPS. 8.Electromagnetic valve. 9.Pneumatic valve. 10.Visual operating system. 11.External power. 12.Movable rail on top of tank. 13.15m TLJP(self-return). 14.ABS,the front dish and rear drum,the speed limit device. 15.Overflow prevention alarm. 16.Breathing valve. 17.Manhole cover QTY and heightening and locking. 18.API valve. 19.Liquid level gauge. 20.Refueling gun.

Seals for fuel tank trucks Series produced by our factory: Refueling truck,transporting oil truck and Oil transported semi-trailer.

Oil tank truck oil oil Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Oil tank truck for tanzania Selective Capacities:5CBM~60 CBM.

Hydrolic oil tank truck Advantage is tank high strength,stable center of gravity,transporting safety.Three kinds of oil can be transported.

We are a professional oil tank truck made in china manufacturer and can produce all kinds of fuel tank to truck.You can customize jet fuel tank truck sale, we can satisfy all your requirements of stainless steel truck fuel tank.Please feel free to contact me If you have any questions aboutsteel hydraulic oil tank for tipper truck and want to have tank truck oil  2.5 inches price(see left contact information).
