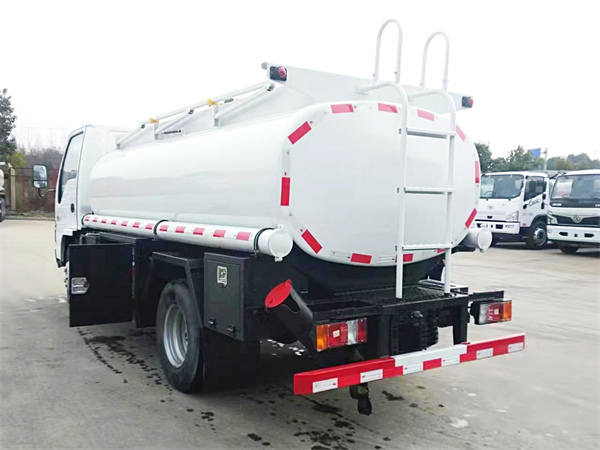

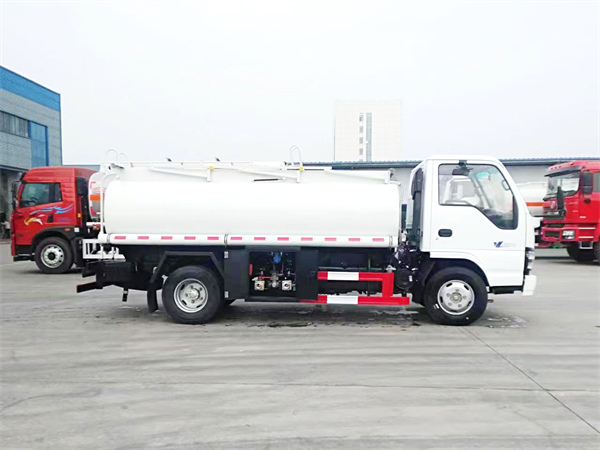

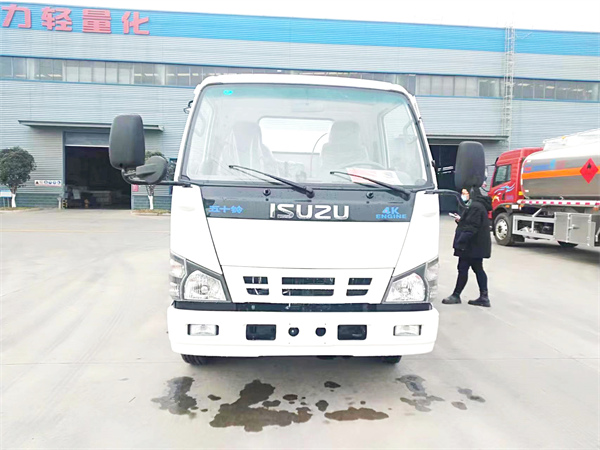

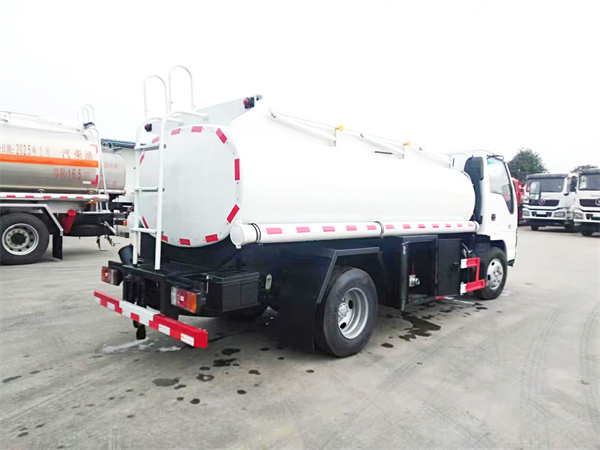

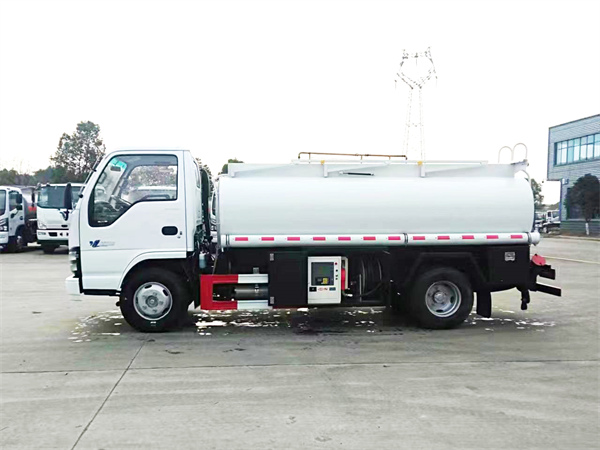

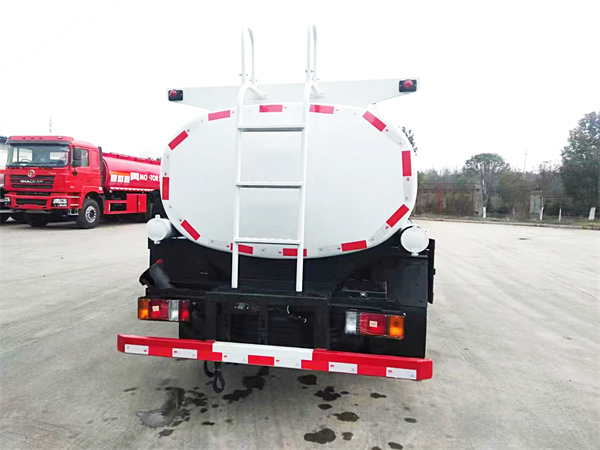

ISUZU fuel tanker truck-Oil Tank Truck 6000 litres

Oil tanker trucks is mainly used for all kinds of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil) transportation and storage. Oil truck has a variety of refuel or oil transport function according to different purpose and use of the environment.

ISUZU fuel tanker truck-Oil Tank Truck 6000 litres

Model: CLW5060

Curb weight: 3450Kg

Overall dimension: 5995*1960*2650mm

Japan fuel tank truck Chassis Configuration: ISUZU 4x2 chassis QL1070,single row cab with left/right hand drive optional and A/C,3.36m wheelbase,120HP Engine,5-speed gearbox with manual,front brige 3T/rear brige 5T,700R16 tire.

5000 liters fuel tanker truck Top Configuration:

1. fuel tanker truck valume: 3~6CBM;round or square;tanker material:4-6mm carbon steel.

2. fuel dispensing trucks Equipped with sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,Safety valve and so on.

3.refuelling truck:Built-in type oiling machine, separate parts for different oils,out and in through pump,self-flow.

Small fuel tanks truck Optional Configuration: 1.Tanker material: stainless steel,aluminium alloy and carbon steel. 2.Pump:centrifugal pump,gear pump,copper core gear pump,stainless steel pump,Aluminium alloy pump. 3.Measurement:Mechanical flowmeter or vehicular tax-controlled computer oiling machine. 4.Under installation oil gas recycling. 5.Emergency shutdown valve. 6.Multichannel wave plate in tank. 7.GPS. 8.Electromagnetic valve. 9.Pneumatic valve. 10.Visual operating system. 11.External power. 12.Movable rail on top of tank. 13.15m TLJP(self-return). 14.ABS,the front dish and rear drum,the speed limit device. 15.Overflow prevention alarm. 16.Breathing valve. 17.Manhole cover QTY and heightening and locking. 18.API valve. 19.Liquid level gauge. 20.Refueling gun.

Service truck oil tanks Series produced by our factory: Refueling truck,transporting oil truck and Oil transported semi-trailer.

Tanker truck fuel Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Oil tanker truck sale kenya tank Selective Capacities:5CBM~60 CBM.

Truck fuel tank Advantage is tank high strength,stable center of gravity,transporting safety.Three kinds of oil can be transported.

We are a professional oil Tank Truck manufacturer and can produce all kinds of china tanker truck.You can customize mini fuel delivery truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have fuel tanker truck price(see left contact information).
