SHACMAN heavy lift tow truck-recovery wrecker tow trucks 8x4 25 tons

The full name of vehicle recovery truck is road wrecker truck, is also called tow truck,road rescue wrecker truck,breakdown truck,recovery truck,breakdown lorry or towing truck.

Left hand drive tow truck is refitted from the loading goods second class chassis,it can be divided into tow, loading,lifting,traction,rescue (single arm type and arms type) wrecker truck according to the wrecker truck's structure.

Cars tow truck photo is mainly used for peccancy vehicles and rescue on road, airports, ports,expressway, city and etc.This kind of truck can clean accident vehicles immediately.

Winch tow truck services are generally provided by an emergency road service operator.Vehicles are often towed in the case of breakdowns or collisions, or may be impounded for legal reasons.

Wrecker towing truck with crane is normally tilt tray tow truck mounted with crane. This truck is a real multifunctional wrecker truck.Flat bed cargo truck with 10tons 12 tons crane can be both used to transport the broken car which can move by flatbed and lift the broken car whose engine can't start by crane. The crane can rotate 360 degree and the lifting weight is from 3.2 ton to 16 ton.

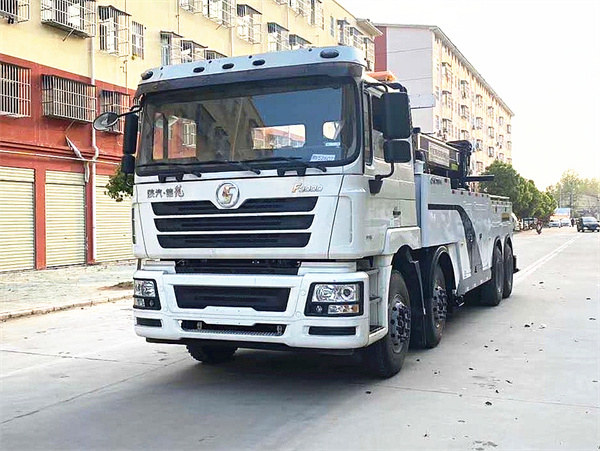

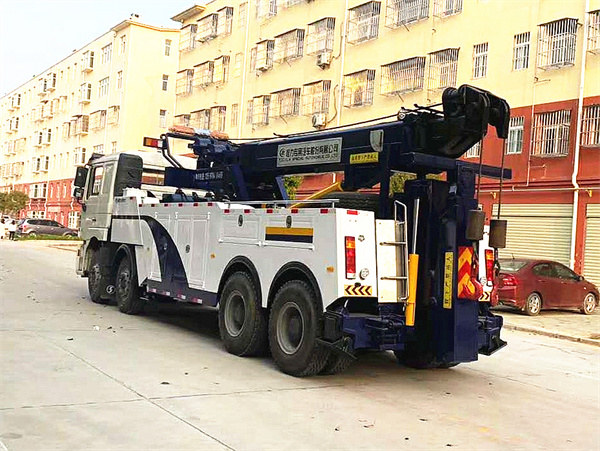

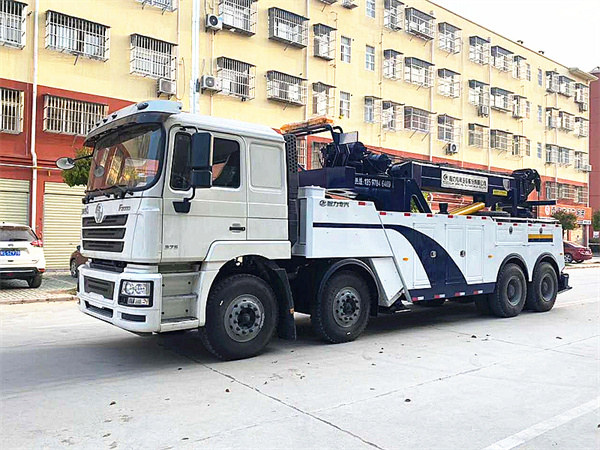

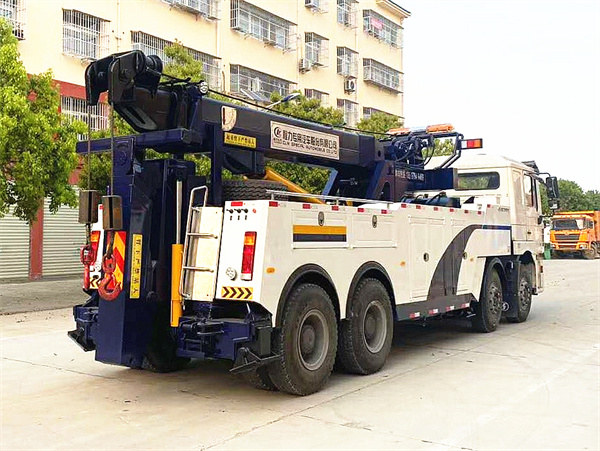

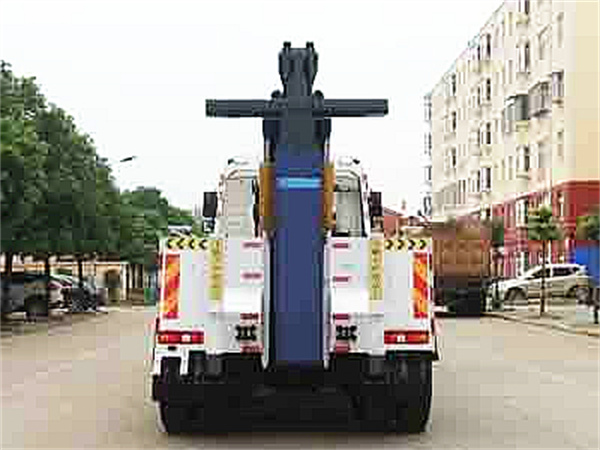

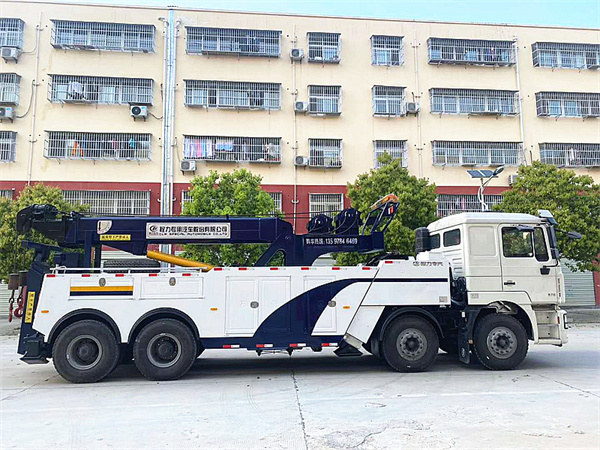

SHACMAN heavy lift tow truck-recovery wrecker tow trucks 8x4 25 tons

Model: CLW5410

Curb weight: 25160Kg

Overall dimension:   11500*2550*3360mm

Shacman recovery truck Chassis Configuration:Shacman 8x4 chassis SX5419, row half cab with left/right hand drive optional and A/C;1800+4575+1400m wheelbase,380HP Engine,10-speed gearbox with manual,front bridge 7.5T/ rear bridge 13T, 12.00R20 tire.

Shacman tow truck Top Configuration:

1.Crane mounted recovery truck for sale Payload: 20~25T.

2Tow truck boom Two hexagon type lifting arm, three section tow arm reinforced,vertical arm reinforcement.Split carriage, double-side linkage operation device, 10 tons double hydraulic winch, 40m wire rope, with 4 pairs of Y steel fork, a pair movable steel fork, 2 sets fork pedestal, tire holding device, alarm light, front bumper with counterweight, 1 set auxiliary brake gas pipe assembly, with triple wireless remote control, Italy Head import valve, Anhui liquid double pump. The structural stress parts are strengthened. Carriage electrophoresis. body built-in working light. two pcs bind chains.

Tow truck wrecker body u Optional Configuration: Automatic clamping.

Wrecker body for trucks Series produced by our factory:Flatbed wrecker truck for 2 trucks, Flatbed wrecker truck with crane,Conjoined wrecker truck for 1 truck and Rotator tow truck.

Wrecker truck body optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Tow truck philippines Payload:

Self loader tow truck for 2 trucks: flatbed is 2~16 tons and rear two arm is 2~16 tons;

Flatbed truck with crane: crane is 3.2 tons~16 tons;

Recovery truck with crane for 1 truck: 3~25 tons;

30 ton rotator tow truck for sale:30~50 tons.

Length of board for low profile tow truck : 4.2m~9.5m

20 ton hydraulic wincher tow truck Advantage is  simple structure, convenient operation, high efficiency, high degree of mechanization and manpower saving.

We are a professional tow cranes manufacturer and can produce all kinds of tow truck crane.You can customize tow truck wrecker bed, we can satisfy all your requirements of tow truck crane.Please feel free to contact me If you have any questions about crane truck to tow cars or trucks and want to have crane rescue truck price(see left contact information).
