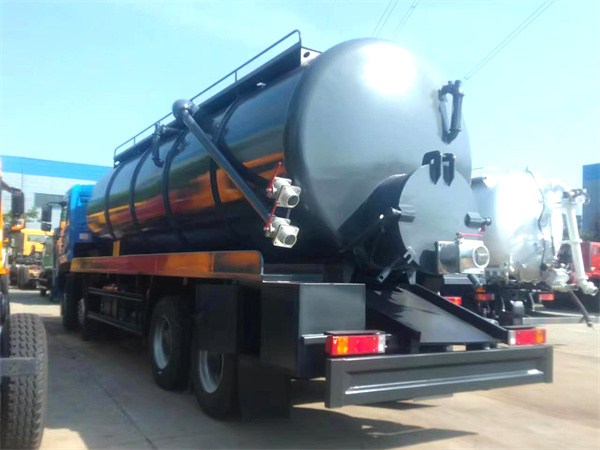

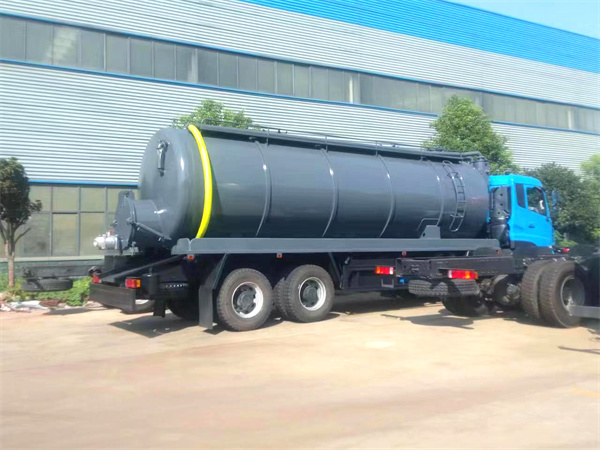

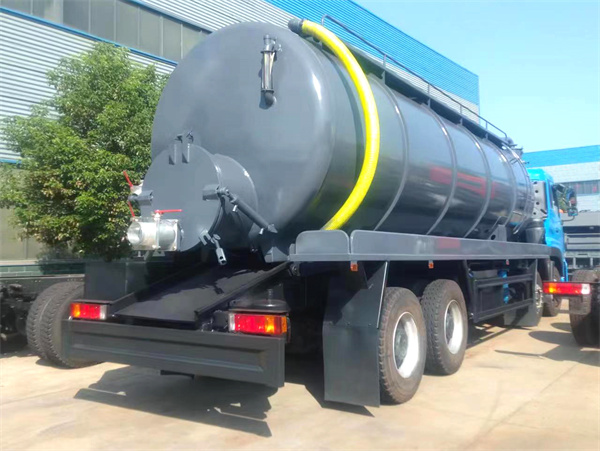

Dongfeng sewage suction truck-sewage truck 30cbm

Sewage suction truck is used for sucking fecal,sewage,mud,liquid mixed with tiny granules,sewer sediments(such as: silt, stones, bricks and other big objects) and urban water wells. Sewage truck is widely used in large, medium and small towns sanitation, municipal, agricultural and chemical industry, factories and mines enterprises, property management community,especially apply to transport household waste in residential area.

Dongfeng sewage suction truck-sewage truck 30cbm

Model: CLW5311

Curb weight: 19450Kg

Overall dimension: 12000*2550*3850mm

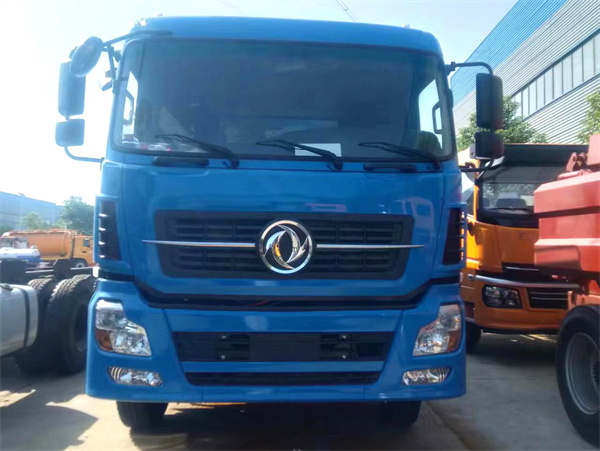

Dongfeng vacuum sewage suction truck Chassis Configuration: Dongfeng 8x4 chassis EQ1310, row half cab with left/right hand drive optional and A/C,1850+4800+1350mm wheelbase,375HP Engine,12 speed gearbox with manual,front brige 7T*2/ rear brige 13T*2, tire 12.00R20.

Vacuum truck sewage suction Top Configuration:

1. Vacuum sewage suction truck Tank volume: 30m³, round tank is made by 5-6mm special steel plate

2. Sewage pump truck: Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise,Time for full suction<5min.),sewage pipes,self-draining valve,liquid level tube for view window, vacuum pressure gage,overflow valve, PTO,transmission shaft, moisture separator,oil-gas separator,multiple directional control valve,cleaning equipment, pipe network system, high quality hydraulic system and so on.

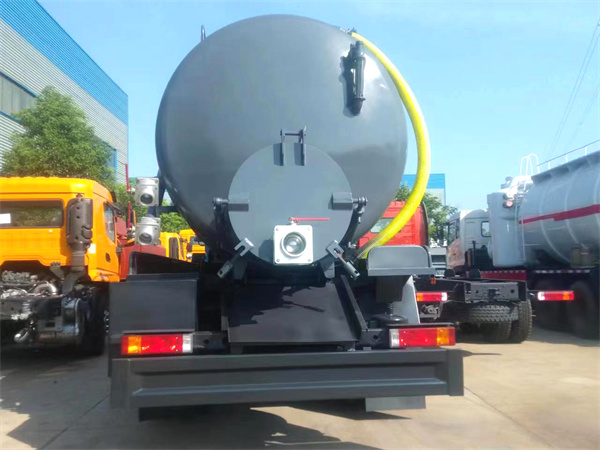

3. Sewage trucks for sale tank can be lifted  up  45° by  double hydraulic cylinder, and the rear lid also can be opened, so the truck can dump the sewage directly through the rear lid out of the tank.

Sewage drainage truck Optional Configuration: 1.The tank can be made by corrosion resistant plate or done professional anti-corrosion.2.We can use the brand of vacuum pump you specified.3.Cleaning function.

Sewage tank trucks Series produced by our factory: Sewage Suction Truck and Sewage Suction Cleaning Truck,Fecal  Suction Truck and Fecal  Suction Cleaning Truck.Sewage Trailer.

Sewage truck vaccum suction pump and engine driven Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Suction tank truck sewage suction Tank capacity: 3-20CBM

Sewage transport truck Advantage is Equipped with high efficiency pump and self-priming and self-draining system.

We are a professional sewage suction truck with vaccum truck manufacturer and can produce all kinds of sewage sucking truck.You can customize sewage suction pump truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have new sewage suction truck price and cheap clean sewage suction truck(see left contact information).
