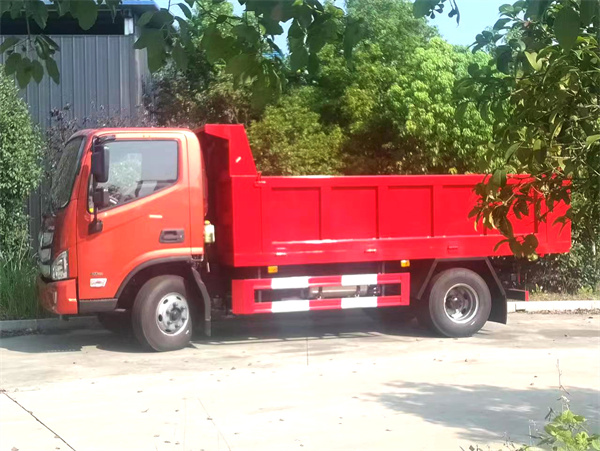

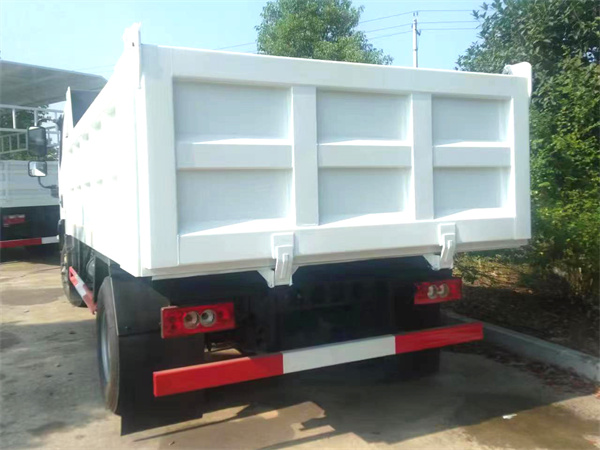

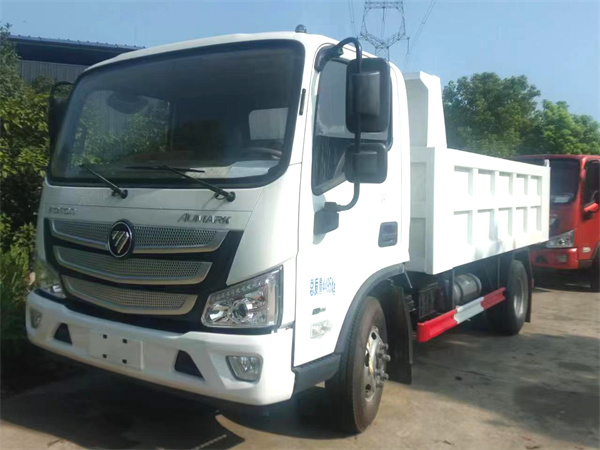

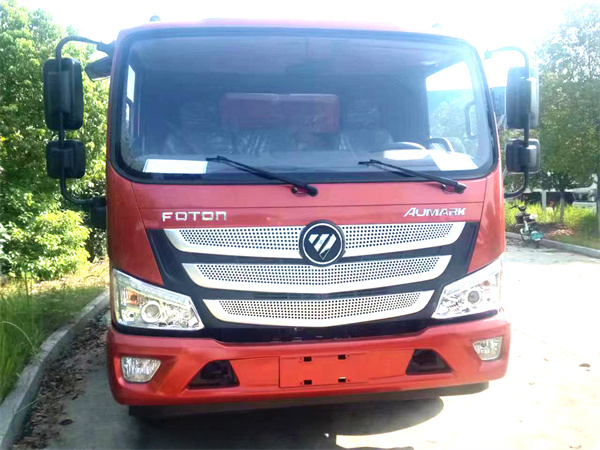

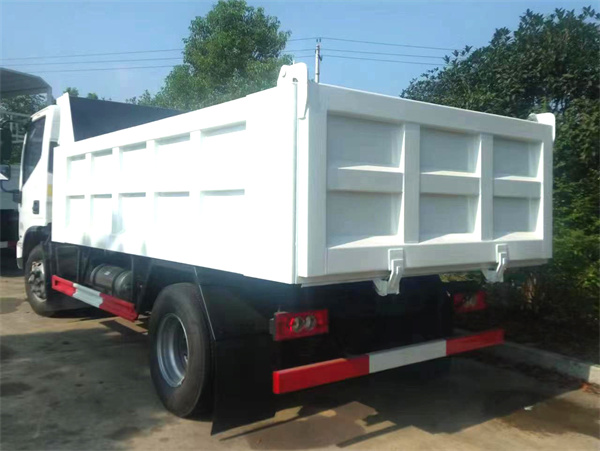

FOTON dump trucks-tipper-dumper 5 tons

Dump trucks is used in the construction department of municipal and large factories&mines transporting a variety of construction materials. Such as: ash, sand, stone and soil bulk building material.Dumper also can carry Ore or coal in mines.

FOTON dump trucks-tipper-dumper 5 tons

Model: CLW3094

Curb weight: 3910Kg

Overall dimension:  6035*2270*2400mm

Foton tipper Chassis Configuration:FOTON 4x2 chassis BJ3094,row half cab with left/right hand drive optional and A/C.3.36m wheelbase,141HP Engine,6-speed gearbox with manual, front brige 3.6T/ rear brige 6T, 8.25R1614L tire.

Aumark dump truck Top Configuration:

1.6 tons forland dump trucks Cargo box Length:3.8~4.2m.material:all-metal,bottom 4mm, Side 3mm.

2.Tipper truck dumper Equipped with tipper-hopper middle-loading double hydraulic cylinder,three opening doors;Hydraulic lifting operation switch installed in the cab, Dumping mechanism adopts Pushing big structure Double hydraulic cylinder, Hydraulic lifting system and operation system etc.

Tipper truck Optional Configuration: 1.Middle-loading double hydraulic cylinder. 2.Cargo box material thickness. 3.Cargo box height. 4.With cover seal type. 5.Box body side dump.

Brand new tipper truck Series produced by our factory: Dump truck,U dump truck,Side dump truck,Dump semi trailer.

Dump truck for sale optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Wheel dumper Selective Capacities:3CBM~60 CBM.

Tipper trucks from china Advantage is Smooth lifting, Multiple functions and easy operation.

We are a professional truck tipper dump manufacturer and can produce all kinds of big dumper truck.You can customize dumper 3 ton, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have big dump truck price(see left contact information).
