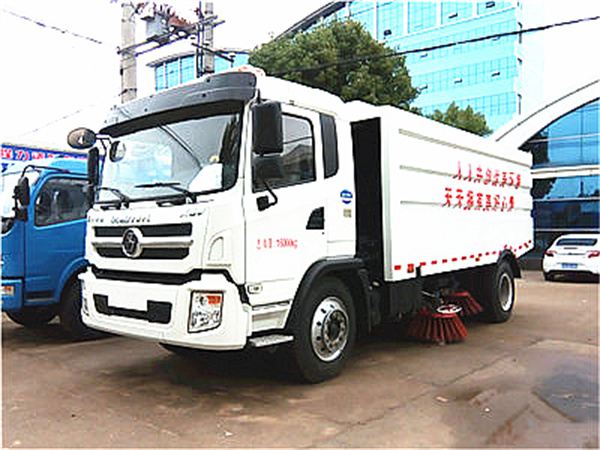

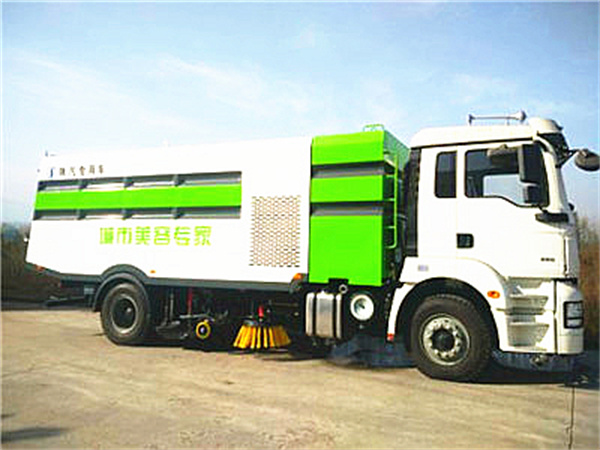

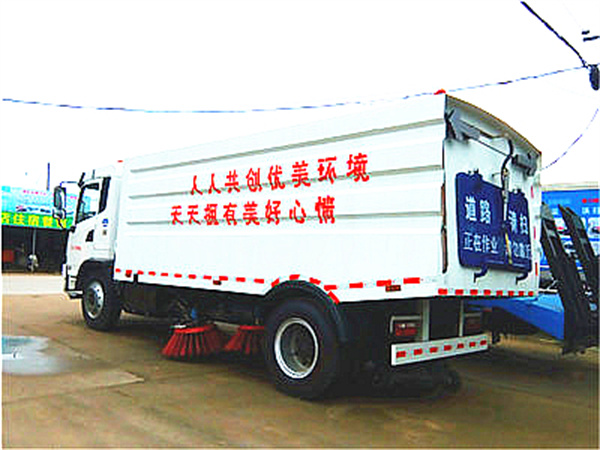

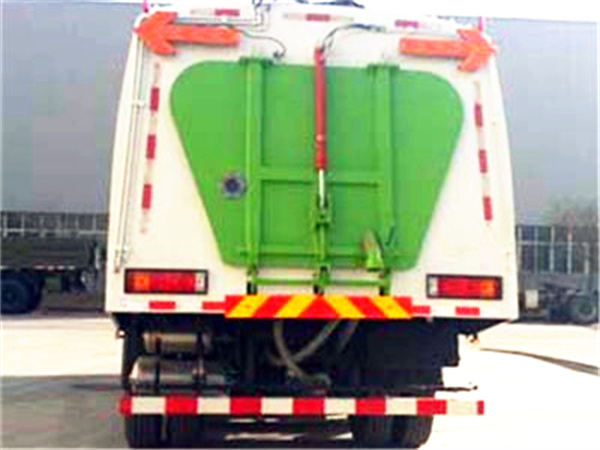

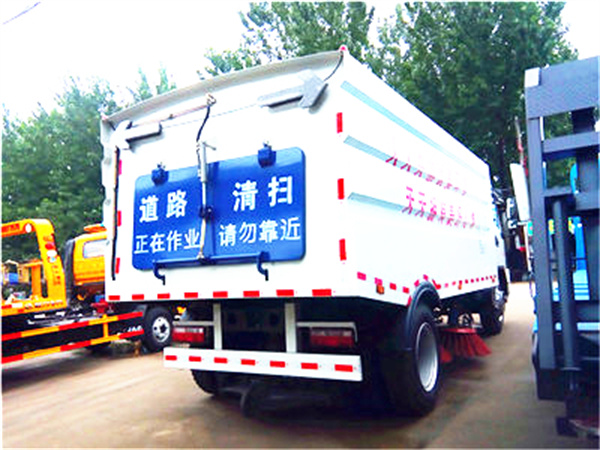

Shacman road sweeper truck and wash-cleaning sweeper truck 16cbm

Wash sweeper truck, as one of the sanitation equipment, is a new and high-efficiency  flushing and sweeping equipment for road surface, truck sweeper and water hjet cleaner can also flush and sweep road surface, suck dust,collect garbage and transport. Truck street sweeper and water jets is widely used in highway, municipal and airport road etc.

Shacman road sweeper truck and wash-cleaning sweeper truck 16cbm

Model: CLW5180

Curb weight: 11970Kg

Overall dimension: 8820*2510*3060mm

Sweeper cleaning truckChassis Configuration: Shacman 4x2 chassis SX1189, row half cab with left/right hand drive optional and A/C,5m wheelbase,210HP Engine,8-speed gearbox with manual, front bridge 4.8T/ rear bridge 10T, 10.00R20 tire.

Road sweeper truck cleaning Top Configuration:

1. Tank volume: water tank 9cbm and garbage box 7cbm.Tank material: stainless steel.maximum sweeping width: 3.5M.Washing pressure:10Mpa.suction granularity: φ120mm.maximum operation ability: 48000㎡/h.cleaning speed: km/h 15~20.Dustbin incline angle:≥45°.Sweeping efficiency≥96%.Working Noise:meet the standard GB7258.

2.  Equipped with vice engine(cummins 170HP).

3.  Equipped with dust fall system, hydraulic system, electrical system; Fan system; Sweeping system, suction nozzle device, other configuration.

①.Dust fall system:German high pressure water pump;water filter; pileline; Stainless steel spray frame and high pressure spray nozzle；left and right sweep plate;PLC one-click control;

②.Hydraulic system:open type,Centralized control of electric control;gear pump；Japan gerotor motor； hydraulic cylinder；electromagnetic valve;integration block;high presure pump；Germany shockproof pressure gauge；return oil filter；System overflow pressure 10-12Mpa;

③.Electrical system:Chassis system voltage 24V;Working device system voltage 12V;Electric control box panel composition(The auxiliary machine tachometer, auxiliary machine water temperature meter, oil temperature alarm device, various operation control switch).

④.Fan system：Special high pressure centrifugation fan;Rated work rotation 2700r/min;wind capacity 5000~7800m3/h ;

⑤Sweeping system：left and right sweep tray can be lowered and outstretched and Sweep tray holder,oil cylinder, oil tubing, connecting rod, adjusting rod, hydraulic motor.

⑥Suction nozzle device:It consists of suction nozzle, roller and sucker;Suction nozzle body move follow-up road surface.Hydraulic drive electrical automatic control suction lift, spring float;suction nozzle ground clearance is 5~8mm during working;Suction wind speed 50~65m/s;suction nozzle negative pressure 380mmH2O.

⑦.Other configuration：voice alarm system;assist opration system;The tail belt electric control operating system, control big box lifting and backdoor switch.Italian motor,Stainless steel dustbin,Tail LED arrow lights.

Road sweeper and washing truck Optional Configuration: 1.monitoring system; 2.vice engine：JMC or Dongfeng chaoyang/cummins diesel engine. 3.Tail LED screen. 4.push snow shovel. 5.fence cleaning device.

Sweeper truck Series produced by our factory: Road Sweeper Truck(wet cleaning), Washing Sweeper Truck and Vacuum Sweeper truck(dry cleaning ).

Road sweeper truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Street sweeper truck Tank capacity: water tank 0.5~12CBM, garbage capacity 1.5-15CBM

Max sweeping width 3.5M, sweeping speed 3-15 km/hour,sweeping efficiency>96%,Max granule suction 120 mm.

Street road sweeper truck Selectable vice engine brand：cummins, Yuchai, JMC,Chaochai,Cloud Power and LNG

Road cleaning sweeper truck Advantage is flushing sweeper truck has the function of flushing, sweeping, sucking etc.

We are a professional sweeper vehicles manufacturer and can produce all kinds of truck mounted sweeper. You cancustomize 4x2 sweeper cleaning truck, we can satisfy all your requirements of truck sweeper.Please feel free to contact me If you have any questions about truck mounted road sweeper and want to have price of road sweeper truck(see left contact information).
