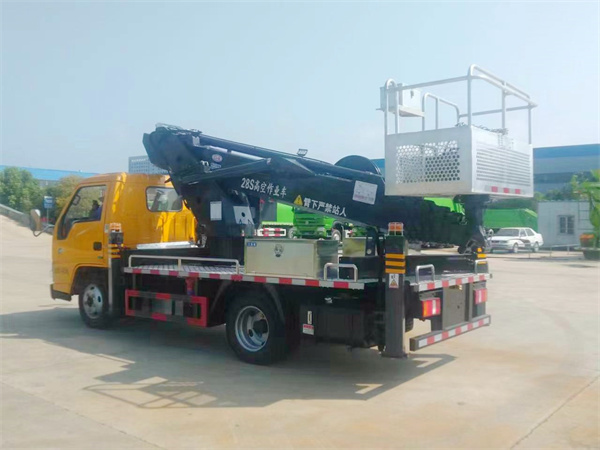

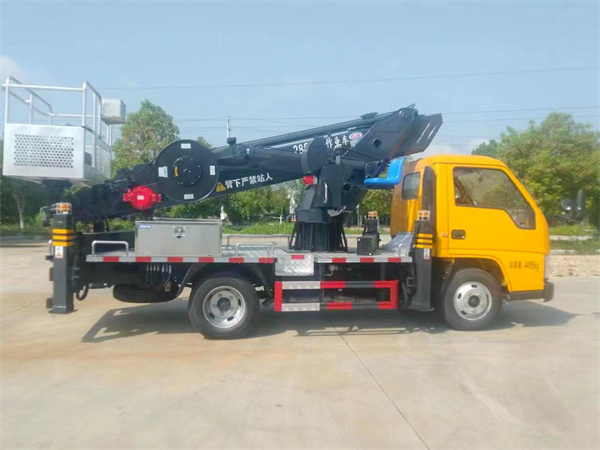

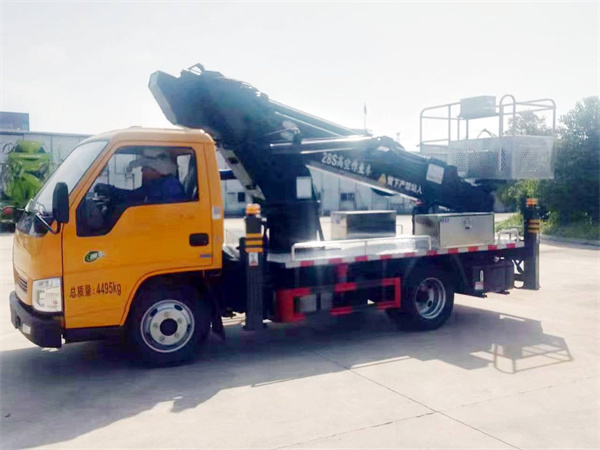

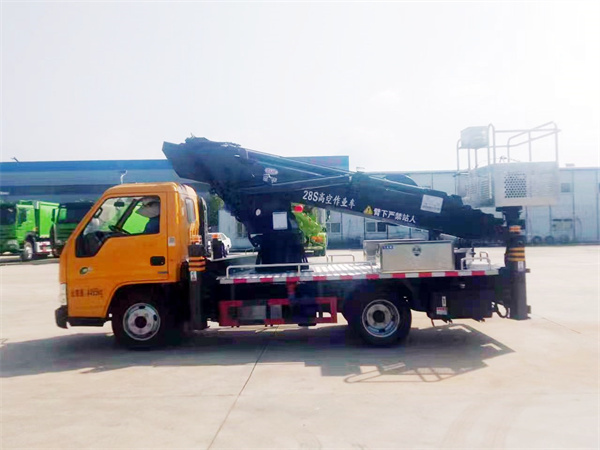

JMC aerial working truck-high-altitude operation trucks telescopic 29m

High-altitude operation trucks is mailly used for maintenance , installation , cleaning , photography , shipbuilding , chemical industry , electric power, pruning, replacement of street lamps, engineering repair homework and other high-altitude operation.Bucket trucks is suitable for narrow road and street alley job,municipal administration,gardens,transportation.

JMC aerial working truck-high-altitude operation trucks telescopic 29m

Model: CLW5046

Curb weight: 4365Kg

Overall dimension: 5998*2050*3100mm

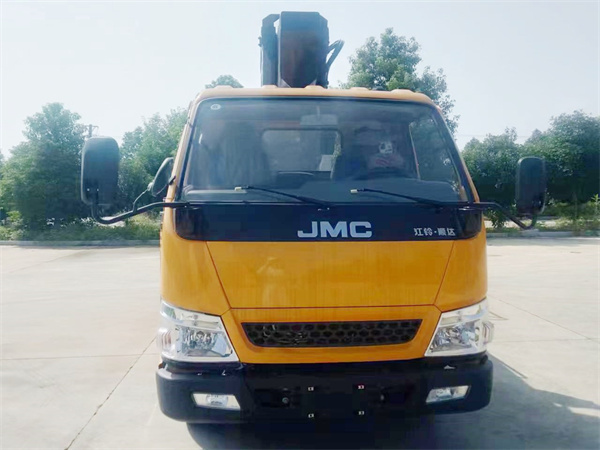

Isuzu aerial work platform truck: JMC 4x2 chassis JX1041,single row with left/right hand drive optional and A/C.3.36m wheelbase,115HP Engine,5-speed gearbox with manual, front brige 2.5T/ rear brige 3.5T, 700R16 tire.

Aerial lift trucks Top Configuration:

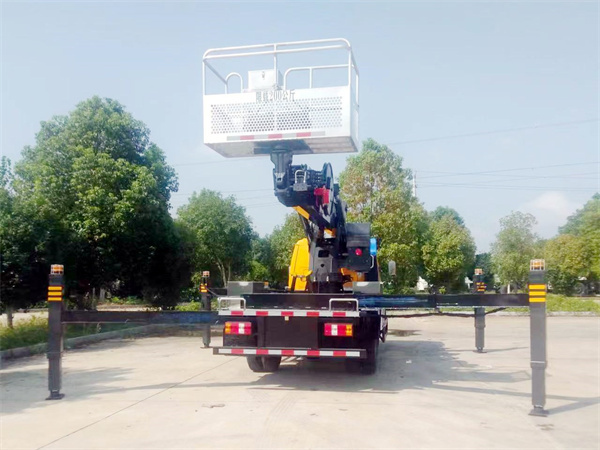

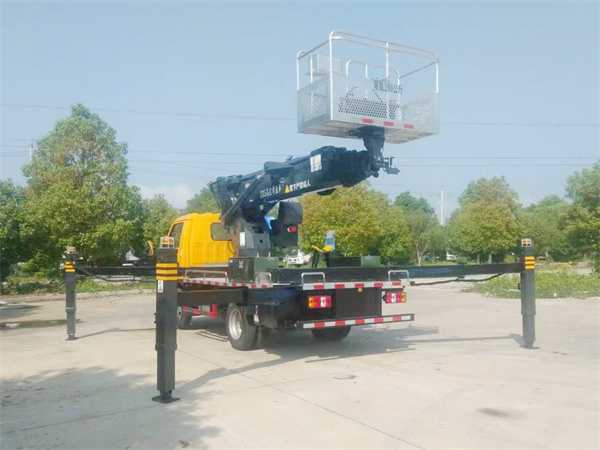

1.High aerial platform truck:The rated load of working bucket for telescopic arm aerial working truck is 200KG.The maximum working height is 29 meters.The maximum working range is 11 meters.The working range is 5m for maximum working height.The working height is 5M for maximum working range.Leg span is 4.2M transverse and 4M longitudinal..

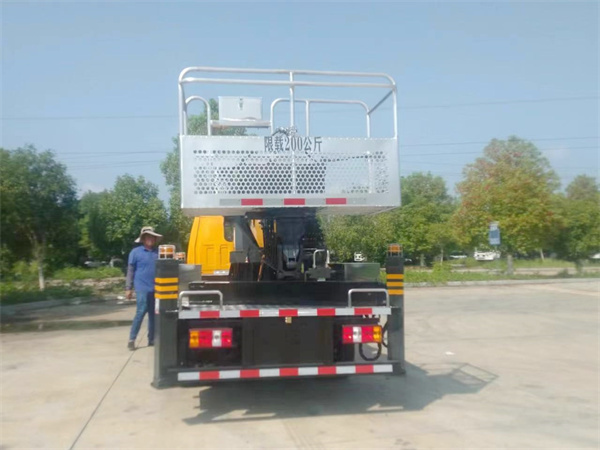

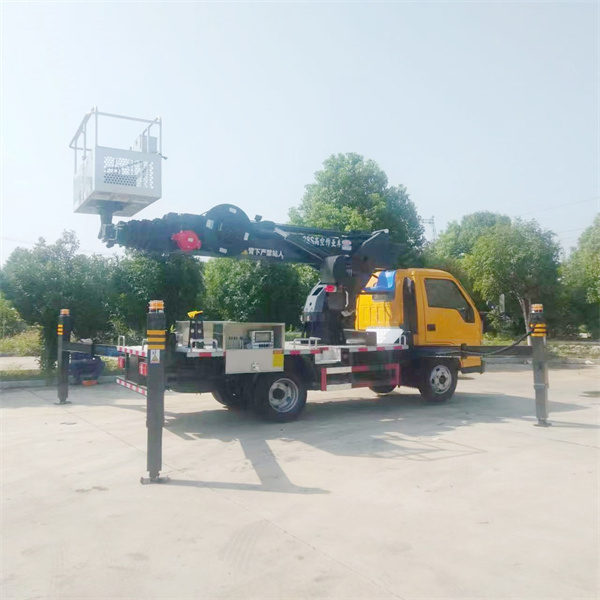

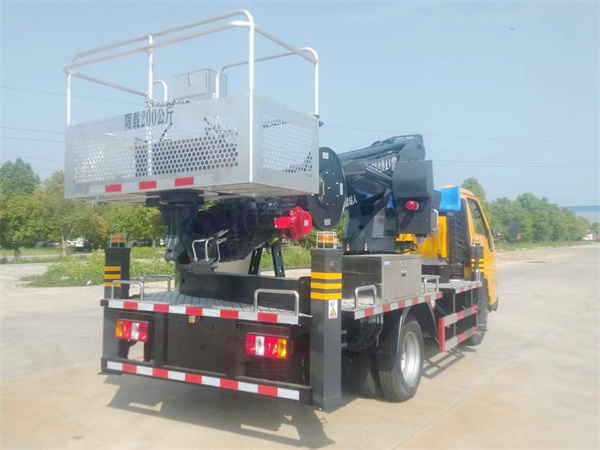

2. Aerial work platform truck:Stainless steel fence and anti-slip platform; PTO is mechanical operation; High strength stainless steel working bucket size is 1500X700X1000mm;Three-section hexagon type working arm synchronous telescopic; 360-degree continuous rotating device;Front V rear H type legs can be individually controlled; Electronic control operation and manual emergency operation; CAN control system; Wireless remote control for stepless speed regulation; Hydrostatic automatic leveling.

3.Aerial truck:Safety configuration: automatic interlock device, manual emergency pump, emergency stop device of working platform, automatic limit working range, "false ground" limit work, night safety warning device, engine ignition and shutdown, "forced" operation function.

Aerial platform truck Optional Configuration: 1.emergency power.2.homework bucket lined with insulation.3.Remote control system could control truck engine starting/stopping, save energy when the truck fixed-point working.

Vehicle mounted aerial work platform Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Bucket truck aerial working platform Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Aerial work truck Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Telescopic aerial working platform truck Advantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;energy save;flexible motion.

We are a professional truck mounted aerial work platform manufacturer and can produce all kinds of truck mounted aerial platform.You can customize street light crane, we can satisfy all your requirements.Please feel free to contact me If you have any questions(see left contact information).
