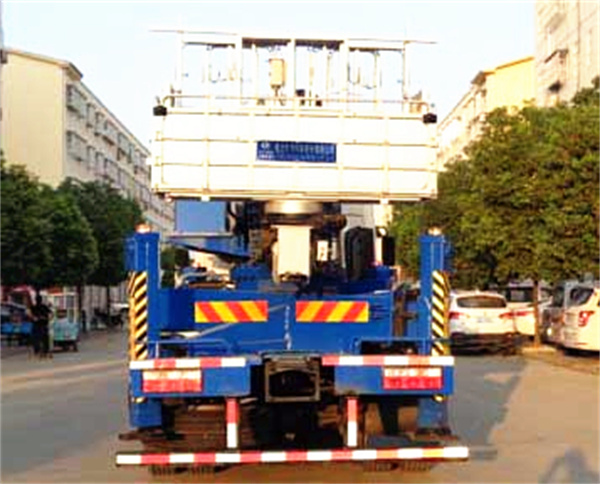

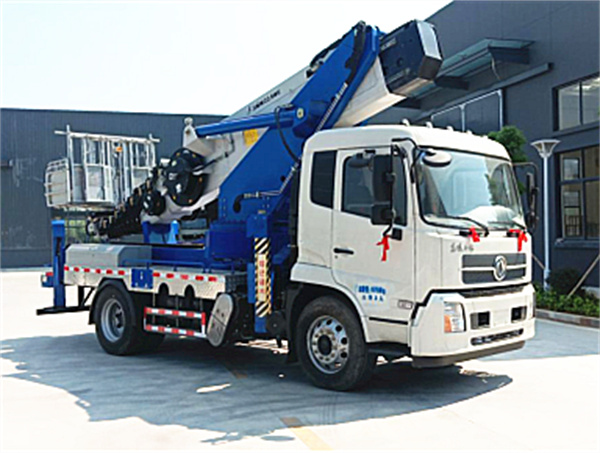

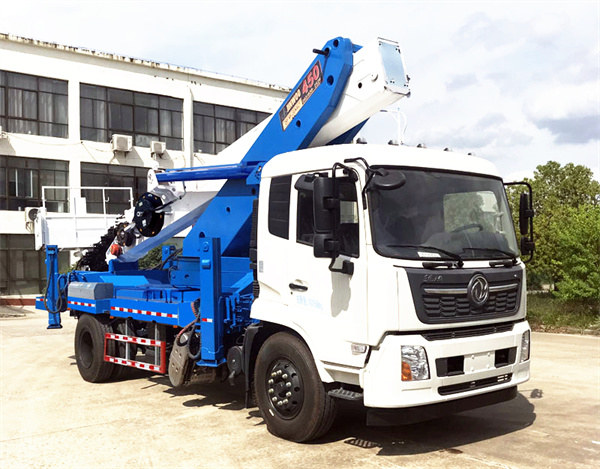

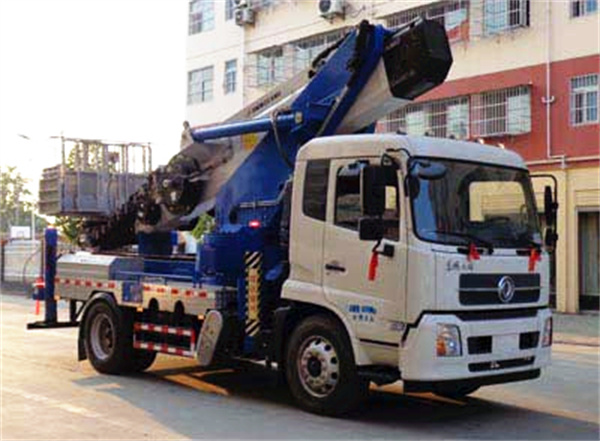

Dongfeng aerial working truck-high-altitude operation trucks telescopic 29m

High-altitude operation trucks is widely used in municipal, electric power, street lights, advertising, communications, photography, landscape, shipbuilding, transportation, docks, airports and ports, rescue, large industrial and mining enterprises and other industries installation and maintenance and climbing operations.

Dongfeng aerial working truck-high-altitude operation trucks telescopic 29m

Model: CLW5170

Curb weight: 16620Kg

Overall dimension: 9705*2500*3990mm

High aerial platform truck Chassis Configuration: Dongfeng 4x2 chassis DFH1180, row half cab with left/right hand drive optional and A/C, 3950mm wheelbase,190HP Engine,6 speed gearbox with manual, front brige 4.5T/ rear brige 9T, tire 10.00R20.

Aerial lift trucks Top Configuration:

The rated load of working bucket for telescopic arm aerial working truck is 200KG and size is 1500X700X1000mm;  The maximum working height is 29 meters. The maximum working range is 22 meters. The working range is 2m for maximum working height.The working height is 15.7M for maximum working range. The maximum working Angle of the platform is 80°. 4pcs front V rear H type legs. Stainless steel fence and anti-slip platform。Operation position: turntable, wireless remote control operation. Control form: ZYK bus control system, electro-hydraulic proportional control system, to achieve stepless speed regulation.Stainless steel fence and anti-slip platform;Boom structure form: six sections (29 m) working arm, synchronous telescopic.Rotating device: two-way 360-degree continuous rotation, lifting basket 360° rotation.

1.Aerial work platform truck: 29 meters high altitude working car with telescopic straight arm structure, imported from South Korea, operation arm for 6 sections of telescopic, turntable can be operated, can also be operated by remote control, 360 degree rotation, four hydraulic legs, work bucket maximum bearing weight of 200 kg, stainless steel coiling plate, pattern non-slip platform.

2. Aerial truck:The work bucket adopts mechanical self-balancing design, its function is that the work bucket is always in a balanced state when working. The forearm can be extended at a maximum Angle of 80° for optimal working position.

3. Aerial platform truck: Night operation lights, the operating platform can be selected according to the customer's operating environment, so that night work safer.

4. Vehicle mounted aerial work platform: Computer control, automatic limiting, dangerous work alarm, excellent safety performance. There is a display on the car, which displays the working condition of the vehicle in real time.

5.Truck lift platform: Hexagonal working arm increases strength, synchronously telescopic, compact structure, high working efficiency and large working range. Telescopic cylinder external, chain telescopic mechanism, easier to observe the fault point, convenient maintenance.

6.Bucket truck aerial working platform: The supporting leg adopts the front V and back H type structure, which has larger force surface and higher stability. Can prevent the girder deformation or fracture. Each leg can be adjusted separately according to the ground environment of the operation. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state. All legs are equipped with leg alarm flashing lights, which are used to show the outline of the legs and send out optical alarm signals during the operation.

7. Aerial work truck:The four vertical leg cylinders and the upper arm, lower arm and forearm cylinders are equipped with two-way hydraulic locks, whose function is to lock the cylinder when the cylinder reaches the required position to prevent accidents. The working arm is equipped with a bidirectional balance valve to make the working arm run more smoothly.

8. Truck mounted aerial work platform air condition: The main components such as bidirectional hydraulic lock, bidirectional balance valve with lock, fluid flow valve, hydraulic cylinder, engine start and stop emergency pump, operating system and control computer are all made of domestic well-known brands, and the core components are imported. Smooth commutation, flexible and convenient operation; Support leg and working arm interlock, safe and reliable, prevent misoperation.

Truck mounted aerial work platform Optional Configuration: 1.emergency power.2.homework bucket lined with insulation.3.Remote control system could control truck engine starting/stopping, save energy when the truck fixed-point working.

Self-propelled manned aerial work platform Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Aerial working platform truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Bucket trucks Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Telescopic aerial working platform truck Advantage is Cheng Li brand straight arm aerial work truck working height of 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 21 meters, 22 meters, 28 meters, 29 meters, 45 meters, the use of full telescopic working arm, leg span, good stability, can be operated at the same time or alone, safe and reliable, compact structure, easy to operate. It has fast lifting speed and high working efficiency. With flexibility, it can also work flexibly in tight tall buildings, and it is the leader of aerial work vehicles, leading the new trend of the industry.

We are a professional street light crane manufacturer and can produce all kinds of high-altitude operation trucks.You can customize 21m 23m 25m 29m 38m 45m aerial work platform truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions(see left contact information).
