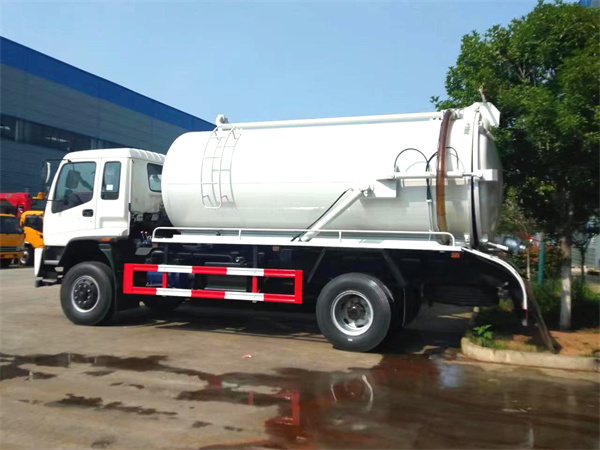

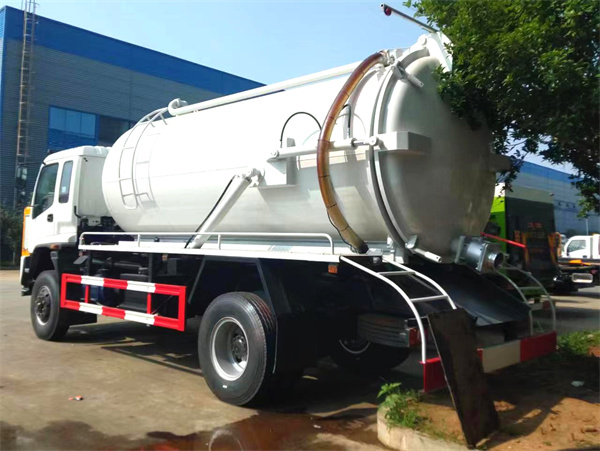

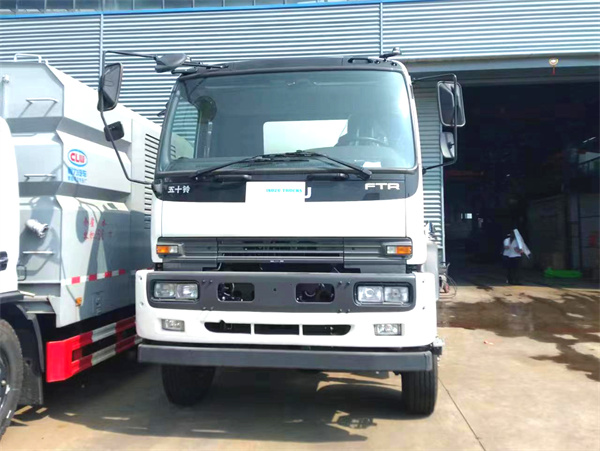

ISUZU sewage suction truck-sewage truck 15cbm

Vacuum truck sewage suction is used for sucking fecal,sewage,mud,liquid mixed with tiny granules,sewer sediments(such as: silt, stones, bricks and other big objects) and urban water wells. Vacuum sewage suction truckis widely used in large, medium and small towns sanitation, municipal, agricultural and chemical industry, factories and mines enterprises, property management community,especially apply to transport household waste in residential area.

ISUZU sewage suction truck-sewage truck 15cbm

Model: CLW5182

Curb weight: 10410Kg

Overall dimension: 8445*2530*3890mm

Japan sewage vacuum truck Chassis Configuration: ISUZU 4x2 chassis QL1180,Row half cab with left/right hand drive optional and A/C,4500mm wheelbase,Isuzu 205HP Engine,6 speed gearbox with manual,  front brige 6.3T/ rear brige 13T, tire 1100R20.

Isuzu sewage truck Top Configuration:

1. Sewage pump truck Tank volume: 11~15m³, round tank is made by 5-6mm special steel plate

2. Sewage suction truck 9cbm: Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise,Time for full suction<5min.),sewage pipes,self-draining valve,liquid level tube for view window, vacuum pressure gage,overflow valve, PTO,transmission shaft, moisture separator,oil-gas separator,multiple directional control valve,cleaning equipment, pipe network system, high quality hydraulic system and so on.

3. Sewage drainage truck tank can be lifted  up  45° by  double hydraulic cylinder, and the rear lid also can be opened, so the truck can dump the sewage directly through the rear lid out of the tank.

Sewage tank trucks Optional Configuration: 1.The tank can be made by corrosion resistant plate or done professional anti-corrosion.2.We can use the brand of vacuum pump you specified.3.Cleaning function.

Sewage trucks for sale Series produced by our factory: Sewage Suction Truck and Sewage Suction Cleaning Truck,Fecal  Suction Truck and Fecal  Suction Cleaning Truck.Sewage Trailer.

Suction tank truck sewage suction Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Sewage truck vaccum suction pump and engine driven Tank capacity: 3-20CBM

Sewage transport truck Advantage is Equipped with high efficiency pump and self-priming and self-draining system.

We are a professional china sewage sucking truck manufacturer and can produce all kinds of new sewage suction truck.You can customize clean sewage suction truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have sewage suction truck with vaccum truck price and cheap sewage suction pump truck(see left contact information).
