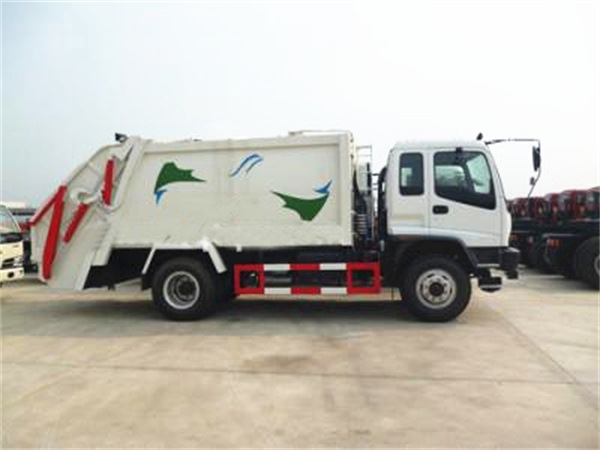

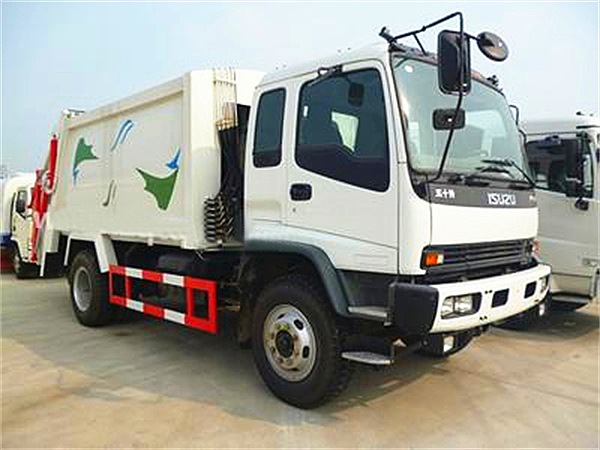

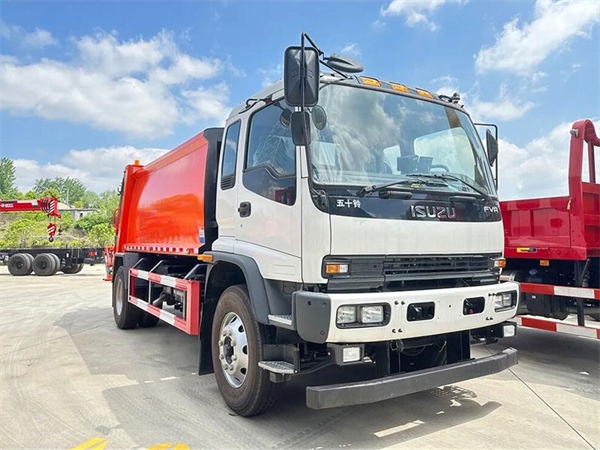

ISUZU garbage truck price-garbage compactor truck 15cbm

Garbage truck is also called garbage collecting truck, garbage transport truck. Garbage compactor truckis mainly used for the sanitation department of municipal and large-scale factories and mines.Compacting garbage truck can transport a variety of garbages and bulk building materials(such as:ash , sand , stone and soil), ore and coal in mines and coal mine.Compactor garbage truck is especially suitable for transport household garbage in residential area.

ISUZU garbage truck price-garbage compactor truck 15cbm

Model:CLW5180

Curb weight: 12870Kg

Overall dimension: 8915*2545*3380mm

ISUZU garbage truck Chassis Configuration: Isuzu 4x2 chassis QL1180, row half cab with left/right hand drive optional and A/C;4.5m wheelbase,205HP Engine,6-speed gearbox with manual, front bridge 6.3T/ rear bridge 13T, 295/80R22.5 tire.

15 m3 garbage truck Top Configuration:

1.Garbage truck compactor rear loader Dustbin volume:8~16cbm, it is made of carbon steel plate.

2.Garbage compactor truck 15 tm Equipped with front push back pressure,vice press plate,sewage box, electric control operation.Compressed dustbin is couplet body type,external power source work,overturn feedstock, compression push board in dustbin, rear lock door and tipping bucket, hydraulic electric system and etc.

3.Garbage compactor truck adopt machine,electricity,liquid linkage control system, computer control and manual operation system, realize rubbish into,crush or press flat through loading device and push shovel,and then squeeze garbage into the dustbin,compaction and push unloading.

4.Compactor garbage truck price is constructed with 12# low alloy steel and 5mm,4mm,10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed .All the waste water can go directly into the sewage tank,so as not to corrode the body and the chassis.Morever,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.The garbage tank compacts the waste by a hydraulically powered mechanism,which employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall.

5.12m3 compactor garbage truck Equipped with two sets of hydraulic operation systems.Types of collect garbage: barrel collecting,bucket collecting,box collecting.

10m3 garbage compactor truck Optional Configuration: 1.Rear turnover mechanism; 2.Back swing arm mechanism; 3.Hopper; 4.Side compression with draw bar hoisting mechanism,rear hydraulic door,with compression function in dustbin; 5.Compressor;6.Rear cover.

Garbage Trucks Series produced by our factory(garbage truck is divided into the following categories according to loading and unloading type): Garbage compactor truck, Hook arm garbage truck, Hanging bucket garbage truck, Sealed garbage truck, Swing arm garbage truck, Compactor and Docking garbage truck, Kitchen garbage collecting vehicle,mobile compression bin, Rubbish compressing station and so on.

8 ton garbage truck Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Garbage Truck Selective Capacities:3CBM~20 CBM.

Big Garbage Trucks Advantage is collection way of 8 cubic meter compactor garbage truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable.

We are a professional chinese truck manufacturer and can produce all kinds of garbage truck.You can customize garbage truck, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have price truck garbage new(see left contact information).
