Dongfeng 4x2 oil tank truck 5000 liters fuel tank truck oil tank small

HOT TAGS:China,manufacture,supplier,factory,customized,cheap,price,fuel tanker truck,oil tank truck,aluminum fuel tanks for trucks,mobile fuel truck,isuzu oil tank truck,howo fuel tanker truck,shacman fuel tank truck,aluminum alloy fuel tanker truck trailers,small fuel truck,35000 liters capacity fuel tank truck,65000 liter fuel oil tank truck sale,20000 liters fuel tanker truck,40000 liter fuel tank trucks,25000 liters fuel tank truck,30000 liters fuel tank truck for sale,16000 liters capacity fuel tank truck,fuel tanker truck 60m3,dongfeng fuel tank truck,faw fuel truck,foton fuel tank truck,heavy duty truck fuel tanks,fuel tank truck semi trailer,50ton fuel tanker truck trailer,fuel tank truck,fuel truck,truck fuel tank,mobile fuel dispenser truck

Fuel vehicle mainly used for all kinds of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil) transportation and storage.Fuel-tank-truck has a variety of refuel or oil transport function according to different purpose and use of the environment.

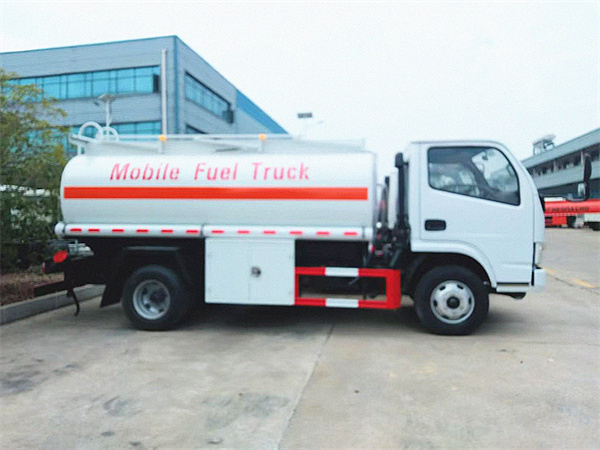

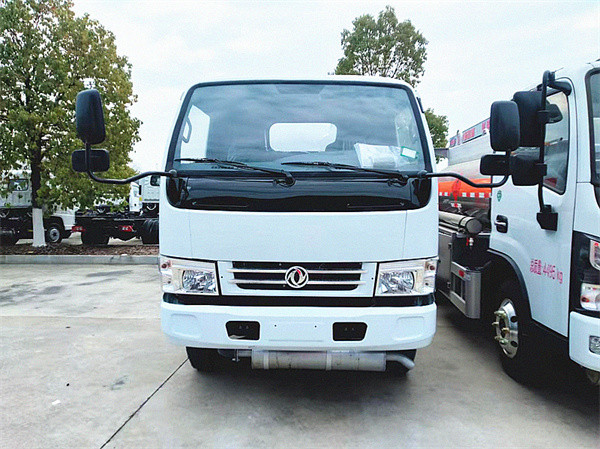

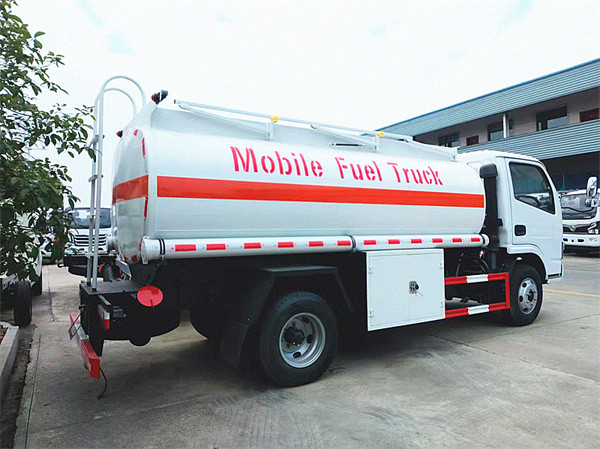

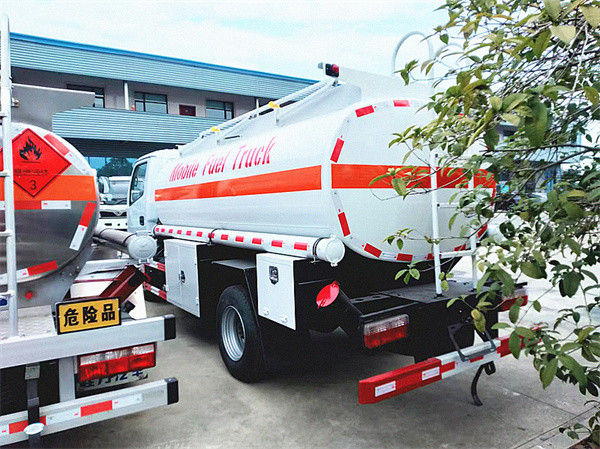

Dongfeng 4x2 oil tank truck 5000 liters fuel tank truck oil tank small

Model: CLW5071

Curb weight: 3915Kg

Overall dimension: 5990*2000*2600mm

Dongfeng fuel tank truck Chassis Configuration: CLW 4x2 chassis CLW1070,single row cab with left/right hand drive optional and A/C,3.3m wheelbase,90~140HP Engine,5-speed gearbox with manual,front brige 2T/ rear brige 4T, 7.00R16 tire.

5 ton fuel tank truck Top Configuration:

1. fuel efficient vehicles tank valume: 3~6CBM;round or square;tanker material:4-6mm carbon steel.

2. fuel tank for 3 ton trucks Equipped with sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,Safety valve and so on.

3.mobile-fuel-vehicle:Built-in type oiling machine, separate parts for different oils,out and in through pump,self-flow.

4000 liters truck fuel tank Optional Configuration: 1.Tanker material: stainless steel,aluminium alloy and carbon steel. 2.Pump:centrifugal pump,gear pump,copper core gear pump,stainless steel pump,Aluminium alloy pump. 3.Measurement:Mechanical flowmeter or vehicular tax-controlled computer oiling machine. 4.Under installation oil gas recycling. 5.Emergency shutdown valve. 6.Multichannel wave plate in tank. 7.GPS. 8.Electromagnetic valve. 9.Pneumatic valve. 10.Visual operating system. 11.External power. 12.Movable rail on top of tank. 13.15m TLJP(self-return). 14.ABS,the front dish and rear drum,the speed limit device. 15.Overflow prevention alarm. 16.Breathing valve. 17.Manhole cover QTY and heightening and locking. 18.API valve. 19.Liquid level gauge. 20.Refueling gun.

Fuel-tank-truck Series produced by our factory: Refueling truck,transporting oil truck and Oil transported semi-trailer.

Diesel fuel delivery trucks Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Fuel bowser truck Selective tank Capacities:5CBM~60 CBM.

Oil tanks for trucks Advantage is tank high strength,stable center of gravity,transporting safety.Three kinds of oil can be transported.

We are a professional fuel tank for vehicle manufacturer and can produce all kinds of fuel bowser tanker truck.You can customize truck alloy fuel tanks, we can satisfy all your requirements of tank truck with oil pumps.Please feel free to contact me If you have any questions and want to have fuel truck price(see left contact information).
