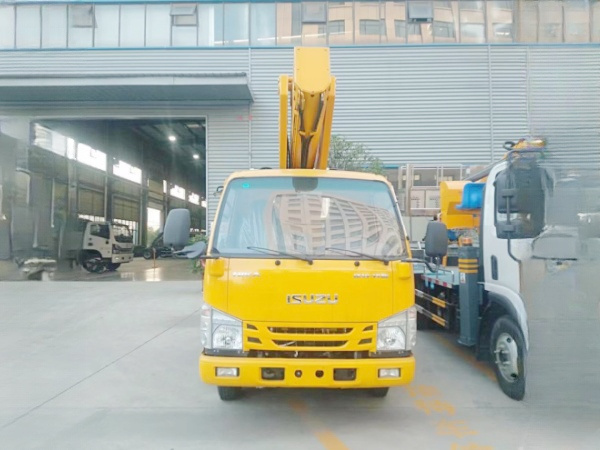

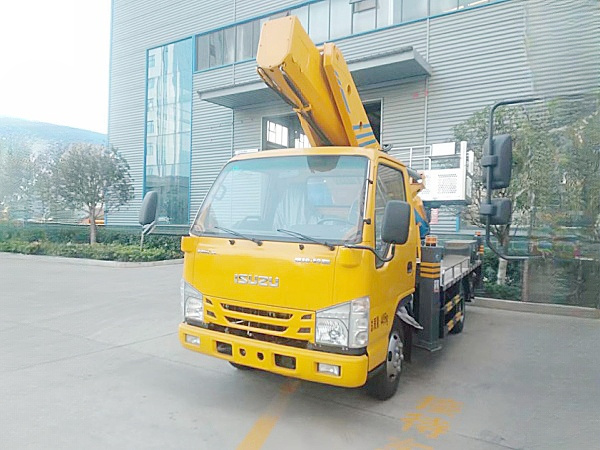

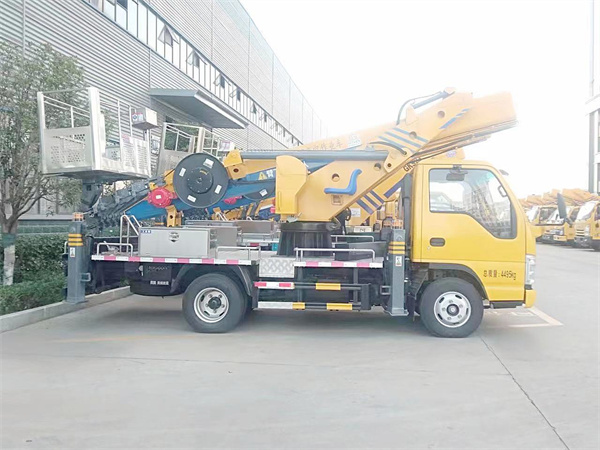

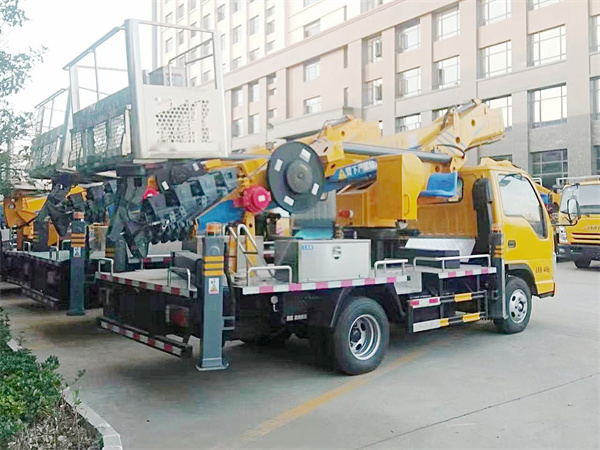

ISUZU aerial working truck-high-altitude operation trucks telescopic 18~22m

Aerial working truckis mailly used for maintenance , installation , cleaning , photography , shipbuilding , chemical industry , electric power, pruning, replacement of street lamps, engineering repair homework and other high-altitude operation.High-altitude operation trucksis suitable for narrow road and street alley job,municipal administration,gardens,transportation.

ISUZU aerial working truck-high-altitude operation trucks telescopic 18~22m

Model: CLW5047

Curb weight: 4365Kg

Overall dimension: 5990*2090*3150mm

Isuzu aerial lift trucks Chassis Configuration: Isuzu 4x2 chassis QL1070,single row with left/right hand drive optional and A/C.3.36m wheelbase,120~130HP Engine,5-speed gearbox with manual, front brige 2-2.5T/ rear brige 4.8T, 700R16 tire.

High aerial platform truck Top Configuration:

1.Aerial truck:The rated load of working bucket for telescopic arm aerial working truck is 200KG.The maximum working height is 18~22 meters.The maximum working range is 11 meters.The working range is 5m for maximum working height.The working height is 5M for maximum working range.Leg span is 4.2M transverse and 4M longitudinal..

2. Aerial platform truck:Stainless steel fence and anti-slip platform; PTO is mechanical operation; High strength stainless steel working bucket size is 1500X700X1000mm;Three-section hexagon type working arm synchronous telescopic; 360-degree continuous rotating device;Front V rear H type legs can be individually controlled; Electronic control operation and manual emergency operation; CAN control system; Wireless remote control for stepless speed regulation; Hydrostatic automatic leveling.

3.Aerial work platform truck:Safety configuration: automatic interlock device, manual emergency pump, emergency stop device of working platform, automatic limit working range, "false ground" limit work, night safety warning device, engine ignition and shutdown, "forced" operation function.

Aerial work truck Optional Configuration: 1.emergency power.2.homework bucket lined with insulation.3.Remote control system could control truck engine starting/stopping, save energy when the truck fixed-point working.

Aerial working platform truck Series produced by our factory: Folding arm type high altitude operation truck;Tlescopic boom type high altitude operation truck;  Aerial work platform truck; Aerial ladder high altitude operation truck etc..

Aerial lift trucks Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Working height of bucket trucks:

6m,8m 10m,12m,13m,13.5m,14m,16m,17.5m,18m,20m,21m,22m,23m,24m,28m,29m,30m,32m,33m,36m,45m.

Bucket truck aerial working platform Advantage is Construction easy;sturdy and durable;convenience operation;steady,safe and effective;energy save;flexible motion.

We are a professional truck mounted aerial platform manufacturer and can produce all kinds of truck lift platform.You can customize self-propelled manned aerial work platform, we can satisfy all your requirements.Please feel free to contact me If you have any questions and want to have truck mounted aerial work platform price and cheap street light crane(see left contact information).
