Truck cranes for sale is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.

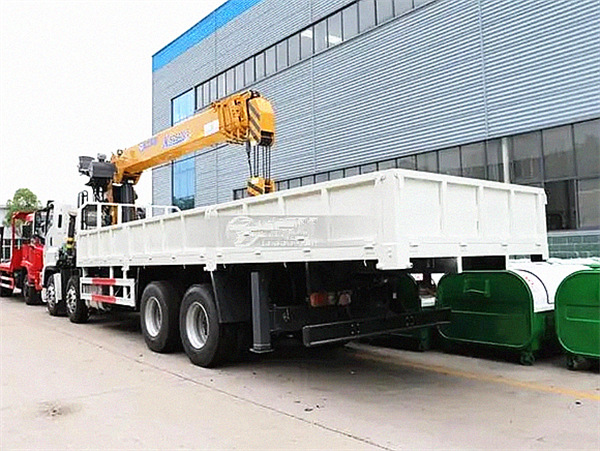

Isuzu truck with crane 8X4 truck crane crane truck 25 tons 16 ton crane

Model: CLW5312

Curb weight: 20600Kg

Overall dimension: 12000*2550*3950mm

Isuzu truck with crane Chassis Configuration: ISUZU GIGA 8x4 chassis,row half high roof cab with left/right hand drive optional and A/C,1850+4575+1370mm wheelbase,Isuzu 380HP Engine,12 speed gearbox with manual,front brige 9T/ rear brige 26T,front tire 385/65R22.5 rear tire 315/80R22.5.

16 tons truck mounted crane Top Configuration:

1.xcmg dump truck with crane 25 tons： Equipped with 16~25 tons 4~6 section straight arm crane, 7.5~8.6m length cargo box,front legs and etc..Crane rotation angle: positive and negative 360° hydraulic rotate. up,down,left,right operation.

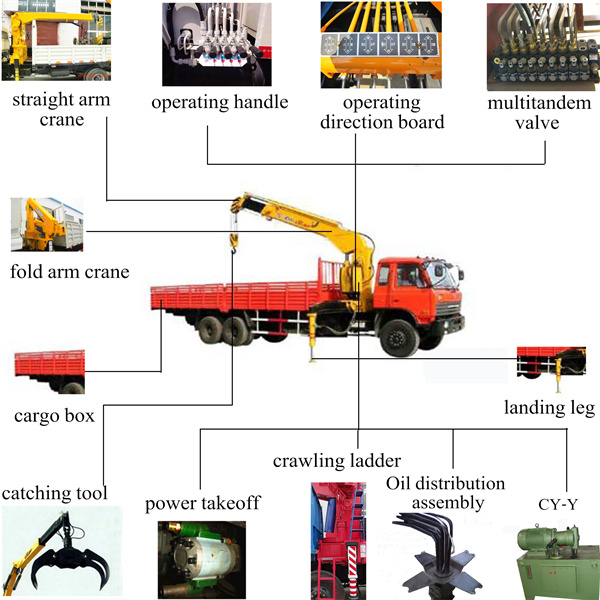

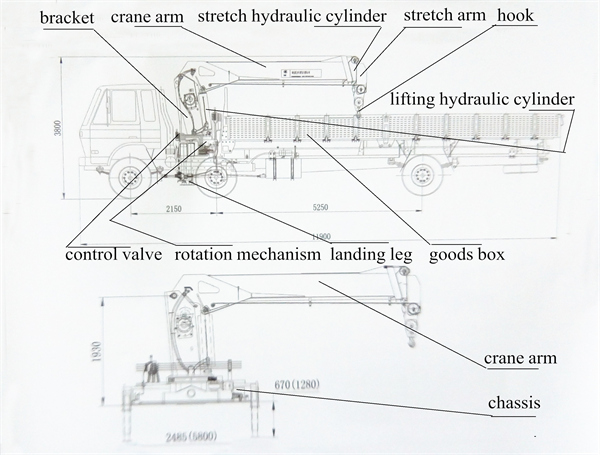

2. xcmg 16 ton truck crane:The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..

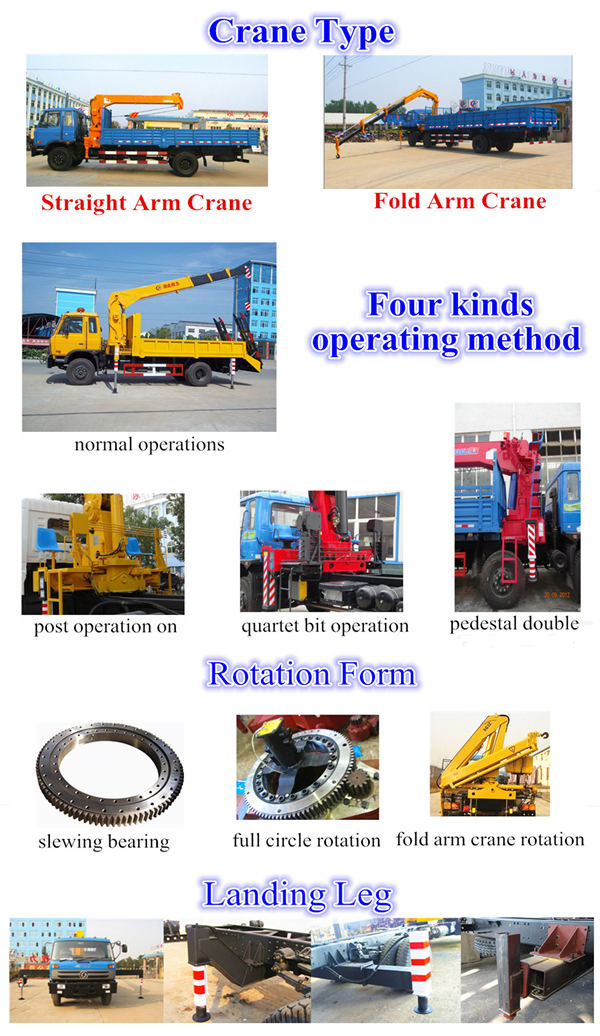

3.xmg 25 ton truck crane: Operation methods：a: ordinary operation.  b: double operation pedestal.  c: on the column operation.  d: square bit operation.

Xcmg crane truck Optional Configuration: 1. 16~25 tons folding boom crane.2. Rear landing leg:fixed,Hand pull type,hydraulic type.3. High chair.4. Water tanker. 5. Catch tool.

Basket crane truck Series produced by our factory: Crane, Truck with straight arm crane or folding arm crane, Autocrane.

Crane dump trucks Optional Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Hydraulic truck crane Straight Arm/Fold Arm Crane:2T, 3.2T, 4T,  5T, 6.3T, 8T, 10T, 12T,  14T, 16T,20T,25T and etc.

Truck mounted crane for sale Optional section: 2 section arm,3 section arm,4 section arm and multisection arm.

Autocrane: 30T~200T.

Truck loader cranes Length of cargo box:  2.6M~13M

Crane brand:XCMG,CLW,Stone coal and etc.

Xcmg 20ton crane truck Advantage is quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.

We are a professional xcmg truck crane manufacturer and can produce all kinds of crane truck. You can customize 15 ton truck mounted crane, we can satisfy all your requirements of xcmg 25ton truck crane.Please feel free to contact me If you have any questions about knuckle boom and want to have xcmg 25t truck crane price (see left contact information).
