E truck garbage is also called garbage collecting truck, garbage transport truck. Export and european and american garbage truck is mainly used for the sanitation department of municipal and large-scale factories and mines.Garbage truck big can transport a variety of garbages and bulk building materials(such as:ash , sand , stone and soil), ore and coal in mines and coal mine.Garbage truck trailer is especially suitable for transport household garbage in residential area.

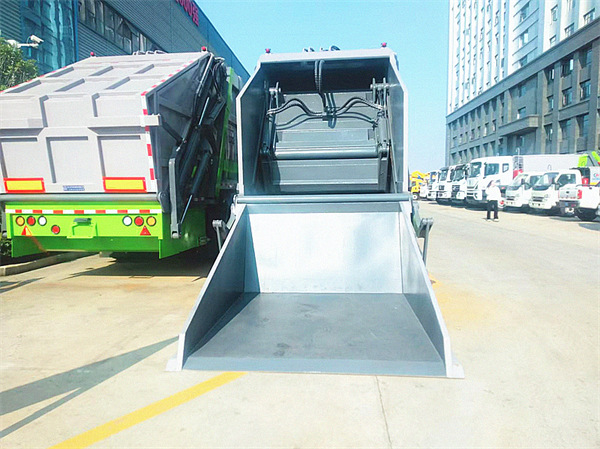

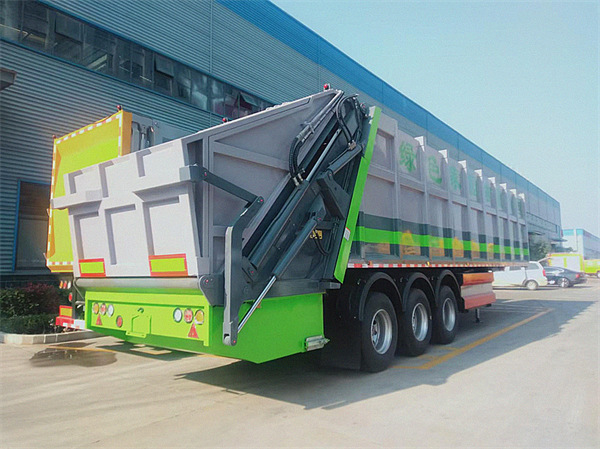

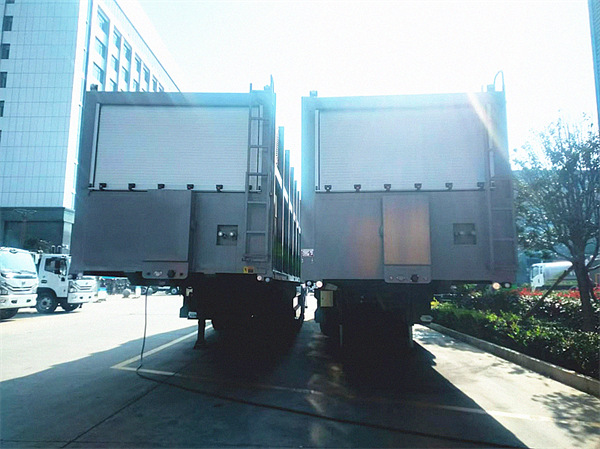

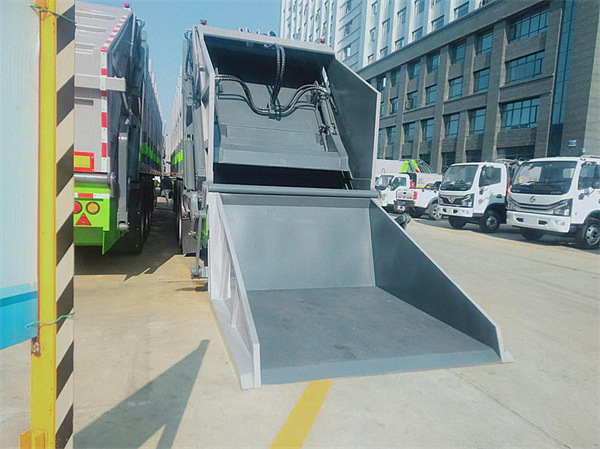

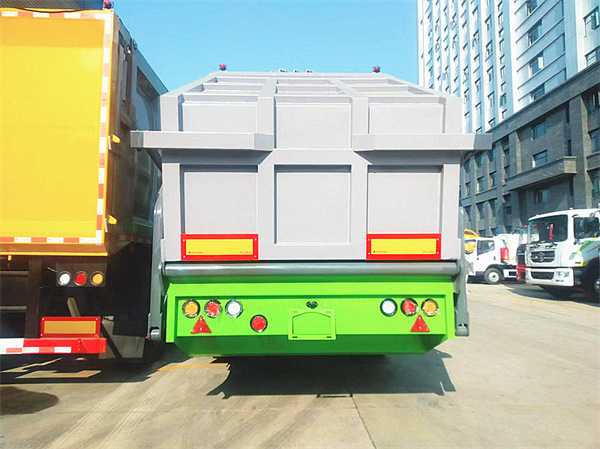

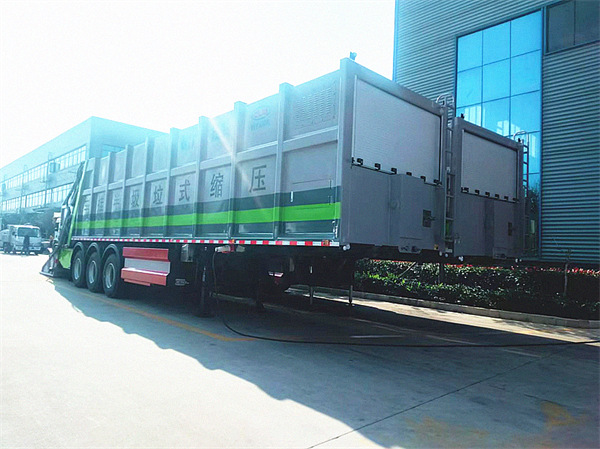

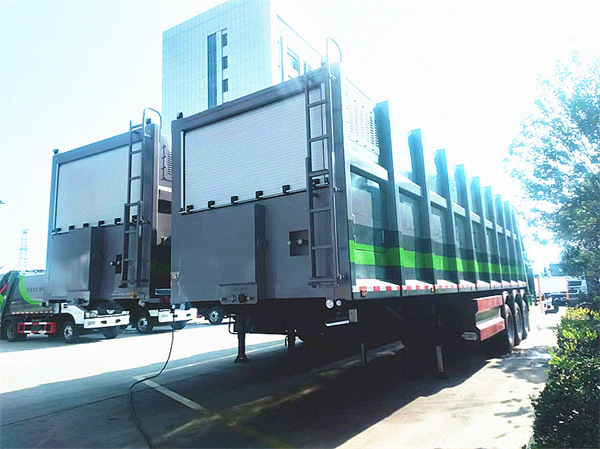

Trailer for garbage truck manufactuerer garbage compactor truck 50cbm

Model: CLW9400

Curb weight: 19500Kg

Overall dimension: 13610*2550*3998mm

Compactor garbage truck semi trailer Frame Configuration:

3pcs Axle: wheelbase 6090+1310+1310MM,Standard 13 tons Fuhua axle, drum brake *3pcs; Brake pads: 16T as standard; 12 pcs 12R22.5 Vacuum tire;

Suspension:180 mechanical suspension is standard; Leg: standard electric leg;

Traction pin: Standard for domestic 50# or 90# traction pin.

Turning radius: 8.00m-10.00m (for reference only). Takemi ABS; The appearance of the semitrailer including side lights, wheel base, wheelbase, box and trailer outer dimensions are made according to the requirements of the announcement.

Semi trailer garbage compactor truck Top Configuration:

1. Dustbin volume: 47~50m³,The side plate of garbage box is standard T700 high strength wear-resistant plate. Box side plate 6mm Bottom plate 8mm, guide rail 25mm thickened, scraper thickness 8mm, filler bottom plate 10mm, scraper plane thickness 8mm.

2. Installed electric hydraulic configuration: external 380V power supply power drive, scraper a single cycle of 27 seconds, scraper slide lift cylinder 110/63 thick, push the main cylinder with balance bracket, all cylinder shaft pins after quenching treatment, increase hardness is not easy to bend and break, install two sewage boxes, can be used as a clean water tank (optional 25m high pressure cleaning gun), 95 watt 4-stage motor equipped with load sensitive proportional valve system, low power loss, low system heat generation, prolonging the service life of hydraulic pump cylinder. Advanced visual electronic control system, with 250L high pressure filter, matching 250L hydraulic oil radiator, hydraulic tank volume 580L, high quality hydraulic tubing cylinder. The whole car adopts CAN intelligent display control, remote control and voice broadcasting. System fault automatic detection function, soft start motor thermal protector, equipped with leakage protection, to ensure personnel safety.

Urban garbage truck Optional Configuration: 1.Rear turnover mechanism; 2.Back swing arm mechanism; 3.Hopper; 4.Side compression with draw bar hoisting mechanism,rear hydraulic door,with compression function in dustbin; 5.Compressor;6.Rear cover.

Garbage truck turkey Series produced by our factory(garbage truck is divided into the following categories according to loading and unloading type): Garbage compactor truck, Hook arm garbage truck, Hanging bucket garbage truck, Sealed garbage truck, Swing arm garbage truck, Compactor and Docking garbage truck, Kitchen garbage collecting vehicle,mobile compression bin, Rubbish compressing station and so on.

Garbage truck dubai Chassis Brands: ISUZU,Sinotruk,Shacman,Dongfeng,FAW,CLW,Fonton,JMC,JAC,Chang'an,Steyr,Iveco,Hongyan and North Benz etc.

Garbage truck turkey Selective Capacities:3CBM~20 CBM.

Hyundai mega truck garbage Advantage is collection way of 8 cubic meter compactor garbage truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable.

We are a professional garbage truck manufactuerer and can produce all kinds of hydraulic lifting garbage truck.You can customize 1garbage truck 30 tons, we can satisfy all your requirements of garbage trucks in hungary.Please feel free to contact me If you have any questions and want to have garbage compactor truck price(see left contact information).
